Peavey Valve King Hum Reduction Modification

Extracted text from Peavey Valve King Hum Reduction Modification (Ocr-read)

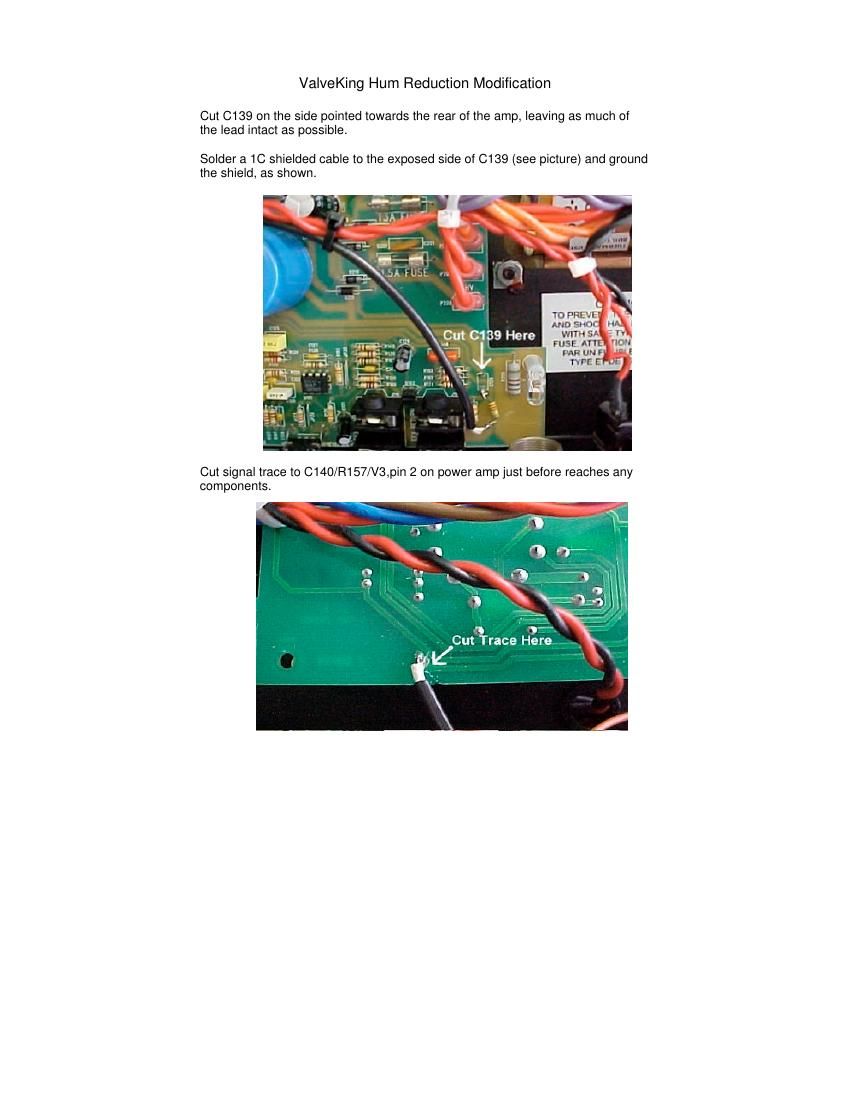

Page 1

Solder the other end of the shielded cable (see picture for length) to C140/R157/V3,pin 2. Remove the shield from the cable on the power amp side.
