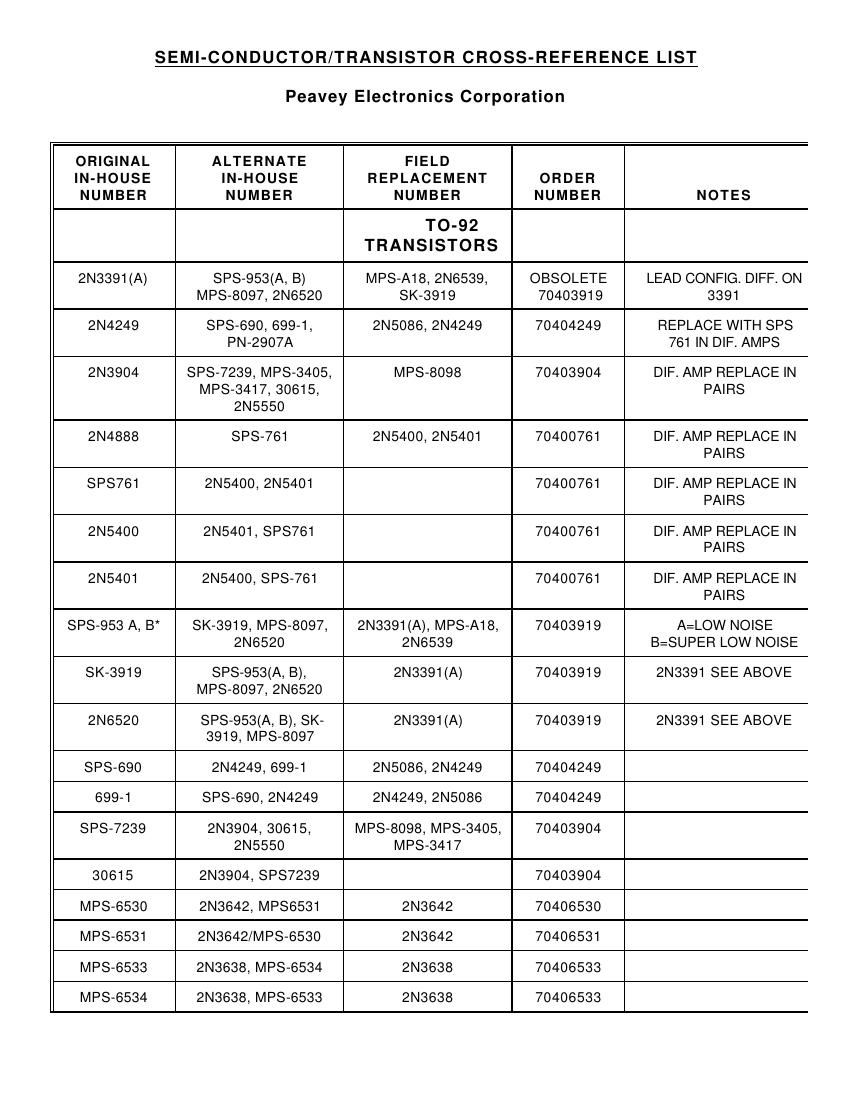

SEMI-CONDUCTOR/TRANSISTOR CROSS-REFERENCE LIST
Peavey Electronics Corporation
ORIGINAL ALTERNATE FIELD
IN-HOUSE IN-I-IOUSE REPLACEMENT ORDER
NUMBER NUMBER NUMBER NUMBER NOTES
TO-92
TRANSISTORS
2N3391(A) SPS»953(A, B) MPS-A18, 2N6539, OBSOLETE LEAD CONFIG. DIFF. ON
MPS»8097, 2N6520 SK-3919 70403919 3391
2N4249 SPS»690, 699-1, 2N5086, 2N4249 70404249 REPLACE WITH SPS
PN-2907A 761 IN DIF. AMPS
2N3904 SPS»7239, MPS-3405, MPS-8098 70403904 DIF. AMP REPLACE IN
MPS-3417, 30615, PAIRS
2N5550
2N4888 SPS-761 2N5400, 2N5401 70400761 DIF. AMP REPLACE IN
PAIRS
SPS761 2N5400, 2N5401 70400761 DIF. AMP REPLACE IN
PAIRS
2N5400 2N5401, SPS761 70400761 DIF. AMP REPLACE IN
PAIRS
2N5401 2N5400, SPS-761 70400761 DIF. AMP REPLACE IN
PAIRS
SPS-953 A, 3* SK»3919, MPS»8097, 2N3391 (A), MPS-A16, 70403919 A=LOW NOISE
2N6520 2N6539 B=SUPER LOW NOISE
SK-3919 SPS-953(A, 3), 2N3391 (A) 70403919 2N3391 SEE ABOVE
MPS»8097, 2N6520
2N6520 SPS-953(A, B), SK- 2N3391 (A) 70403919 2N3391 SEE ABOVE
3919, MPS-8097
SPS»690 2N4249, 699-1 2N5086, 2N4249 70404249
6991 SPS-690, 2N4249 2N4249, 2N5086 70404249
SPS»7239 2N3904, 30615, MPS-8098, MPS-3405, 70403904
2N5550 MPS-3417
30615 2N3904, SPS7239 70403904
MPS-6530 2N3642, MPS6531 2N3642 70406530
MPS-6531 2N3642/MPS-6530 2N3642 70406531
MPS-6533 2N3638, MPS-6534 2N3636 70406533
MPS-6534 2N3638, MPS-6533 2N3636 70406533
Page 2
Page 2
ORIGINAL ALTERNATE FIELD
IN-HOUSE | IN-HOUSE | REPLACEMENT | ORDER |
NUMBER NUMBER NUMBER NUMBER NOTES
2N4403 2N3638, 2N6533, 2N3638 70406533
2N6534
2N3644 2N3638, 2N6533, 2N3638 70406533
2N6534
2N4401 2N3842, 2N5630, 2N3642 70406531
2N6531
786 2SD-78 2SD-786E 70400786
A13 MPS-A13 MPS-A13 70400013 NPN DARLINGTON
A63 MPS-A63 MPS-A63 70400063 PNP DARLINGTON
1815 2801815 2801815 70401815 NPN TRANSISTOR
2878 2802878 2302878 70402878
5550 2N5550 2N5550 70405550
2N3638 MPS-6533, MPS-6534, 2N3638, 2N3644 70403638
2N3644,2N4403
2N3642 MPS»6530, MPS-6531 2N3642 70403642 3642 BACKSTAGE 30
(LIMITER)
TO-126
TRANSISTOR
SJE-5331 SJE-360, SJE-5919 MJE-243 CASE 77 70405331 LEAD CONFIG. MAY DIFFEI
SJE-5332 SJE-5920, FT-417B MJE-253, MJE-15029 70405332 LEAD CONFIG. MAY DIFFEI
MJE-243/4 SJE-5331 MJE»243, CASE 77 70405331 + & - 42 VOLT RAILS ONLY
M-10049 SJE-5331 70405331 SEE ABOVE.
MJE-253/4 SJE-5332 0ASE 77 70405332 SEE ABOVE.
SJE-5986 SJE-5332 CASE 77 70405332 SEE ABOVE.
SJE-7036 SJE-5332 CASE 77 70405332 SEE ABOVE.
SJE-360 SJE-5331 SEE ABOVE 70405331
SJE-6018 355-1 MJE»340, SJE-3517 70406018
SJE-6019 MJE-35O 70406019
SDS»7204 1034 2N6557, MPS-U10 70407204
SDS»7205 MPS-U60, BF-463, MPS-U60 70407205 TUBE DRIVER, REPLACE
90588, 0694
PAIR
