Peavey PV 6 USB Mixer Service Manual

This is the 21 pages manual for Peavey PV 6 USB Mixer Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 21

Extracted text from Peavey PV 6 USB Mixer Service Manual (Ocr-read)

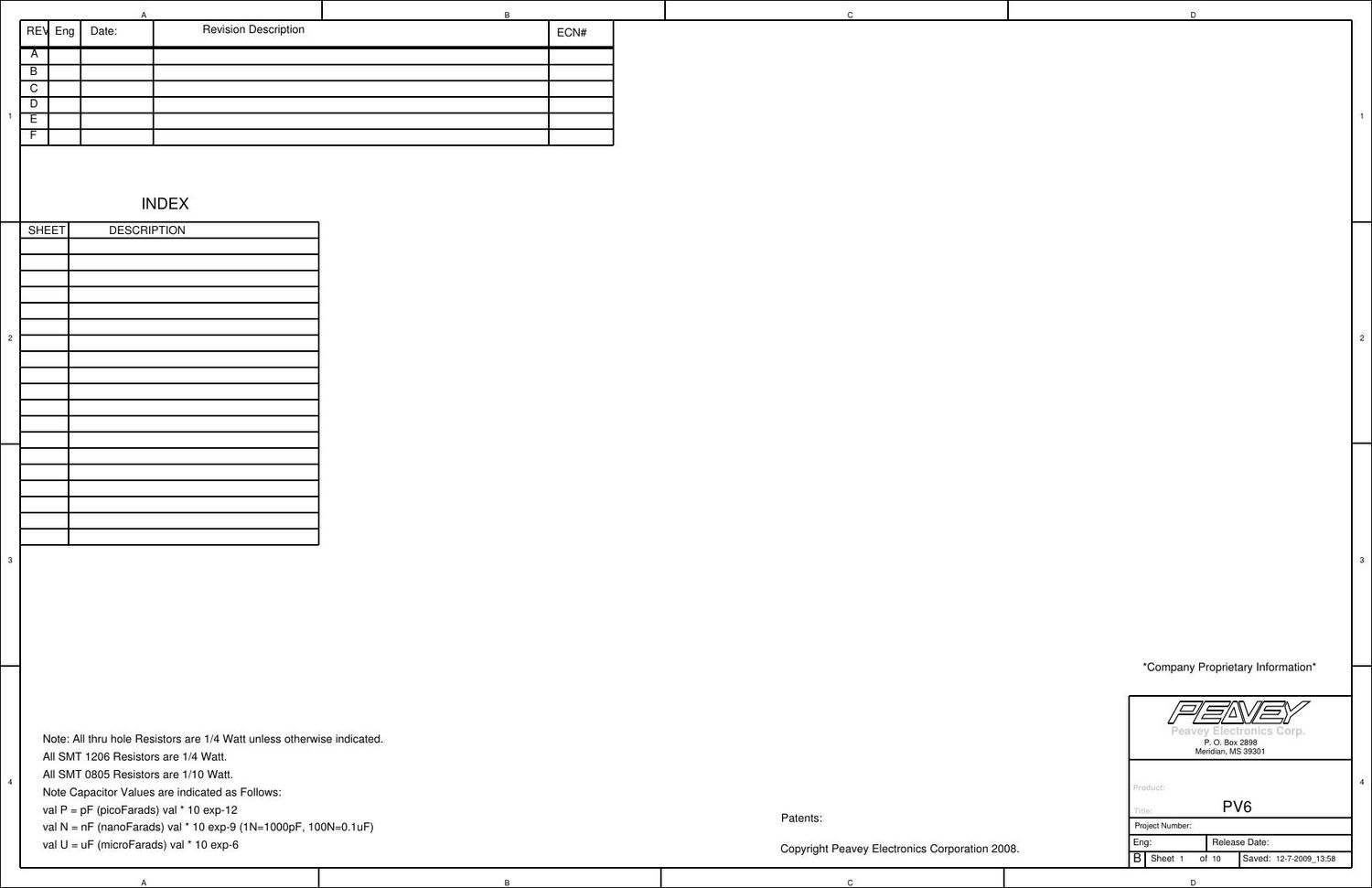

Page 1

Revision Description

INDEX

DESCRIPTION

Note: All thru hole Resistors are 1/4 Watt unless otherwise indicated.

All SMT 1206 Resistors are 1/4 Watt.

All SMT 0805 Resistors are 1/10 Watt.

Note Capacitor Values are indicated as Follows:

val P = pF (picoFarads) val * 1O exp-12

val N = nF (nanoFarads) val * 10 exp-9 (1 N=1000pF, 100N=0.1uF)
val U = uF (microFarads) val * 10 exp»6

Patents:

*Company Proprietary lntormation*

PEAVEV

P. O. Box 2898
Meridian, MS 39301

PV6

Project Number:

Eng: I Release Date:

Bl Sheet 1 of 10 ISaVed: 12777200971358
