Peavey Bandit 112 2007
This is the 22 pages manual for Peavey Bandit 112 2007.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Peavey Bandit 112 2007 (Ocr-read)

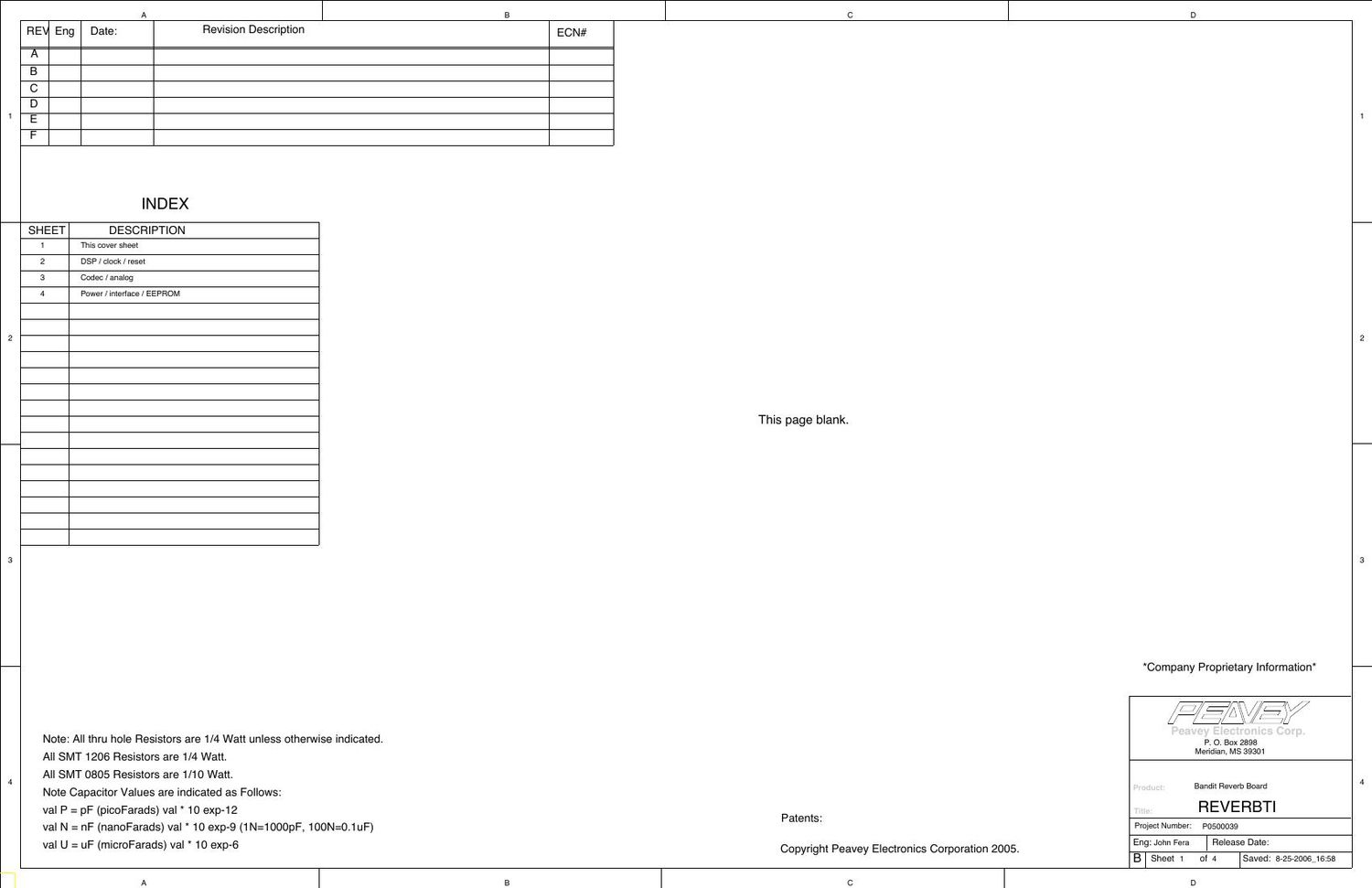

Page 1
REV Eng Date: Revision Description ECN#
A
B
C
D
E
F
IN D EX
SHEET DESCRIPTION
1 This cover sheet
2 DSP / clock / reset
3 Codec / analog
4 Power / interlace / EEPROM
Note: A thru hole Resistors are 1/4 Watt unless otherwise indicated.
All SMT 1206 Resistors are 1/4 Watt.
A|| SMT 0805 Resistors are 1/10 Watt.
Note Capacitor Values are indicated as Follows:
val P = pF (picoFarads) val * 10 exp-12
This page blank.
*Company Proprietary Information*
4/ /,444://.T\ M; (W/
//-/// i\.\////// 1' //
E #4 .344 L4
P. O. Box 2898
Meridian, MS 39301
Bandit Reverb Board
REVERBTI
Patents: _
val N = nF (nanoFarads) val * 1O exp-9 (1 N=1000pF, 100N=0.1uF) ProjectNumber: P0500039
val U = F (microFarads) val * 10 exp-6 Copyright Peavey Electronics Corporation 2005. Eng: M" Fem Release Dam:
B Sheet 1 of 4 Saved: 8v25»2006_16:58
A c D
