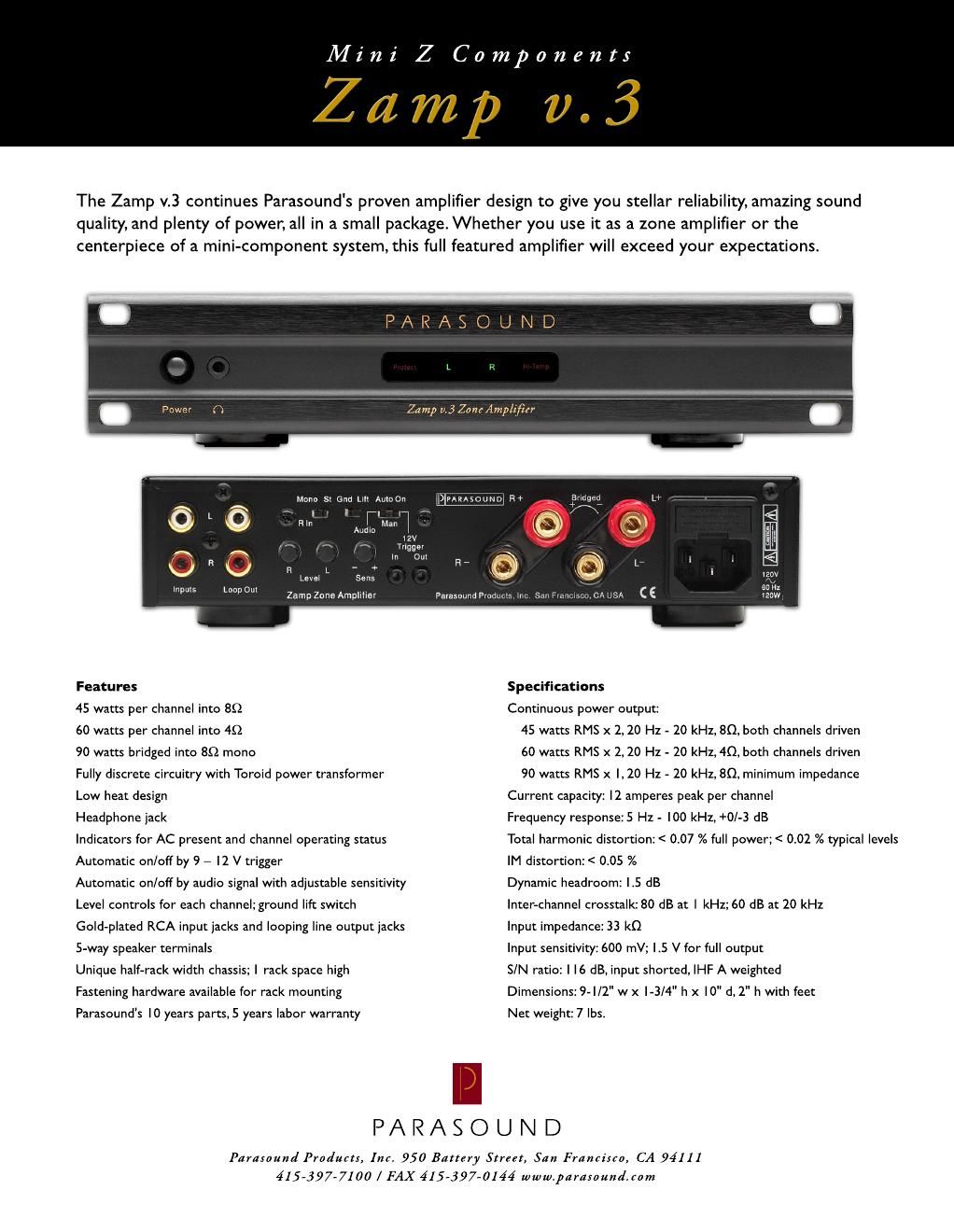

Parasound zamp mk3 brochure

Page 1

Mini Z Components

The Zamp v.3 continues Parasound's proven amplifier design to give you stellar reliability, amazing sound
quality, and plenty of power, all in a small package.Whether you use it as a zone amplifier or the
centerpiece of a mini-component system, this full featured amplifier will exceed your expectations.

PARASOUND

Zamp 11,,

Mano 51 Gun Lin Auioon

Features

45 watts per channel into 89

60 watts per channel into 4D

90 watts bridged into 8!! mono

Fully discrete circuitry with Toroid power transformer
Low heat design

Headphone jack

Indicators for AC present and channel operating status
Automatic on/off by 9 - l2 V trigger

Automatic on/off by audio signal with adjustable sensitivity
Level controls for each channel:ground lift switch
Gold-plated RCA input jacks and looping line output jacks
5-way speaker terminals

Unique half-rack width chassis; l rack space high
Fastening hardware available for rack mounting

Parasound's l0 years parts, 5 years labor warranty

ZorieAmpliffer

CAR/«so a + amuse:

Parasound Products, Inc San Fiancisco: CA USA C (

Specifications

Continuous power output:
45 watts RMS X 2. 20 Hz - 20 kHz,80. both channels driven
60 watts RMS X 2, 20 Hz - 20 kHz, 40, both channels driven
90 watts RMS x l,20 Hz - 20 kHz,80, minimum impedance

Current capacity: l2 amperes peak per channel

Frequency response: 5 Hz - l00 kHz, +0l-3 dB

Total harmonic distortion: < 0.07 % full power; < 002 % typical levels

IM distortion: < 005 %

Dynamic headroom: |,5 dB

Inter-channel crosstalk: 80 dB at | kHz; 60 dB at 20 kHz

Input impedance: 33 k0

Input sensitivity: 600 mV; |.5 V for full output

S/N ratio: I IS dB, input shorted, IHF A weighted

Dimensions: 9-l/2" w x l-3/4" h x l0" d, 2" h with feet

Net weight: 7 lbs

PARASOUND

Parasound Products, Int, 950 Battery Street, San Francisco, CA 94111
415-397»7100 / FAX 415-397»0144 wwwparasnundJom
