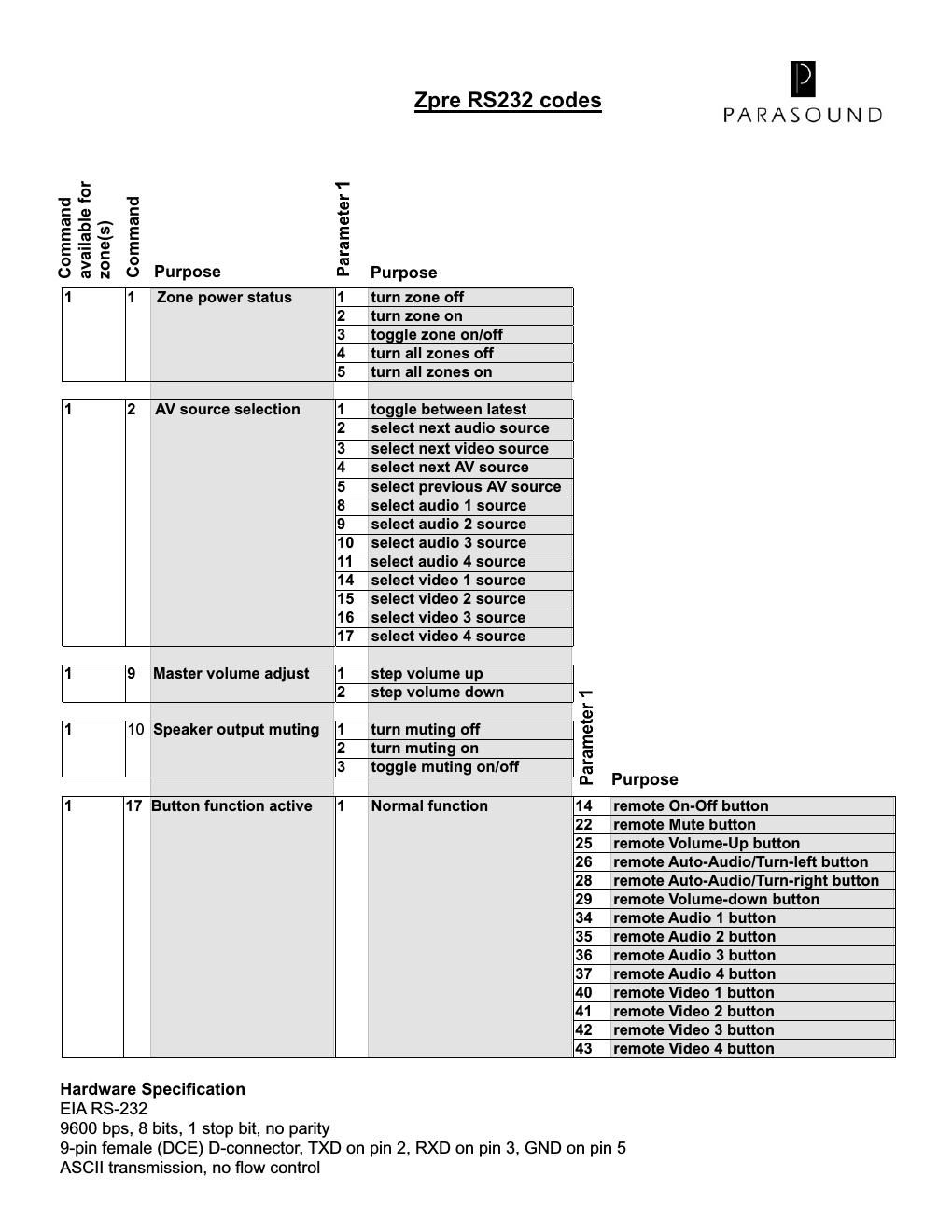

Zpre R8232 codes

PARASOUND

h \-
15 ~09 1': 3
C a) C +4
N E A N a:
E (5 L; E E
E g g E s
o > o o m
o a N 0 Purpose 0- Purpose
1 1 Zone power status 1 turn zone off
2 turn zone on
3 toggle zone onloff
4 turn all zones off
5 turn all zones on
1 2 AV source selection 1 toggle between latest
2 select next audio source
3 select next video source
4 select next AV source
5 select previous AV source
8 select audio 1 source
9 select audio 2 source
10 select audio 3 source
11 select audio 4 source
14 select video 1 source
15 select video 2 source
16 select video 3 source
17 select video 4 source
1 9 Master volume adjust 1 step volume up
2 step volume down \-
I-
o
1 1O Speaker output muting 1 turn muting off 5
2 turn muting on §
- a.
3 toggle muting onloff a Purpose
1 17 Button function active 1 Normal function 14 remote On-Off button
22 remote Mute button
25 remote Volume-Up button
26 remote Auto-AudiolTurn-left button
28 remote Auto-AudiolTurn-right button
29 remote Volume-down button
34 remote Audio 1 button
35 remote Audio 2 button
36 remote Audio 3 button
37 remote Audio 4 button
40 remote Video 1 button
41 remote Video 2 button
42 remote Video 3 button
43 remote Video 4 button

Hardware Specification
EIA RS-232

9600 bps, 8 bits, 1 stop bit, no parity

9-pin female (DCE) D-connector, TXD on pin 2, RXD on pin 3, GND on pin 5
ASCII transmission, no flow control
