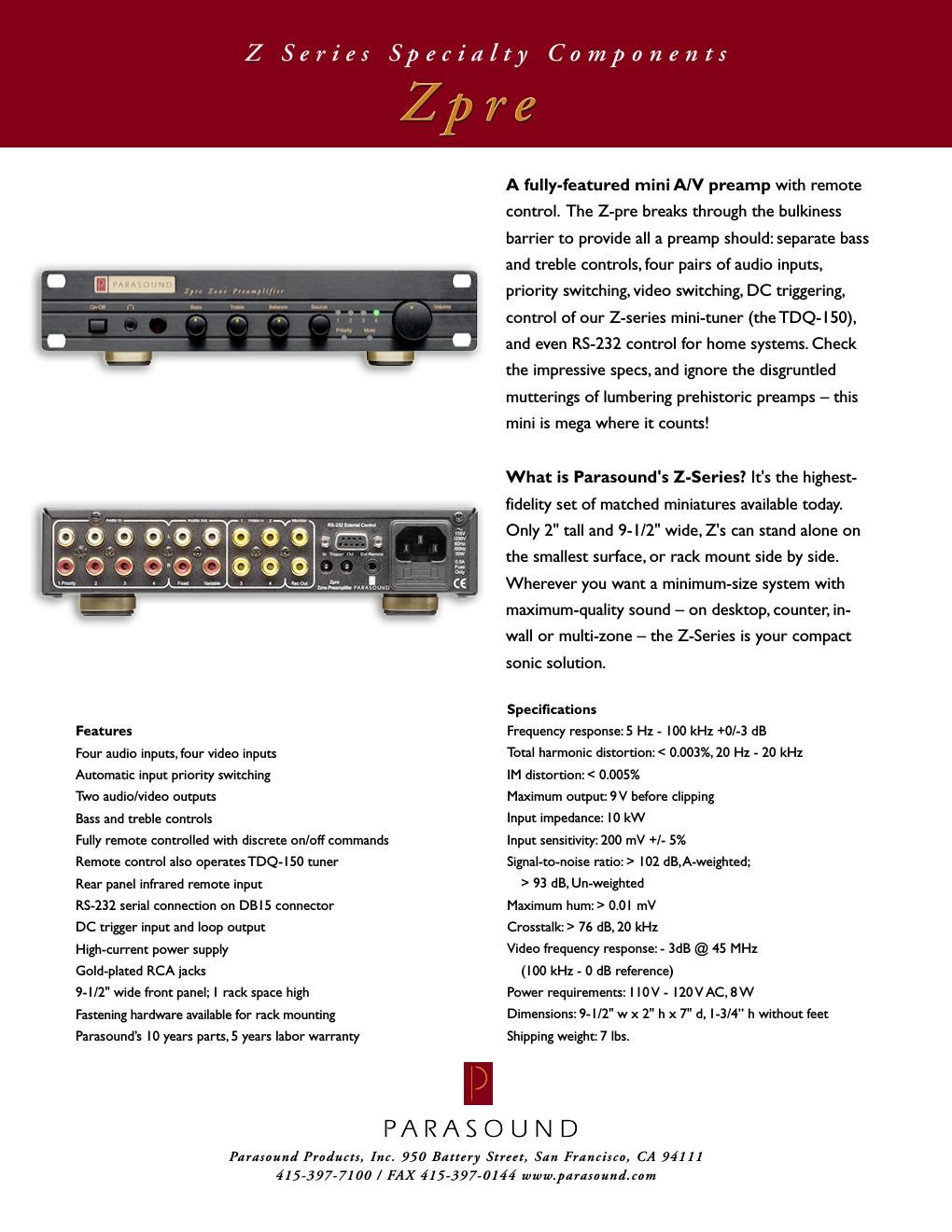

Parasound z pre brochure

Page 1

Z Series Specialty Components

Featu res

Four audio inputs, four video inputs

Automatic input priority switching

Two audio/video outputs

Bass and treble controls

Fully remote controlled with discrete on/off commands
Remote control also operates TDQ- l 50 tuner
Rear panel infrared remote input

RS-232 serial connection on DBIS connector

DC trigger input and loop output

High-current power supply

Gold-plated RCA jacks

9-l/2" wide front panel; I rack space high
Fastening hardware available for rack mounting
Parasound's IO years parts, 5 years labor warranty

A fully-featured mini AIV preamp with remote
control. The Z-pre breaks through the bulkiness
barrier to provide all a preamp should: separate bass
and treble controls, four pairs of audio inputs,
priority switching, video switching, DC triggering,
control of our Z-series mini-tuner (the TDQ- l 50),
and even RS-232 control for home systems. Check
the impressive specs,and ignore the disgruntled
mutterings of lumbering prehistoric preamps - this

mini is mega where it counts!

What is Parasound's Z-Series? It's the highest-
fidelity set of matched miniatures available today.
Only 2" tall and 9-l/2" wide,Z's can stand alone on
the smallest surface, or rack mount side by side.
Wherever you want a minimum-size system with
maximum-quality sound - on desktop, counter, in-
wall or multi-zone - the Z-Series is your compact

sonic solution.

Specifications
Frequency response:5 Hz - IOO kHz +0/-3 dB
Total harmonic distortion: < 0.003%, 20 Hz - 20 kHz
IM distortion: < 0.005%
Maximum output: 9V before clipping
Input impedance: l0 kW
Input sensitivity: 200 mV +/- 5°»
Signal-to-noise ratio: > |02 dB,A-weighted;
> 93 dB, Un-weighted
Maximum hum: > 0.0l mV
Crosstalk: > 76 dB, 20 kHz
Video frequency response: - 3dB @ 45 MHz
(l00 kHz - 0 dB reference)
Power requirements: I l0V - |20VAC,8W
Dimensions: 9-l/2" w x 2" h x 7" cl, l-3/4" h without feet

Shipping weight: 7 lbs.

PARASOUND

Parasound Products, Inc. 950 Battery Street, San Franristu, CA 94111
415-397-7100 / FAX 415-397-0144 www.parasnund.com
