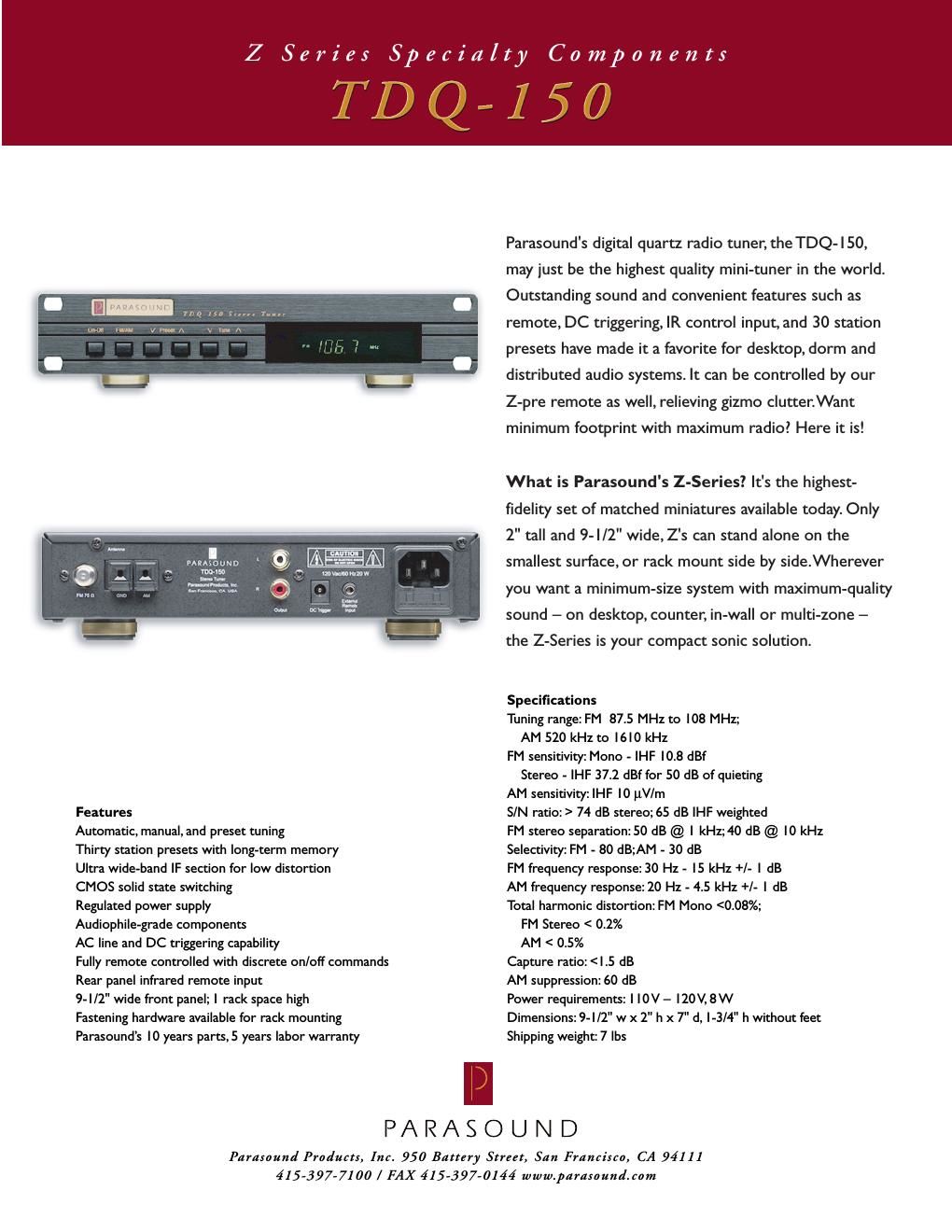

Parasound tdq 150 brochure

Page 1

Z Series Specialty Components

Features

Automatic, manual, and preset tuning

Thirty station presets with long-term memory
Ultra wide-band IF section for low distortion
CMOS solid state switching

Regulated power supply

Audiophile-grade components

AC line and DC triggering capability

Fully remote controlled with discrete on/off commands
Rear panel infrared remote input

9-l/2" wide front panel; I rack space high
Fastening hardware available for rack mounting
Parasound's IO years parts, 5 years labor warranty

Parasound's digital quartz radio tuner, the TDQ- | 50,
may just be the highest quality mini-tuner in the world.
Outstanding sound and convenient features such as
remote, DC triggering, IR control input, and 30 station
presets have made it a favorite for desktop, dorm and
distributed audio systems. It can be controlled by our
Z-pre remote as well. relieving gizmo cluttenWant

minimum footprint with maximum radio? Here it is!

What is Parasound's Z-Series? It's the highest-
fidelity set of matched miniatures available today. Only
2" tall and 9-I/2" wide, Z's can stand alone on the
smallest surface, or rack mount side by side.Wherever
you want a minimum-size system with maximum-quality
sound - on desktop, counter, in-wall or multi-zone -

the Z-Series is your compact sonic solution.

Specifications
Tuning range: FM 87.5 MHz to |08 MHz;
AM 520 kHz to [610 kHz
FM sensitivity: Mono - lHF l0.8 dBf
Stereo - lHF 37.2 dBf for 50 dB of quieting
AM sensit ty: lHF l0 uV/m
SIN ratio: > 74 dB stereo; 65 dB lHF weighted
FM stereo separation: 50 dB @ l kHz; 40 dB @ l0 kHz
Selectivity: FM - 80 dB;AM - 30 dB
FM frequency response: 30 Hz - l5 kHz +/- | dB
AM frequency response: 20 Hz - 4.5 kHz +/- l dB
Total harmonic distortion: FM Mono <0.08%;
FM Stereo < 0.2%
AM < 0.5%
Capture ratio: < l .5 dB
AM suppression: 60 dB
Power requirements: I l0V- |20V,8W
Dimensions 9-l/2" w x 2" h x 7" d, [-3] h without feet
Shipping weight: 7 lbs

PARASOUND

Puraumnd Products, Inc. 950 Battery Street, San Franciscu, CA 94111
415-397-7100 / FAX 415-397-0144 www.parawund.com
