Parasound t 3 e brochure

This is the 1 pages manual for parasound t 3 e brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 1
parasound t 3 e brochure

Extracted text from parasound t 3 e brochure (Ocr-read)

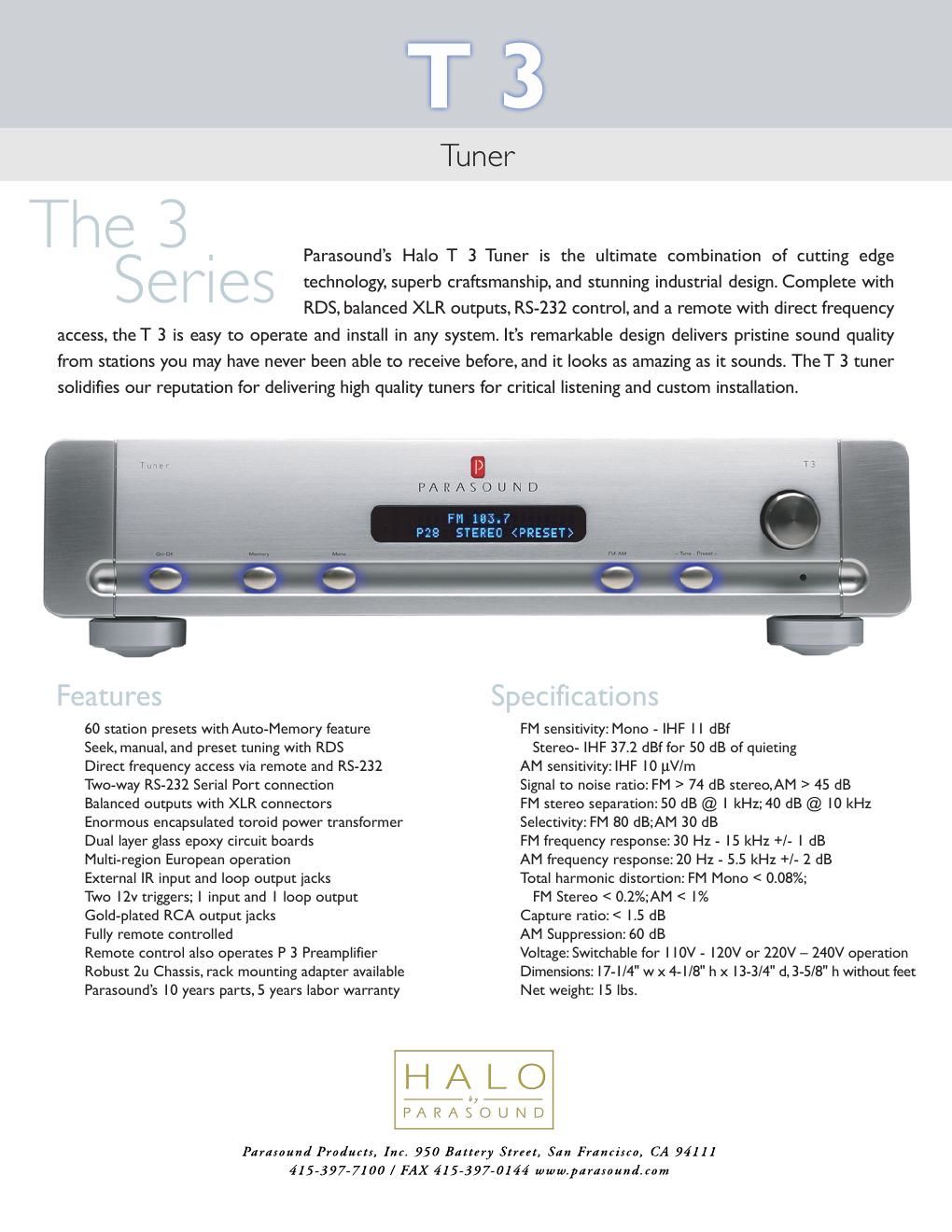

Page 1

T33

Tuner

Parasounds Halo T 3 Tuner is the ultimate combination of cutting edge
technology, superb craftsmanship, and stunning industrial design. Complete with
RDS, balanced XLR outputs, RS-232 control, and a remote with direct frequency
access, the T 3 is easy to operate and install in any system. Its remarkable design delivers pristine sound quality
from stations you may have never been able to receive before, and it looks as amazing as it sounds. TheT 3 tuner

solidifies our reputation for delivering high quality tuners for critical listening and custom installation.

PARASOUND

6O station presets with Auto-Memory feature
Seek, manual, and preset tuning with RDS

Direct frequency access via remote and RS-232
Two-way RS-232 Serial Port connection

Balanced outputs with XLR connectors

Enormous encapsulated toroid power transformer
Dual layer glass epoxy circuit boards

Multi-region European operation

External IR input and loop output jacks

Two |2v triggers; | input and | loop output
Gold-plated RCA output jacks

Fully remote controlled

Remote control also operates P 3 Preamplifier
Robust 2u Chassis, rack mounting adapter available
Parasounds [0 years parts, 5 years labor warranty

FM sensitivity: Mono - |HF | | dBf
Stereo- IHF 37.2 dBf for 50 dB of quieting
AM sensitivity: lHF IO uV/m
Signal to noise ratio: FM > 74 dB stereo,AM > 45 dB
FM stereo separation: 50 dB @ | kHz; 40 dB @ IO kHz
Selectivity: FM 80 dB;AM 30 dB
FM frequency response: 30 Hz - l5 kHz +/- | dB
AM frequency response: 20 Hz - 5.5 kHz +/- 2 dB
Total harmonic distortion: FM Mono < 0.08%:
FM Stereo < 0.2%;AM < |%
Capture ratio: < |.5 dB
AM Suppression: 60 dB
Voltage: Switchable for | IOV - |20V or 220V - 240V operation
Dimensions: l7-l/4" w x 4-l/8" h x l3-3l4" d, 3-5/8" h without feet
Net weight: l5 lbs.

LAQ

,
PARASOUND

Paraxuunu' Products, Inc. 950 Hattzry Street, San Frantisca, CA 94111
415-397-7100 / FAX 415-397-0144 wwwparasaunicam
