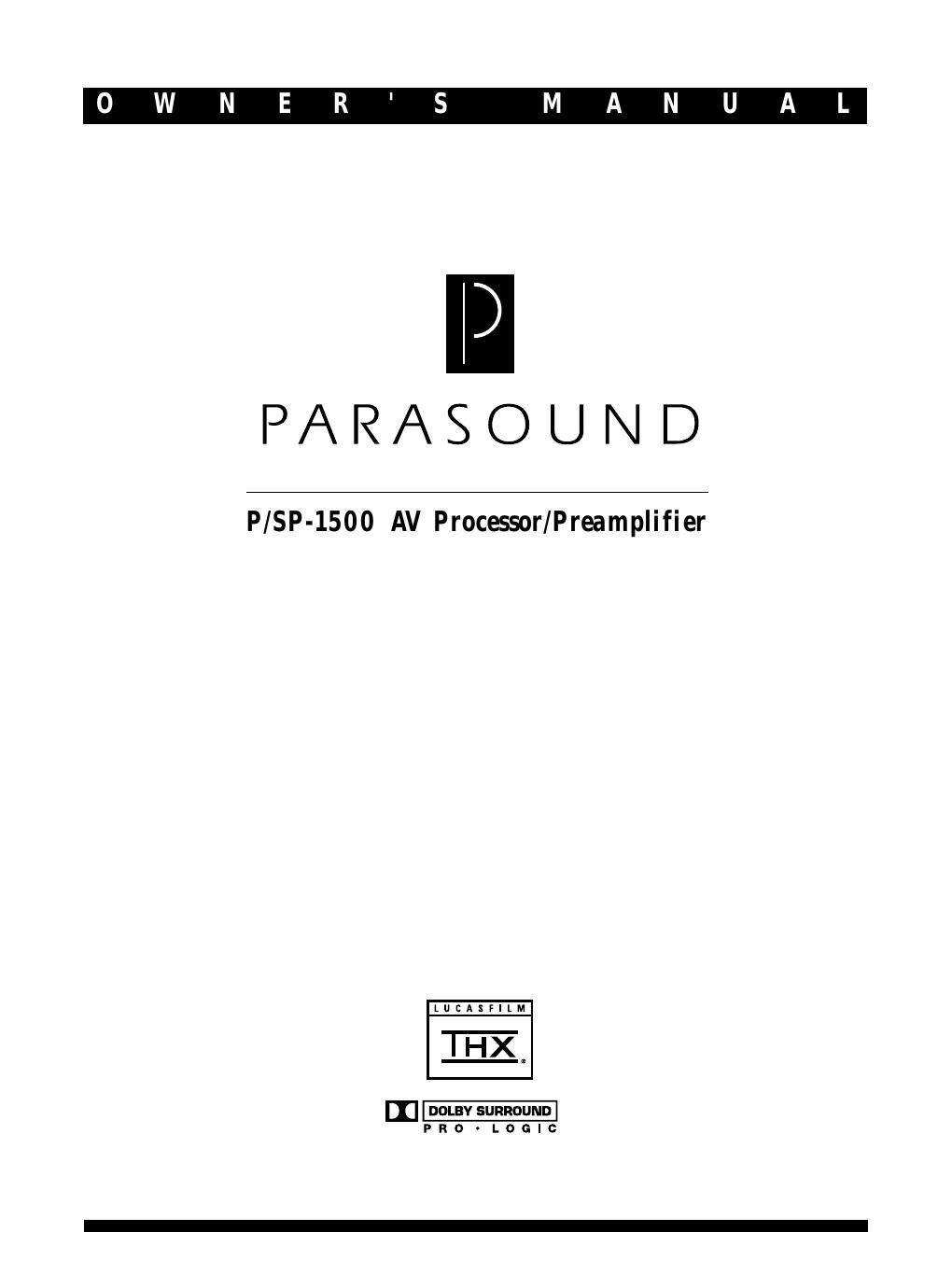

Parasound psp 1500 owners manual
This is the 21 pages manual for parasound psp 1500 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from parasound psp 1500 owners manual (Ocr-read)
Page 1
2 P/SP-1500 Owner's Manual Table of Contents Introduction ................................. 2 Unpacking and Placement ........................... 2 Setting up Your Home Theater .......................... 3 Home Theater Setup Diagrams ......................... 4 Making Connections to Your P/SP-1500 .......................... 5 P/SP-1500 Rear Panel Connections ............................ 6 P/SP-1500 Front Panel and Remote Control .............................. 9 Operating your P/SP-1500 .................................. 10 Calibrating your Home Theater ................................. 14 Using the Trim Function for Temporary Level Adjustment ..................... 16 Maintaining Your P/SP-1500 ...................................... 17 Troubleshooting ......................................... 17 Specifications .............................................. 19 Special Features ................................................ 20 Rewiring for 220 Volt Operation .................................... 20 Limited Warranty ................................................ 21 Introduction Congratulations on your purchase of this precision audio/video component and thank you for your selection of Parasound. We designed your P/SP-1500 AV Processor/Preamplifier to be the heart of the finest home theater systems and to provide you with years of listening enjoyment. Easy to use on-screen display and an intuitive remote control makes your P/SP-1500 one of the most user-friendly processor/control centers available. Six different processing modes including Dolby Pro Logic and THX Home Cinema, provide you with a wide variety of listening experiences. To keep pace with the latest processing technology, your P/SP-1500 also has a DB-25 connector on its rear panel to accommodate an outboard 5.1 digital processor. Please take the time now to read these instructions thoroughly to fully appreciate the numerous capabilities of your P/SP-1500 AV Processor/Preamplifier. Unpacking Carefully unpack your P/SP-1500 AV Processor/Preamplifier and remove all the enclosed accessories including the remote control and detachable AC cord. Be sure to inspect the unit for any possible shipping damage. If you see any, contact your Parasound Dealer immediately. Be sure to save both cartons and the packing inserts for future transport and always pack the inner carton into a protective outer carton before shipment. Before you proceed, find the serial number located on the rear panel of your unit. Record it here for future reference. ___________ Placement of Your P/SP-1500 Install your P/SP-1500 near all of your source equipment to allow for reasonably short interconnects. Keep your P/SP-1500 out of direct sunlight because it could interfere with the remote control sensor. You should also keep the unit away from heat sources such as hot air ducts or radiators. You may wish to reserve about two to three inches of space for the addition of the companion Parasound P/DD-1500 Dolby Digital (AC-3) Decoder. Your P/SP-1500 will occupy two rack spaces (3 1/2 inch) in a standard equipment rack. The optional P/DD-1500 occupies a single rack space (1 3/4 inch).
Page 2
P/SP-1500 Owner's Manual 3 Setting Up Your Home Theater System Refer to Diagram on Page 4 Speaker Placement Proper speaker placement is essential for optimum performance of your home theater system. Improper placement of speakers can produce an unnatural sound and greatly diminish the home theater experience. Here are some basic guidelines for speaker placement based upon idealized conditions. However, it may be necessary to make compromises for furniture, windows, doorways, and other aesthetic reasons. Front Speakers Try to locate your front left and right speakers an equal distance from your television monitor or projection screen. Ideally, your viewing/listening position should be at the point of an equilateral triangle with the left and right speakers at the other points. Center Speaker The center speakers main function is to reproduce dialog and to join the sonic image from the speakers with the visual image on the screen. It is best to place your center speaker directly above or below the television monitor for a more realistic effect. The distance from your listening position to the center channel speaker should be the same distance as from your listening position to the left and right speakers. This necessitates placing the center speaker somewhat behind the left and right speakers. This placement assures the sound from all three front speakers will arrive at your listening position at precisely the same time. If you are using a direct view television with a picture tube, we strongly recommend a shielded center channel speaker if you intend to locate it near the monitor. The magnetic field of an unshielded speaker will cause an extreme discoloration of most direct view TV screens. If you are placing your front speakers behind a high-quality perforated projection screen, locate your center speaker at the same height as your left and right speakers. Conventional Surround Speakers Surround speaker placement is a little more flexible than the front speakers. In the Dolby Pro Logic and even Dolby Digital (AC-3) mode surround speakers are intended to create a more diffuse ambient effect rather than a precise sonic image. To avoid drawing your attention away from the action on the screen, you should not be able to localize the sound coming from your surround speakers. Therefore, you should try to avoid pointing the surround speakers directly toward your listening position and place them behind you and at least three feet above your ear level when you are seated. You may even want to try aiming them at the wall or ceiling for a greater ratio of reflected to direct sound to help reduce localization. Experimentation with surround speaker placement is often required to yield optimum results. THX Dipole Surround Speakers THX certified dipole surround speakers are designed for superior surround channel performance. If you are using THX Home Cinema front and rear firing dipole surround speakers, locate them at least two feet above and to the sides of your listening area. This places you in the null of the dipole speakers to minimize localization of the surround speakers. Subwoofer The best way to position your subwoofer is to first hook it up and place it close to your listening position. Next, stand in various spots within your room and find the location that will give you the strongest and most balanced bass without excessive boominess. Once you have found the optimum location, simply relocate the subwoofer to that spot.
