Parasound pdd 1550 owners manual
This is the 4 pages manual for parasound pdd 1550 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from parasound pdd 1550 owners manual (Ocr-read)

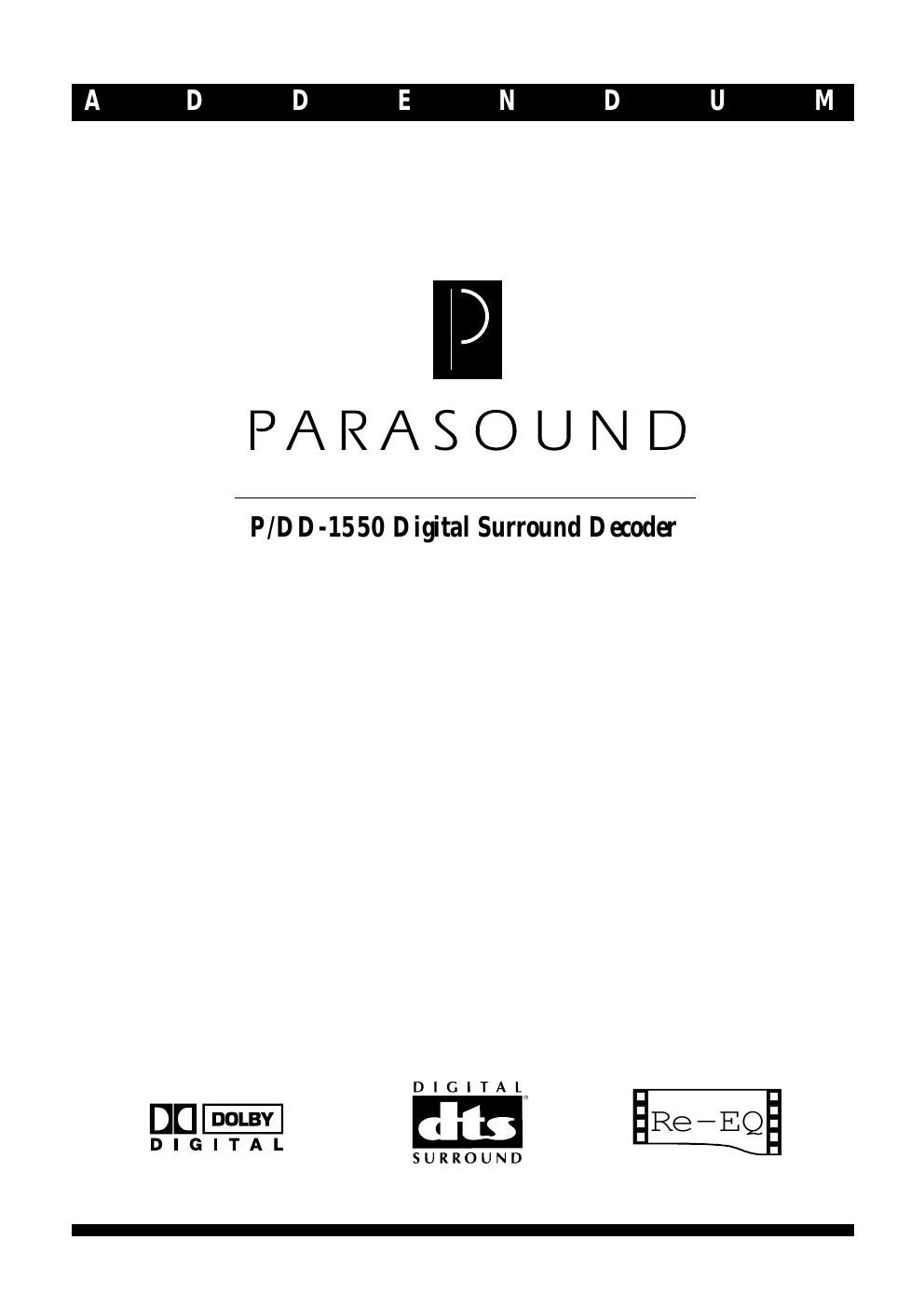

Page 1
2 Delay Time On-Off P/DD-1550 Digital Surround Decoder RF Toslink 1 2Coaxial 2 Channel Dialog Norm Auto Format Pro Logic 5.1 Channel Dynamic Range Re-EQ Cinema Delay Center mS dB DTS Re-EQ LFE L C R LS RS P/DD-1550 Digital Surround Decoder Parasound Products, Inc. San Francisco, CA USA Power Consumption: 70 WAC 120 V 60 Hz CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN Toslink Coaxial 2 Coaxial 1 RF Input Digital Inputs Manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby Laboratories, Inc. All Rights Reserved Manufactured under license from LucasFilm Ltd.U.S. Patent Numbers 5,043,970; 5,189,703; and 5,222,059. Foreign patents pending. Re -EQ 2 Channel Audio Output 5.1 Analog Output & Control LFE/ Bass Management LS / RS Channels Small Speakers Bass Filter On Large Speakers Bass Filter Off Center Channel Speaker Subwoofer On, No Filter Subwoofer Output = LFE Only Subwoofer Output On, No Filter Sub Out = LFE + 5 Channels Mixed Subwoofer Output Off LFE & C, LS, RS, Bass Frequencies Mixed with L, R Channels No Speaker Phantom ModeSmall Speaker Bass Filter On External Remote Re -EQ TM Manufactured under license from DTS Technology LLC. Additionally licensed under the following US Patent 5,451,942 & National Patent applications derived from PCT/US95/00959. Additional U.S. and foreign patents pending. "DTS" "digital surround", and "coherent acoustics" logos are trademarks of DTS technology LLC. All rights reserved. CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOTREMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
