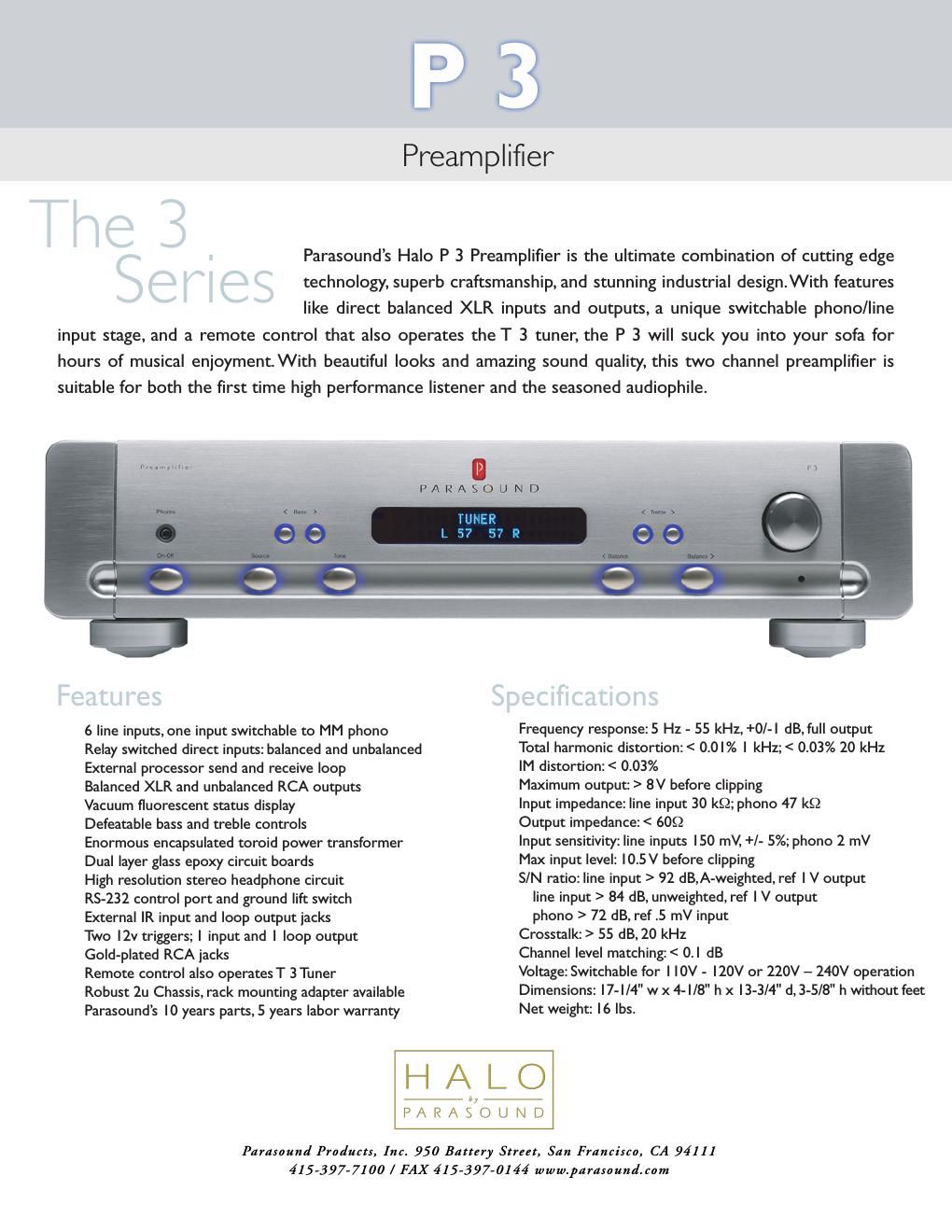

Page 1
@353
Preamplifier
Parasounds Halo P 3 Preamplifier is the ultimate combination of cutting edge
technology, superb craftsmanship, and stunning industrial design.With features
like direct balanced XLR inputs and outputs, a unique switchable phono/line
input stage, and a remote control that also operates theT 3 tuner, the P 3 will suck you into your sofa for
hours of musical enjoyment.With beautiful looks and amazing sound quality, this two channel preamplifier is
suitable for both the first time high performance listener and the seasoned audiophile.
6 line inputs, one input switchable to MM phono
Relay switched direct inputs: balanced and unbalanced
External processor send and receive loop
Balanced XLR and unbalanced RCA outputs
Vacuum fluorescent status display
Defeatable bass and treble controls
Enormous encapsulated toroid power transformer
Dual layer glass epoxy circuit boards
High resolution stereo headphone circuit
RS-232 control port and ground lift switch
External IR input and loop output jacks
Two |2v triggers; | input and | loop output
Gold-plated RCA jacks
Remote control also operatesT 3 Tuner
Robust 2u Chassis, rack mounting adapter available
Parasound's I0 years parts, 5 years labor warranty
Frequency response: 5 Hz - 55 kHz, +0l-I dB, full output
Total harmonic distortion: < 0:0|% | kHz; < 003% 20 kHz
|M distortion: < 003%
Maximum output: > 8V before clipping
Input impedance: line input 30 k9; phono 47 k9
Output impedance: < 609
Input sensitivity: line inputs I50 mV, +/- 5%; phono 2 mV
Max input level: |0:5V before clipping
S/N ratio: line input > 92 dB.A-weighted, ref | V output
line input > 84 dB, unweighted, ref | V output
phono > 72 dB, ref .5 mV input
Crosstalk: > 55 dB, 20 kHz
Channel level matching:< 0.| dB
Voltage: Switchable for | IOV - |20V or 220V - 240V operation
Dimensions: |7-|/ " wx4-ll " h x l3-3/ " d, 3-5/ " h without feet
Net weight: I6 lbs.
Mg
,
PARASOUND
Paramuna' Products, Inc. 950 Battery Street, San Francisco, CA 94111
415-397-7100 / FAX 415-397-0144 www.parasound.com
