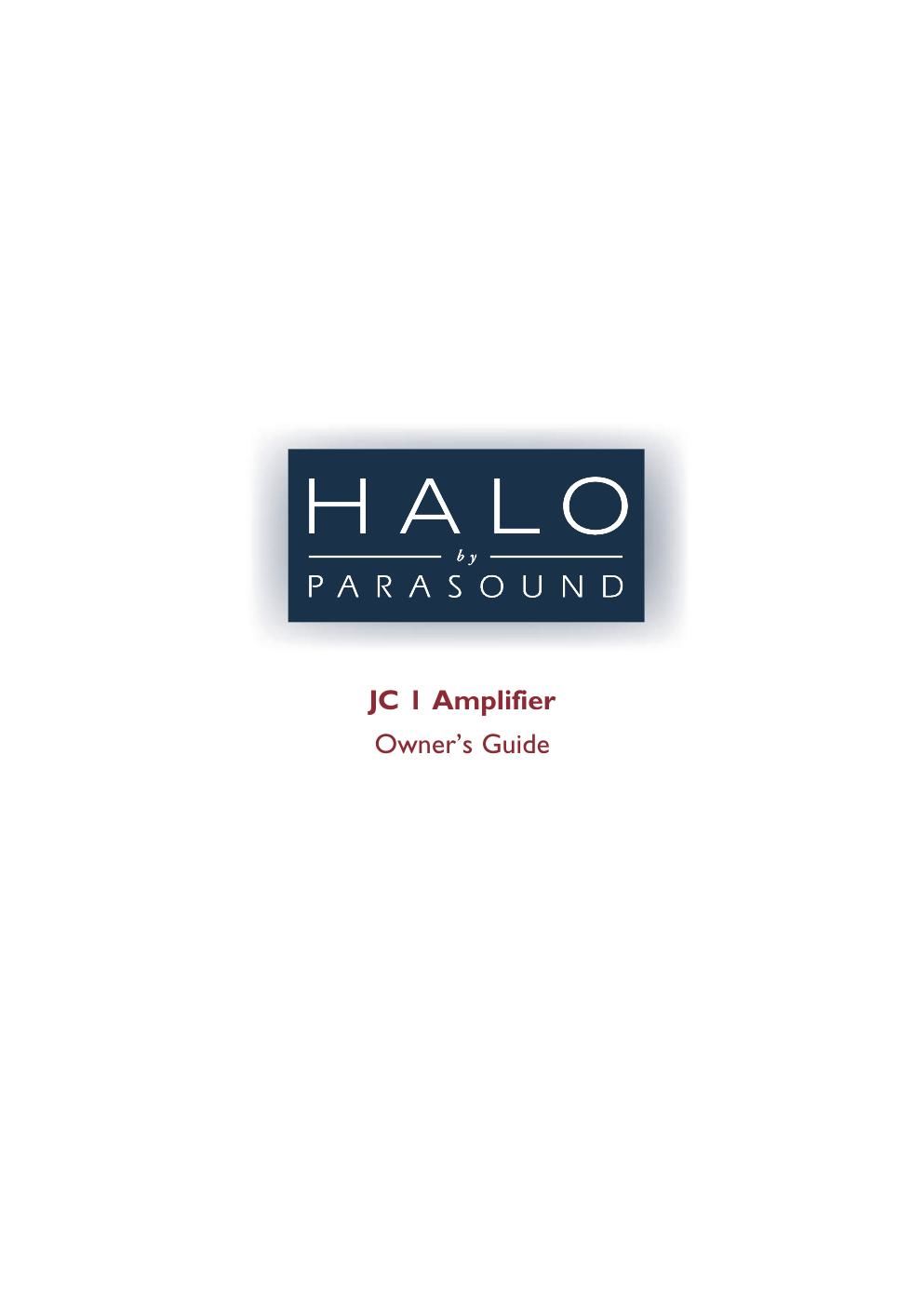

Parasound jc 1 owners manual
This is the 22 pages manual for parasound jc 1 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from parasound jc 1 owners manual (Ocr-read)
Page 1
1 THANK YOU! Congratulations and Thank You for Choosing Parasound Your new Parasound Halo Series JC 1 mono block power amplifier represents the latest advancements in amplifier technology. The JC 1 was designed by CTC builders and it uses higher quality parts and achieves higher performance than any amplifier weve made since Parasound was founded in 1981. Were proud to offer you this exceptional audio component, knowing that it will bring you many years of enjoyment and dependability. Here at Parasound, we design our products to perform at a higher level of flexibility and sonic performance than you may have expected. We encourage you to read this entire manual to learn all the features and capabilities of your new JC 1 Amplifier. If youre eager to get up and running right away, simply follow the basic step-by-step instructions to connect and operate the JC 1. If you want to learn more about the technical and design aspects of your JC 1, refer to the Technically Speaking and Design Overview sections in the back of the manual. If you run into difficulties, the Troubleshooting Chart should help you quickly remedy the problem. We appreciate you taking the time to read these instructions and thank you for selecting Parasound for your listening pleasure. The Parasound Staff Unpacking Your JC 1 Unpack your JC 1 from the shipping carton, remove the enclosed AC power cord, the small L shaped metal rack mounts, and the gray control wire with a sub-mini 2.5 mm plug on each end. (This is the trigger connection wire). While you are unpacking your new amplifier, inspect it thoroughly for possible shipping damage. If you see any, contact your Parasound dealer right away. Be sure to save and store both the inner and outer cartons and the packing inserts for possible future transport. To save room for storage, you can cut the seams on the bottom of the cartons and flatten them. Keeping Records for Future Reference Record the serial number located on the bottom of your JC 1 in the space below. Also note your Parasound Dealers name and phone number. We recommend that you keep your purchase receipt with this manual and store them both in a safe place. You may need to refer to this information sometime in the future. Parasound JC 1 Amplifier Serial #: ____________________________________ Parasound Dealer: ___________________________________________________ Phone Number______________________________________________________ Date of Purchase: ___________________________________________________ YOU SHOULD KNOW There is no Parasound warranty for this unit if it was not purchased from an Authorized Parasound Dealer. Investigate any claims of warranty coverage made by unauthorized dealers very carefully as you will need to depend entirely upon the dealer, and NOT upon Parasound. Unauthorized dealers may lack the capability to arrange repairs of Parasound equipment. Authorized Parasound Dealers are listed at www.parasound.com or you can call 415-397-7100 between 8:30 am and 4:30 pm Pacific time. A missing or tampered serial number could indicate that this unit was stolen or sold by an unauthorized dealer. You should return it to your dealer immediately for replacement or a full refund.
Page 2
PLACEMENT GUIDELINES FOR YOUR JC 1 _________________________________________________________________________________ CONNECTING A STEREO PREAMPLIFIER OR A SURROUND CONTROLLER TO THE BALANCED INPUT ON YOUR JC 1 _________________________________________________________________________________ CONNECTING A STEREO PREAMPLIFIER OR A SURROUND CONTROLLER TO THE UNBALANCED INPUT ON YOUR JC 1 _________________________________________________________________________________ CONNECTING A SPEAKER TO YOUR JC 1 _________________________________________________________________________________ MANUAL AND AUTOMATIC TURN ON-OFF OPTIONS _________________________________________________________________________________ CONNECTING AN EXTERNAL DC SOURCE FOR AUTOMATIC TURN ON-OFF _________________________________________________________________________________ CONNECTING THE JC 1 TO TRIGGER ANOTHER COMPONENT _________________________________________________________________________________ UNDERSTANDING THE INDICATORS ON THE JC 1 _________________________________________________________________________________ CONNECTING THE AC POWER CORD _________________________________________________________________________________ MAINTAINING YOUR JC 1 _________________________________________________________________________________ TROUBLESHOOTING GUIDE _________________________________________________________________________________ SERVICING YOUR JC 1 _________________________________________________________________________________ TECHNICALLY SPEAKING _________________________________________________________________________________ PARASOUND JC 1 DESIGN OVERVIEW _________________________________________________________________________________ PARASOUND JC 1 SPECIFICATIONS _________________________________________________________________________________ 1 TABLE OF CONTENTS JC 1 Amplifier 13 12 17 15 11 10 9 8 7 5 4 2 1 3 6
