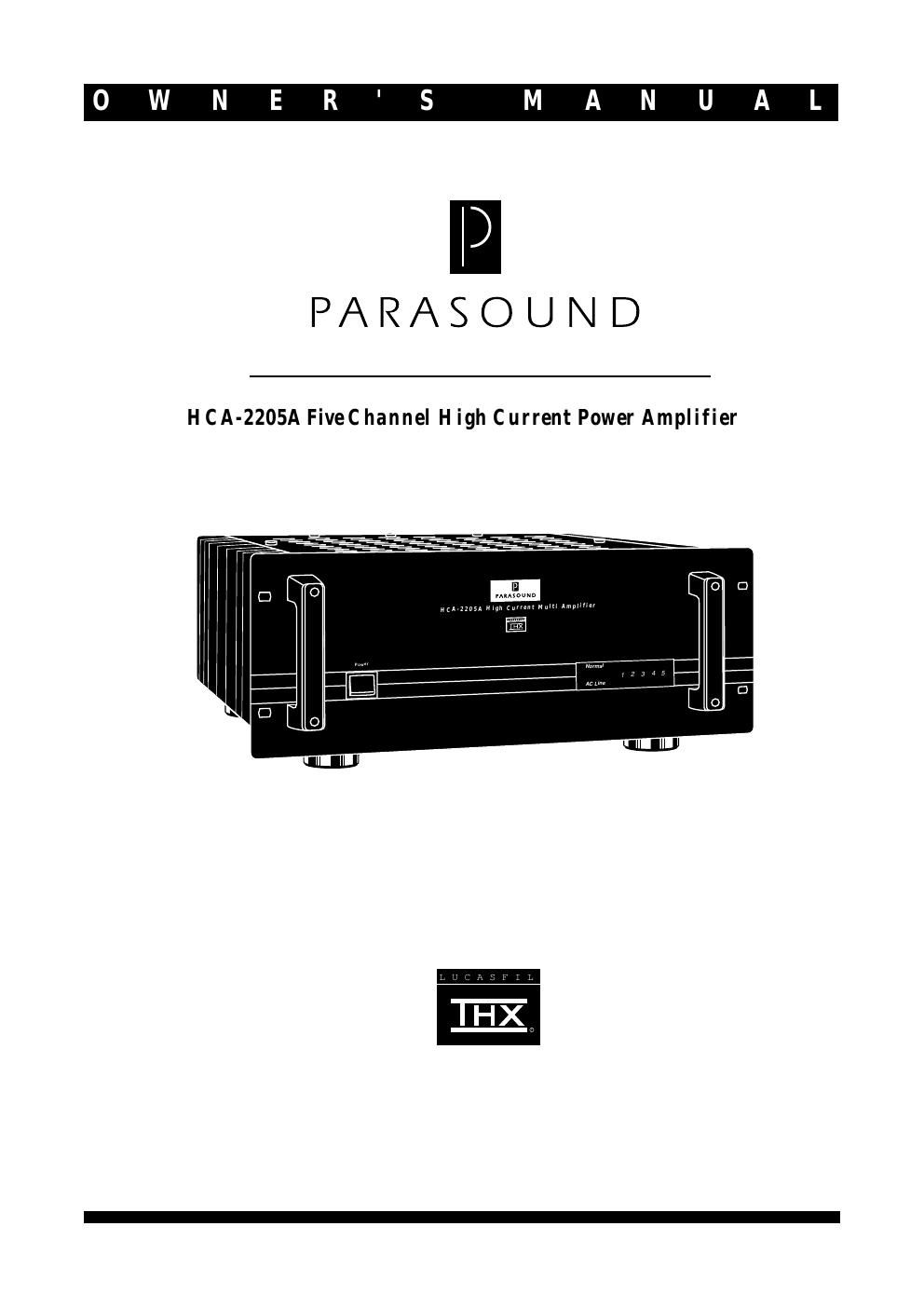

Parasound hca 2205 a owners manual
This is the 11 pages manual for parasound hca 2205 a owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from parasound hca 2205 a owners manual (Ocr-read)
Page 1
-2- Table of Contents Important Safety Instructions ......................... 3 Figure #1 HCA-2205A Front and Rear Panel Drawings ........... 4 Introduction ........................... 5 Installing and Rack Mounting Your Amplifier ............... 5 Ventilation Requirements for Your Amplifier .............. 5 Input Connections for the HCA-2205A .................... 6 Speaker Connections .......................... 6 AC Power Connections and AC Grounding ................... 6 DC Trigger Connection ............................ 7 Operating Your HCA-2205A ............................. 7 Maintaining Your Parasound Amplifier ....................... 8 In Case of Trouble ..................................8 Special Features ......................................9 Parasound HCA-2205A Specifications ........................ 10 Parasound Limited Warranty (USA only) ....................... 11 The Parasound HCA-2205A is manufactured under license from Lucasfilm Ltd. Lucasfilm and THX are trademarks of Lucasfilm Ltd. LUCASFILM R
Page 2
-3- IMPORTANT SAFETY INSTRUCTIONS The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of Òdangerous voltageÓ inside the product that may constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL 1. Read Instructions Ñ Read all the safety and operating instructions before operating this product. 2. Retain Instructions Ñ Retain safety and operating instructions for future reference. 3. Heed Warnings Ñ Adhere to all warnings on the product and in the operating instructions. 4. Follow Instructions Ñ Follow all operating and use instructions. 5. Cleaning Ñ Unplug this product from the wall outlet before cleaning. Use a damp cloth for cleaning. Clean the outside of the product only. 6. Attachments Ñ Do not use attachments that are not recommended by the product manufacturer; they may be hazardous. 7. Water and Moisture Ñ Do not use this product near water. 8. Accessories Ñ Do not place this product on an unstable cart or stand. The product may fall causing bodily injury and damage to the product. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart to overturn. 9. Ventilation Ñ Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. 10. Power Sources Ñ Operate this product only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. This product is equipped with a three-prong grounding plug. This plug will only fit into a grounding power outlet. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug. 11. Power Cord Protection Ñ Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. 12. LightningÑ Unplug the unit from the wall outlet for added protection during a lightning storm and when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power line surges. 13. Overloading Ñ Do not overload wall outlets or extension cords. This can result in a fire or electric shock. 14. Inserting Objects into Unit - Never push objects of any kind into this product through any openings; they may touch dangerous voltage points or short out parts that could result in fire or electric shock. 15. Servicing Ñ Do not attempt to repair or service this product yourself. Opening or removing covers may expose you to dangerous voltage and other hazards. Refer all servicing to qualified service personnel. 16. Damage Requiring Service Ñ Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) If the power-supply cord or plug is damaged. b) If liquid has been spilled into the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following the operating instructions. e) If the product has been dropped or damaged in any way. f) If the product exhibits a distinct change in performance. 17. Replacement Parts Ñ When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer. Unauthorized substitutions may result in fire, electric shock, and other hazards. 19. Safety Check Ñ Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 20. Wall or Ceiling Mounting Ñ Mount the product to a wall or ceiling only as recommended. 21. Heat Ñ The product should be situated away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.
