Parasound dac 1500 owners manual

This is the 8 pages manual for parasound dac 1500 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 8
parasound dac 1500 owners manual

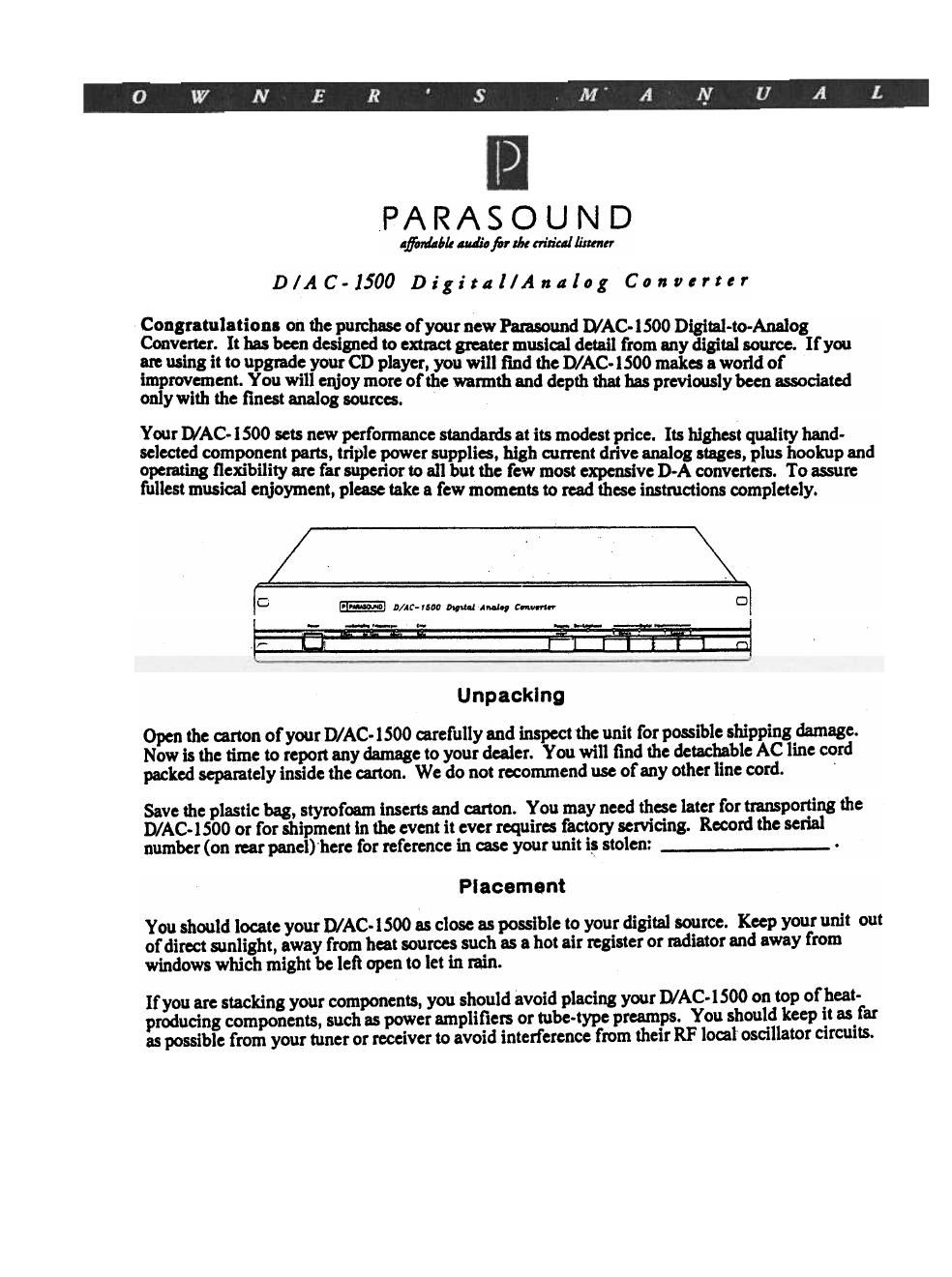

Extracted text from parasound dac 1500 owners manual (Ocr-read)


Page 2

A balanced line is a necessity if you are driving a long line to your preamplifier, and provided it is equipped with balanced inputs. Balanced lines also reduce annoying hum in many areas prone to RF interference, where 60 Hz (USA) or SO Hz (most overseas) television sync. signals can mimic ordinary AC line "hum." In this case the two wires for the + and - audio signal are enclosed within a third separate shield wire which is the "floating" ground. Serious listeners prefer the superior musicality of balanced interconnections. The lower noise floor seems to enhance the apparent width and depth of the soWld stage by reducing interference. A Digital Output jack passes your digital source's data stream directly to a digital recorder like a Mini Disc, DA T, DCC or CD.R. This is an RCA type connector; use only digital quality cable. AC Power Your DI AC-1500 has an IEC standard detachable power cord which has been specially selected for its contribution to the sound quality of this unit. Try to connect only this cord directly to a nearby AC wall outlet and avoid extension cords or connection to accessory outlets on your preamp. Operating your DI AC-1500 Power On/Off Push the upper section of the button to turn on; lower section for off. Sampling Frequency LEDs Your DI AC-1500 will recognize the digital signal of whatever type of digital source you connect and will switch to the correct sampling tate automatically. The 44.1 kHz sampling tate is standard for compact discs. 32 kHz is for digital broadcast; 48kHz is for DA T. Error/Data LED In case there is an interuption of data from the digital source or a malfunction of the digital source or connection, the ErrorIData LED will illuminate. This shows you that your DI AC-1500 is not receiving correct digital data to process and convert to analog. In this case, a muting circuit will prevent a "garbage" signal passed to Analog Out or the Digital Out Record jacks. Input Select Buttons and LEDs The four Input Select buttons correspond to the four input connectors on the rear panel: Coaxial I, Coaxial 2, Optical I, Optical 2. Polarity Invert Button and LED
