Parasound dac 1100 owners manual
This is the 6 pages manual for parasound dac 1100 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from parasound dac 1100 owners manual (Ocr-read)

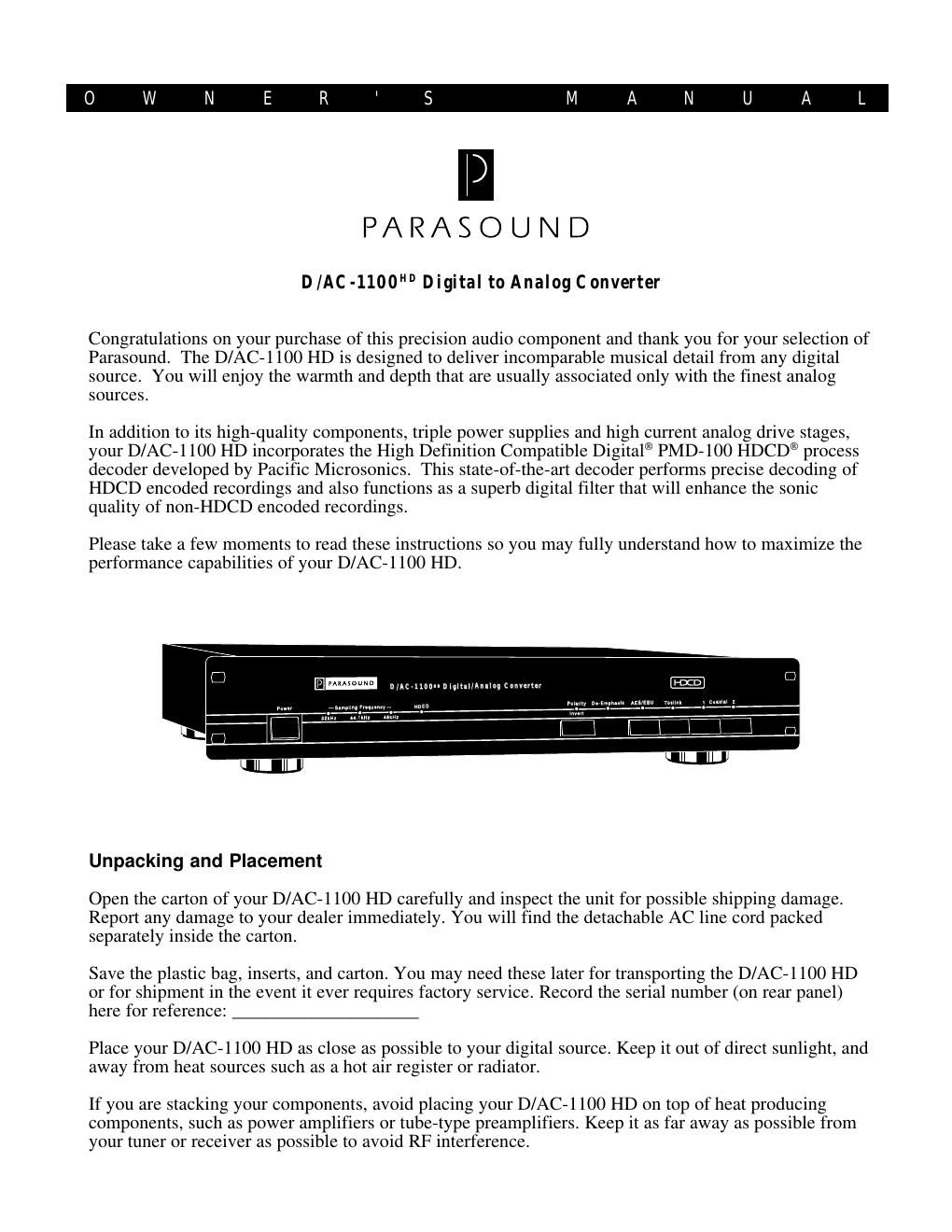

Page 1
-2- Connecting Your D/AC-1100 HD When you make connections, be careful to avoid tension on digital and audio interconnects which might cause damage to the connectors or cause them to pull loose. Do not attempt to bend either coaxial or optical digital cables at an angle; this could permanently damage them. Be sure to turn off the power of your preamplifier and power amplifier while making connections. As an additional safeguard, turn your preamplifiers volume control to minimum. Digital Inputs Your D/AC-1100 HD has four digital inputs: 2- 75 W Coaxial, TOSlink, and AES/EBU. It is possible to connect four separate digital sources to your D/AC-1100 HD and select among them from the front panel. However, radiation from the unused digital inputs may contaminate the sound of the selected input source. If you have more than one digital source connected, make sure you turn off the power of the unused source(s) until you are ready to listen to it. Coaxial: RCA jack - 75 W WW W W standard 75 W Coaxial output connections are provided on many high quality CD players. You should use only good quality cables which have been designed for digital data transmission. Cables designed for audio frequencies are not suitable and will not give you satisfactory results. Optical: TOSlink Fiber Optic TOSlink fiber optic connections are also popular and are found on most high-quality video laser disc players as well as older CD players and CD transports. Your dealer can assist you to select an appropriate optical cable with TOSlink connectors. AES/EBU: Balanced XLR Connection AES/EBU (Audio Engineering Society/European Broadcast Union) balanced connections have become the standard digital connection for professional digital audio equipment. Balanced AES/EBU XLR connectors are also becoming increasingly popular with high-end consumer equipment. AES/EBU connections are thought to be superior to coaxial, TOSlink, and even ST connections because of their inherent noise rejection capability. When you use the AES/EBU connection, be sure to use one designed for digital transmission. Cables designed for audio frequencies are not suitable and will not give you satisfactory results. Analog Output Connections Analog output jacks connect to any line level input on your preamplifier or even directly to your power amplifier provided it is equipped with level controls. Use only high-quality interconnects to preserve detail and clarity. Make sure your preamplifier is either turned off or its volume is set to minimum whenever making connections. There are two analog output connections: Unbalanced RCA jacks for unbalanced line output and balanced XLR connectors for balanced line output- Pin 1: Ground, Pin 2: + signal, Pin 3: - signal Digital Output Connection The digital output jack passes your digital sources data stream directly to a digital recorder like a Mini Disc, DAT, DCC or CD-R. Use only digital quality cable for this RCA connection. AC Power Cord Your D/AC-1100 HD has an IEC standard detachable power cord that has been specially selected for its contribution to the sound quality of this unit. Try to connect only this cord directly to a nearby AC wall outlet and avoid extension cords or connection to accessory outlets on your preamp.
Page 2
