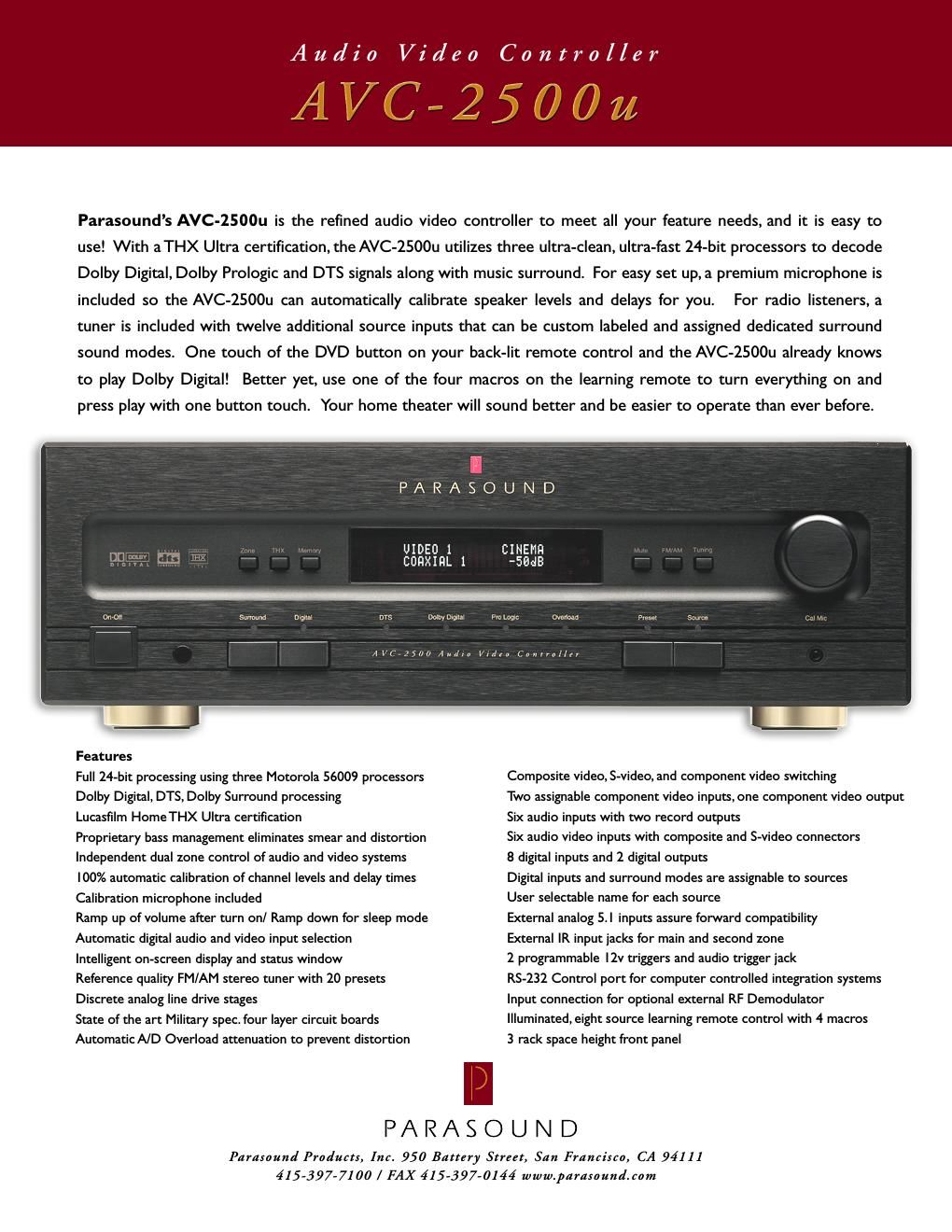

Page 1

Audio Video Controller

Parasounds AVC-ZSOOu is the refined audio video controller to meet all your feature needs, and it is easy to

use! With aTHX Ultra certification, the AVC-2500u utilizes three ultra-clean, ultra-fast 24-bit processors to decode

Dolby Digital, Dolby Prologic and DTS signals along with music surround. For easy set up,a premium microphone is

included so the AVC-2500u can automatically calibrate speaker levels and delays for you. For radio listeners, a

tuner is included with twelve additional source inputs that can be custom labeled and assigned dedicated surround

sound modes. One touch of the DVD button on your back-lit remote control and the AVC-2500u already knows

to play Dolby Digital! Better yet, use one of the four macros on the learning remote to turn everything on and

press play with one button touch. Your home theater will sound better and be easier to operate than ever before.

PARASOUND

ma, u.»

ClNEllFl

1\'l/n 4,, in! human

Features

Full 24-bit processing using three Motorola 56009 processors
Dolby Digital, DTS, Dolby Surround processing

Lucasfilm HomeTHX Ultra certification

Proprietary bass management eliminates smear and distortion
Independent dual zone control of audio and video systems
I00% automatic calibration of channel levels and delay times
Calibration microphone included

Ramp up of volume after turn on/ Ramp down for sleep mode
Automatic digital audio and video input selection

Intelligent on-screen display and status window

Reference quality FM/AM stereo tuner with 20 presets
Discrete analog line drive stages

State of the art Military spec. four layer circuit boards
Automatic A/D Overload attenuation to prevent distortion

Composite video, S-video, and component video switching

Two assignable component video inputs, one component video output
Six audio inputs with two record outputs

Six audio video inputs with composite and S-video connectors

8 digital inputs and 2 digital outputs

Digital inputs and surround modes are assignable to sources

User selectable name for each source

External analog 5,| inputs assure forward compatibility

External IR input jacks for main and second zone

2 programmable I2v triggers and audio trigger jack

RS-232 Control port for computer controlled integration systems
Input connection for optional external RF Demodulator
Illuminated, eight source learning remote control with 4 macros

3 rack space height front panel

PARASOUND

Parasaund Products, Inc. 950 Battery Street, San Francisco, CA 94111
415-397-7100 / FAX 415-397-0144 wwwpurasoundmom

Page 2

Audio Video Controller

Al l/

Parasounds AVC-2500u is the flexible control center at the heart of some of the finest audio/video systems in

the world. Pick from thirteen possible sources in two different zones. A high fidelity tuner is included with six

additional audio inputs and six audio/video inputs. Two component video inputs can be assigned to any video

source, or use either the SVideo or Composite video input. Have digital equipment? No problem, the AVC-2500u

has eight digital inputs and two digital outputs. IR inputs and outputs are available for control in other rooms, as

well as an RS-232 port for home automation systems. With over 90 connections on the back panel, you are sure

to have all the flexibility you need. If all that isnt enough,the AVC-2500u sounds amazing too!

AVC-2500u Specifications
Frequency response: front l0 Hz - 24 kHz: rear l0 Hz - 24 kHZ:
center (small orTHX) 80 Hz - 24 kHz: center (large) l0 Hz - 24 kHz:
subwoofer l0 Hz - 80 Hz
Harmonic distortion: front < 0.006%; center < 0.006%;
rear < 0.005%: subwoofer < 0.006%
Input impedance: all inputs l0 k9
lM distortion: < 0.06 % all channels
SIN ratio (a-weighted): front 97 dB: center 97 dB:
surround 85 dB; subwoofer 96 dB
Video section: sensitivity IV 1 0.5 dB:
frequency response 03 MHz - l0 MHz : l dB: overload 2:5V P-P
Dimensions: l7-l/4" w x 5-7/8" h x l3" d, 5-l/ " h without feet
Net weight: l6 lb.

Tuner Specifications

Tuning range: FM:87,5 - |08 MHZ:AM: 520 kHz - l6l0 kHz

FM sensitivity: Mono lHF l l dBf:
Stereo: lHF 37 MV for 50 dB of quieting

AM sensitivity: lHF l0 uV/m

S/N ratio: > 74 dB Stereo: 65 dB lHF-weighted

FM stereo separation: 50 dB @ l kHz: 40 dB @ l0 kHz

Selectivity: FM 80 dB;AM 30 dB

FM frequency response: 30 Hz - l5 kHz, : l dB

AM frequency response: 20 Hz - 4.5 kHz, 1 l dB

Total harmonic distortion: FM mono < 008%; FM stereo < 02%:
AM < 0.5%

Capture ratio: l dB

AM suppression: 60 dB

PARASOUND

Parusaund Products, Inc. 950 Battery Street, San Francisco, CA 94111
415-397-7100 / FAX 415-397-0144 www.parasound.eom
