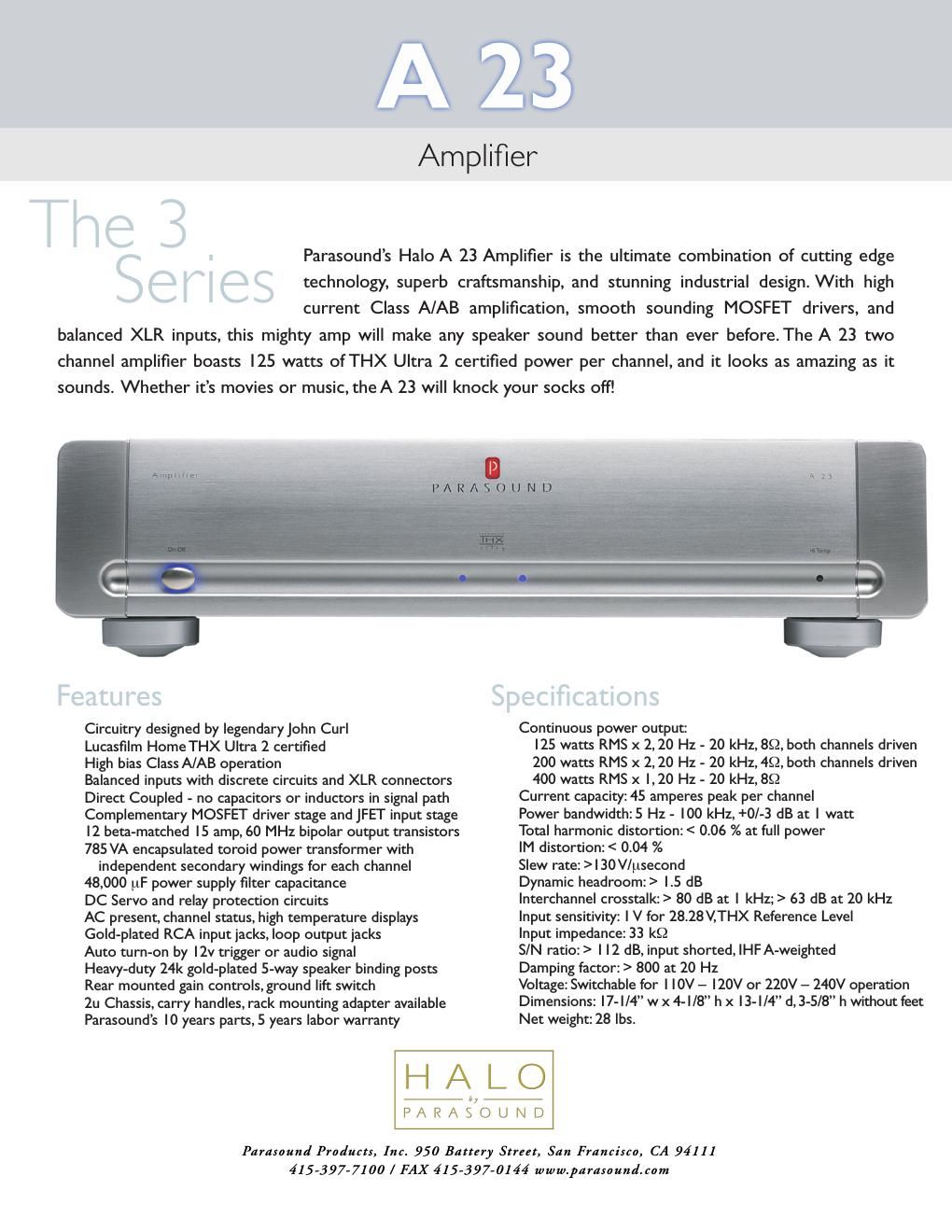

Page 1
A233
Amplifier
Parasounds Halo A 23 Amplifier is the ultimate combination of cutting edge
technology, superb craftsmanship, and stunning industrial design. With high
current Class A/AB amplification, smooth sounding MOSFET drivers, and
balanced XLR inputs, this mighty amp will make any speaker sound better than ever before. The A 23 two
channel amplifier boasts l25 watts ofTHX Ultra 2 certified power per channel, and it looks as amazing as it
sounds. Whether its movies or music,theA 23 will knock your socks off!
Circuitry designed by legendary John Curl
Lucasfilm Home THX Ultra 2 certified
High bias Class AIAB operation
Balanced inputs with discrete circuits and XLR connectors
Direct Coupled - no capacitors or inductors in signal path
Complementary MOSFET driver stage and JFET input stage
l2 beta-matched l5 amp, 60 MHz bipolar output transistors
785 VA encapsulated toroid power transformer with
independent secondary windings for each channel
48,000 HF power supply filter capacitance
DC Servo and relay protection circuits
AC present, channel status, high temperature displays
Gold-plated RCA input jacks, loop output jacks
Auto turn-on by I2v trigger or audio signal
Heavy-duty 24k gold-plated 5-way speaker binding posts
Rear mounted gain controls, ground lift switch
2u Chassis, carry handles, rack mounting adapter available
Parasound's l0 years parts, 5 years labor warranty
Continuous power output:
|25 watts RMS x 2, 20 Hz - 20 kHz, 89, both channels driven
200 watts RMS x 2, 20 Hz - 20 kHz,4Q, both channels driven
400 watts RMS x l,20 Hz - 20 kHz, 89
Current capacity: 45 amperes peak per channel
Power bandwidth: 5 Hz - |00 kHz, +0I-3 dB at l watt
Total harmonic distortion: < 006 % at full power
lM distortion: < 004 %
Slew rate: > | 30V/usecond
Dynamic headroom:> l.5 dB
lnterchannel crosstalk: > 80 dB at l kHz; > 63 dB at 20 kHz
Input sensitivity: l V for 28.28V,THX Reference Level
Input impedance: 33 k9
S/N ratio:> l l2 dB, input shorted, lHFA-weighted
Damping factor: > 800 at 20 Hz
Voltage: Switchable for l IOV - |20V or 220V - 240V operation
Dimensions: l7-l/ " w x4-l/ h x l3-l/ d,3-5l " h without feet
Net weight: 28 lbs.
LAQ
,
PARASOUND
Parasauna' Products, Inc. 950 Battery Strett, San Francisco, CA 94111
415-397-7100 / FAX 415-397-0144 www.parasound.com
