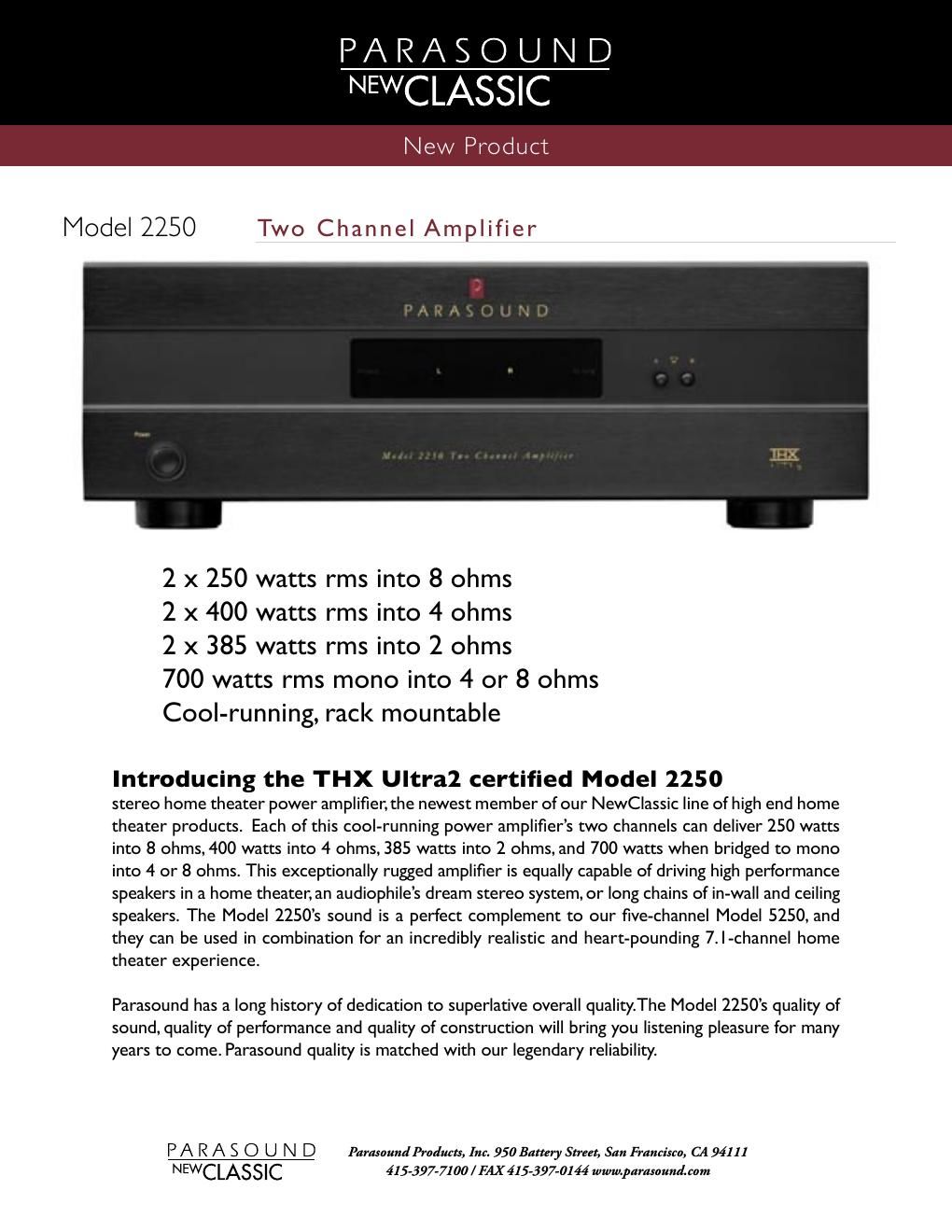

Parasound 2250 brochure

Page 1

The Model 2250 is a Class AB amplifier designed for efficient, low heat operation. Its fully discrete circuitry is powered by an enormous toroid transformer, and is capable of delivering 45 amps peak current per channel. It features a switchable 20 Hz or 40 Hz, 18 dB/octave high pass filter that can be activated to minimize wasted bass energy when driving multiple speaker pairs and to negate the reactive load impact of popular wall-mounted volume controls. There is also a impedance selector switch for very low impedance speaker chains. For integration with processing and control equipment, it fea - tures both a DC trigger input with looping output and adjustable sensitivity audio signal sensing for automatic on/off control. A ground lift switch is included on the rear panel, as are gold plated RCA inputs, and A/B speaker terminals with individual on-off and heavy-duty 24 K gold plated five-way speaker terminals for each channel. The Model 2250 includes DC Servo and relay protection circuits, and there are front panel indica - tors for high temperature, standby, and status of each channel. It occupies three rack spaces when mounted with the optional RMK33 rack-mount kit. Model 2250 Tw o C h a n n e l A m p l i f i e r Parasound Products, Inc. 950 Battery Street, San Francisco, CA 94111 415-397-7100 / FAX 415-397-0144 www.parasound.com - THX Ultra2 certified - 250 watts rms per channel into 8 Ω, both channels driven - 400 watts rms per channel into 4 Ω, both channels driven - 385 watts rms per channel into 2 Ω, both channels driven - 700 watts rms bridged into 8 Ω or 4 Ω mono - 45 amps peak current per channel - Impedance selector switch for continuous 2-3 Ω operation - Bridging switch for stereo or mono operation - A and B speaker terminals, individual on/off for each pair - 18dB/octave high pass filter, switchable, 20Hz or 40Hz - Fully discrete circuitry with toroid transformer - Efficient, low heat design - DC Servo and relay protection circuits - Automatic on/off by DC trigger, plus looping output jack - Automatic on/off by audio signal with adjustable sensitivity - Gold-plated RCA input jacks and loop output jacks - Heavy-duty 24k gold-plated 5-way speaker terminals - Rear mounted gain controls; ground lift switch - Standby, channel status, high temperature indicators - 3u chassis with carry handles; RMK33 rack mount kit available - Switchable 115/230v selector on rear panel - (W x D x H): 17.25 x 18.5 x 6 / 5.25 without feet Specifications:
