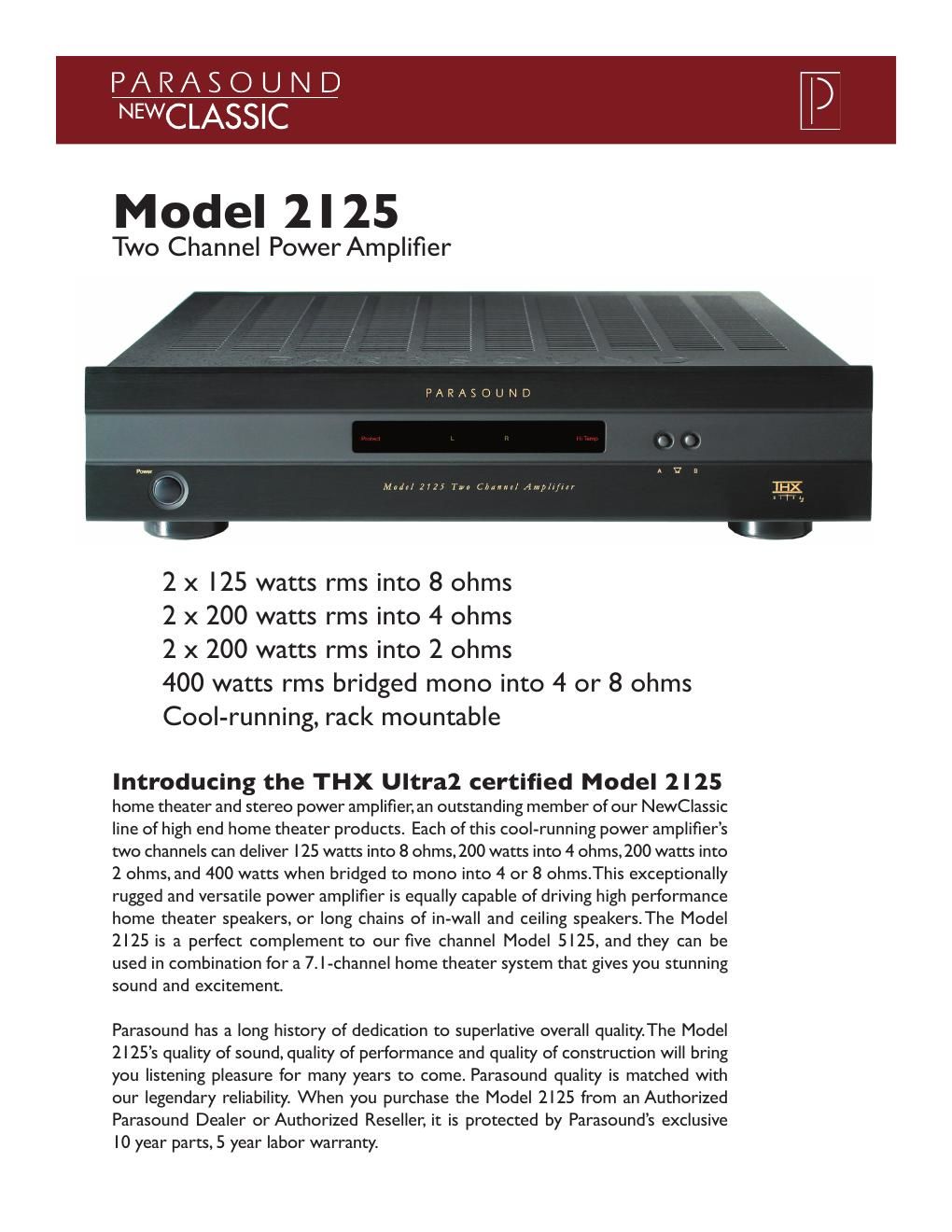

Parasound 2125 brochure

Page 1

The Model 2125 is a Class AB amplifi er designed for effi cient, low heat operation. Its fully discrete circuitry is powered by a huge toroid transformer, and is capable of delivering 35 amps peak current per channel. It features a switchable 20 Hz or 40 Hz, 18 dB/octave high pass fi lter that can be activated to minimize wasted bass energy when driving multiple small speakers or to defeat the negative impedance effects of auto-former wall-mounted volume controls. There is also a impedance selector switch for very low impedance speaker chains. For integration with processing and control equipment, it features both a DC trigger input with looping output and adjustable sensitivity audio signal sensing for automatic on/off control. A ground lift switch is included on the rear panel, as are gold plated RCA inputs, and A/B speaker terminals with individual on-off and heavy-duty 24 K gold plated fi ve-way speaker terminals for each channel. The Model 2125 includes DC Servo and relay protection circuits, and there are front panel indicators for high temperature, standby, and status of each channel. It occupies two rack spaces when mounted with the optional RMK22 rack-mount kit. Model 2125 Two Channel Power Amplifi er Specifi cations: - THX Ultra2 certifi ed - 125 watts rms per channel into 8 Ω , both channels driven - 200 watts rms per channel into 4 Ω , both channels driven - 200 watts rms per channel into 2 Ω , both channels driven - 400 watts rms bridged into 8 Ω or 4 Ω mono - 35 amps peak current per channel - Impedance selector switch for 2 Ω operation - Bridging switch for stereo or mono operation - A/B speaker terminals with individual on/off - 18dB/octave high pass fi lter, switchable 20Hz or 40Hz - Fully discrete circuitry with toroid transformer - Effi cient, low heat design - DC Servo and relay protection circuits - Automatic on/off by DC trigger with looping outputs - Automatic on/off by audio signal with adjustable sensitivity - Gold-plated RCA input jacks, loop output jacks - Heavy duty 24k gold-plated 5-way speaker terminals - Rear mounted gain controls; ground lift switch - 115/230v selector on rear panel - Standby, channel status, high temperature indicators - 2u chassis; RMK22 rack mount kit available - (W x D x H): 17.25 x 16 x 4.25 / 3.5 without feet Parasound Products, Inc. 950 Batter y Street, San Francisco, CA 94111 Ph: 415-397-7100 / Fax: 415-397-0144 / www.parasound.com
