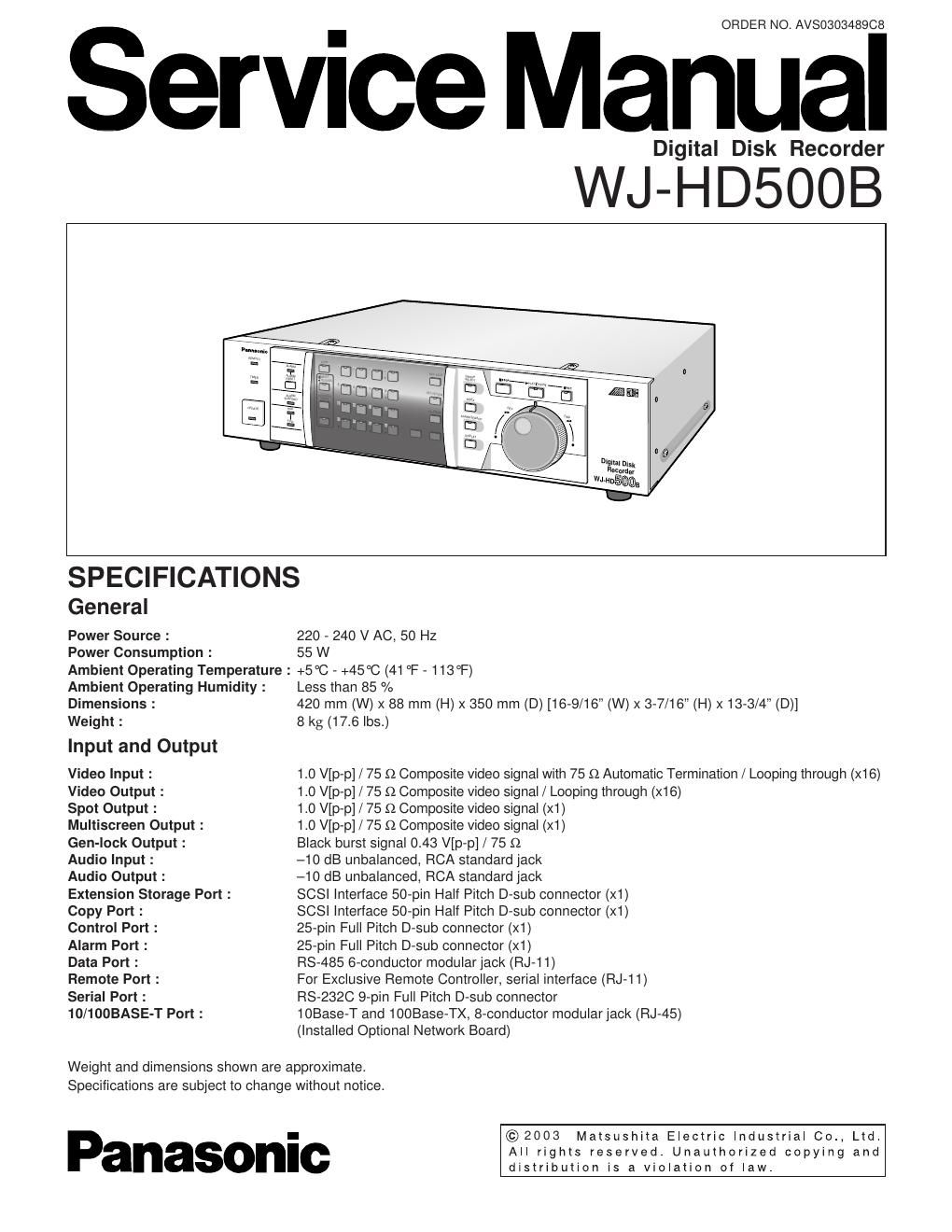

Page 1

ORDER NO. AVSO30348908

Service Manual

Digital Disk Recorder

WJ-HDSOOB

lull-i Dlxk
:comer

Wi.ii.5@@a

SPECIFICATIONS

General

Power Source :
Power Consumption :

Ambient Operating Temperature :
Ambient Operating Humidity :

Dimensions :
Weight :

Input and Output

Video Input :

Video Output :

Spot Output :
Multiscreen Output :
Gen-lock Output :
Audio Input :

Audio Output :

Extension Storage Port :

Copy Port :

Control Port :

Alarm Port :

Data Port :

Remote Port :

Serial Port :
10/1OOBASE-T Port :

220 - 240 V AC, 50 Hz

55 W

+5°C - +45°C (41°F -113°F)

Less than 85 °/o

420 mm (W) x 88 mm (H) x 350 mm (D) [16-9/16" (W) x 3-7/16 (H) x 13-3/4" (D)]
8 kg (17.6 lbs.)

1.0 V[p»p] / 75 (2 Composite Video signal with 75 £2 Automatic Termination / Looping through (x16)
1.0 V[p»p] / 75 0 Composite video signal / Looping through (x16)
1.0 V[p»p] / 75 (2 Composite video signal (x1)

10 V[p»p] / 75 (2 Composite video signal (x1)

Black burst signal 0.43 V[p-p] / 75 Q

-10 dB unbalanced, RCA standard jack

-10 dB unbalanced, RCA standard jack

SCSI Interface 50»pin Half Pitch D-sub connector (x1)

SCSI Interface 50»pin Half Pitch D-sub connector (x1)

25-pin Full Pitch D-sub connector (x1)

25-pin Full Pitch D-sub connector (x1)

RS-485 6-conductor modular jack (RJ-1 1)

For Exclusive Remote Controller. serial interface (RJ-11)
RS-23ZC 9-pin Full Pitch D-sub connector

1OBase-T and 1OOBase-TX, 8-conductor modular jack (RJ»45)
(Installed Optional Network Board)

Weight and dimensions shown are approximate.
Specifications are subject to change without notice,

Panasonic

©2003 Matsushita Electric Industrial 00., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

general public.

service a product.

result in serious injury or death.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any
attempt to service or repair the product or products dealt with in this service information by anyone else could

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

This symbol warns the user that uninsulated voltage within
the unit may have sufficient magnitude to cause electric
shock. Therefore, it is dangerous to make any kind of contact
with any inside part of this unit.

This symbol alerts the user that important literature concerning
the operation and maintenance of this has been included.
Therefore, it should be read carefully in order to avoid
any problems.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are indicated
by the "A" mark on the schematic diagram and the replacement parts list. It is essential that these critical
parts should be replaced with manufacturer's specified parts to prevent X-radiation, shock, fire, or other hazards.
Do not modify the original design without permission of manufacture.

STANDARD ACCESSORIES

AC Power Cord .. . 2 pc.

Rack Mounting Bracket . . 2 pcs.
Screw for Rack Mounting Bracket (M4x10) . 4 pcs.
Absorber . . 4 pcs.
Sleeve .4 pcs.
Earth Lug .................... . 1 pc.

Hard Disk Fixing Screw . . 4 pcs.

Warning

The lithium battery in this equipment must only be
replaced by qualified personnel. When necessary,
contact your local Panasonic supplier.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended
by the equipment manufacturer. Discard used batteries
according to manufacturer's instructions.
