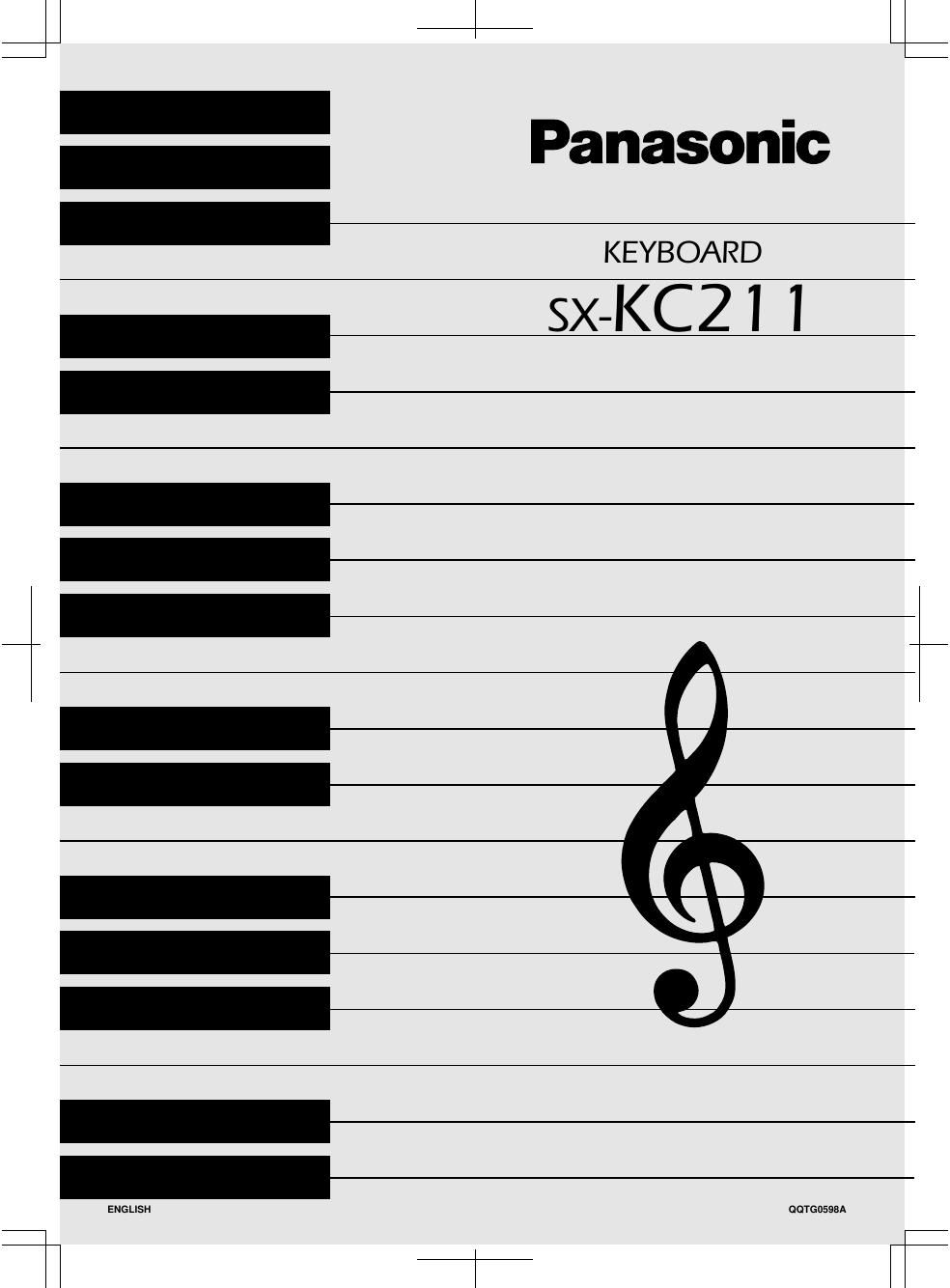

Panasonic sx kc211 user manual
This is the 36 pages manual for panasonic sx kc211 user manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sx kc211 user manual (Ocr-read)
Page 1
(For AC cord type only) For your safety, please read the following text care- fully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5- ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replace- ment fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer. If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician. IMPORTANT The wires in this mains lead are coloured in accor- dance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the col- oured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be con- nected to the terminal which is marked with the letter L or coloured Brown or Red.WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL OR COLOURED GREEN OR GREEN/ YELLOW. THIS PLUG IS NOT WATERPROOF ÅKEEP DRY. Before use Remove the connector cover. How to replace the fuse The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug. 1. Open the fuse cover with a screwdriver. 2. Replace the fuse and close or attach the fuse cover. CAUTION!IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE RE-MOVED AND THE PLUG CUT OFF AND DIS-POSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET. Figure A Figure B Figure A Figure BFuse (5 ampere) Fuse (5 ampere) Fuse cover Caution for AC Mains Lead 2QQTG0598
Page 2
Caution Voltage (except North America, Mexico, Europe, Australia, New Zealand, China and Russia) Be sure the voltage adjuster located on the AC adaptor is in accordance with local voltage in your area before using this unit. Use a screwdriver to set the voltage adjuster to the local voltage. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. BEFORE YOU PLAY, PLEASE READ THE CAUTIONARY COPY APPEARING ON PAGE 4. Before you play For long and pleasurable use of this instrument, and to gain a thorough understanding of your KC211 Keyboard, it is strongly recommended that you read through this Owner's Manual once. The Owner's Manual is comprised of the following parts. BASIC FUNCTIONS This part includes an explanation of basic procedures and points you should be aware of for proper operation of your instrument. PRACTICAL APPLICATIONS This part comprises a detailed explanation of sound, effect, rhythm, Recording, Disk Drive and Setting functions. REFERENCE GUIDE (separate booklet) Reference guide for the contents of the Sound List, Drum Kits, MIDI Implementation Chart. OWNER'S MANUAL 3 QQTG0598
