panasonic sv sd 310 eb service manual

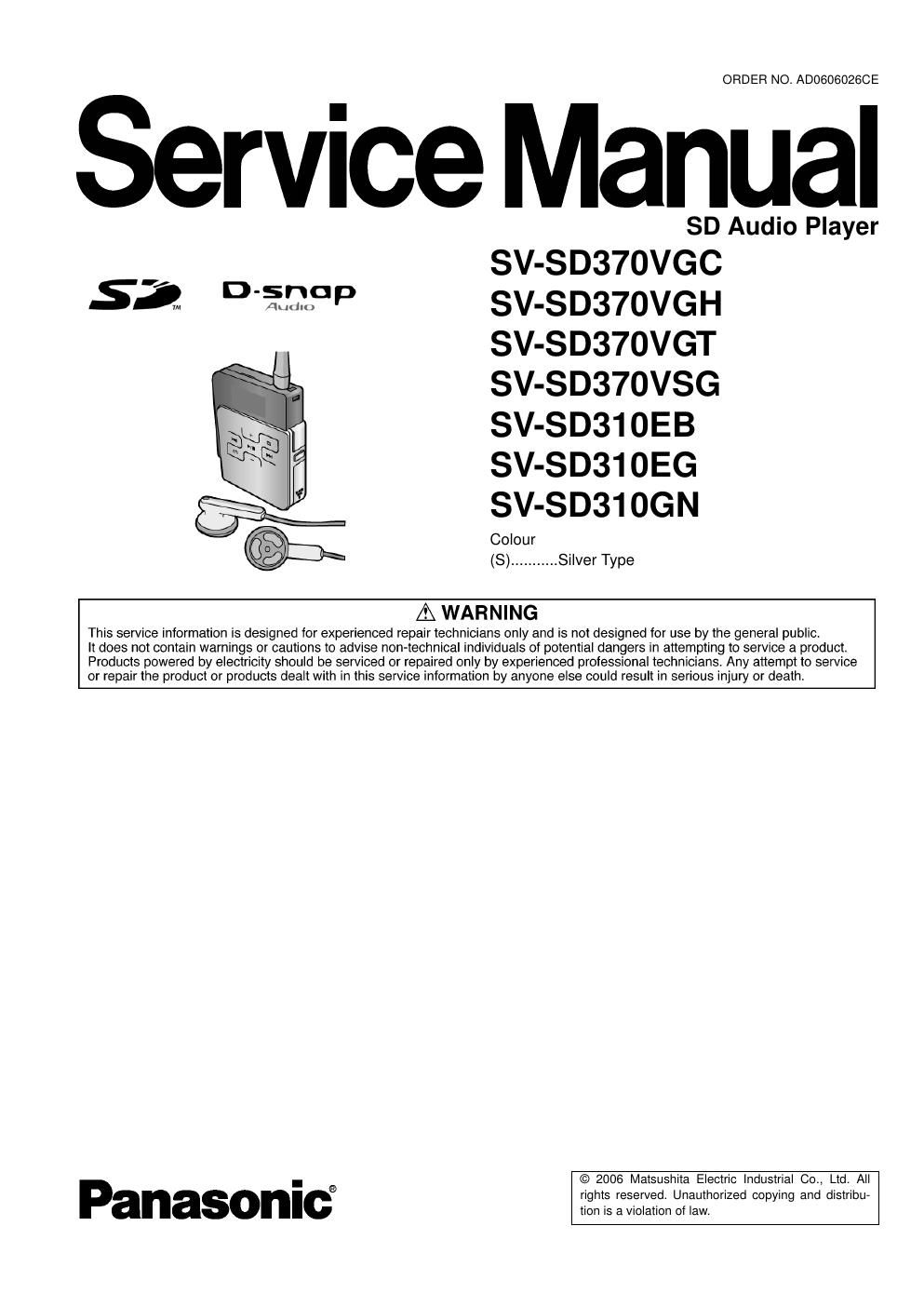

Extracted text from panasonic sv sd 310 eb service manual (Ocr-read)


Page 1

2 TABLE OF CONTENTS PA G E PA G E 1Warning--------------------------------------------------------------3 1.1. Caution for AC Mains Lead(For EB/GH) ------------- 3 2 Service Navigation------------------------------------------------4 2.1. General Description About Lead Free Solder (PbF) ---------------------------------------------------------- 4 3 Specifications------------------------------------------------------5 4 Location of Controls and Components--------------------6 4.1. Accessories -------------------------------------------------- 6 4.2. Location of Controls --------------------------------------- 6 5 Service Mode-------------------------------------------------------7 5.1. Before Entering The Service Mode --------------------7 5.2. Entering The Service Mode -----------------------------7 5.3. EL SETTING EL Display Mode Switching -----------------------------9 5.4. DEVICEKEY NO Device Key Serial NumberDisplay --------------------- 9 5.5. AD INFO Battery Capacity Display and Control Button Operation Check -------------------------------------------9 5.6. MODEL INFO Model and Region Display ----------------------------- 10 5.7. CARD IN/OUT Card Recognition Operation Check ----------------- 10 5.8. AUDIO PLAY Audio Playback Check ---------------------------------- 11 5.9. VOICE PLAY Voice Playback Check (SV-SD370V only) --------- 11 5.10. VOICE REC Voice Recording Check (SV-SD370V only) ------- 12 5.11. FM REC FM Recording Check (SV-SD370V only) ---------- 13 5.12. MODEL Model and Region Setting ----------------------------- 14 5.13. VERSION Internal Version Display -------------------------------- 14 5.14. WAKEUP COUNT Use History Display -------------------------------------- 14 5.15. Error Code Table ----------------------------------------- 15 6 Service Fixture & Tools---------------------------------------17 6.1. Service Position ------------------------------------------ 17 7 Disassembly and Assembly Instructions---------------18 7.1. Removal of the rear cabinet unit --------------------- 18 7.2. Removal of the front cabinet unit--------------------- 18 7.3. Removal of the operation switch and chassis ---- 19 7.4. Removal of the Sub P.C.B. ---------------------------- 19 7.5. Removal of the Main P.C.B. --------------------------- 20

Page 2

3 1Warning 1.1. Caution for AC Mains Lead (For EB/GH) 1.1.1. Information for Your Safety IMPORTANT Your attention is drawn to the fact that recording of pre- recorded tapes or discs or other published or broadcast material may infringe copyright laws. WARNING To reduce the risk of fire or shock hazard, do not expose this equipment to rain or moisture. CAUTION To reduce the risk of fire or shock hazard and annoying interference, use the recommended accessories only. FOR YOUR SAFETY DO NOT REMOVE THE OUTER COVER To prevent electric shock, do not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel. 1.1.2. Caution for AC Mains Lead For your safety, please read the following text carefully. This appliance is supplied with a moulded three-pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amperes and it is approved by ASTA or BSI to BS1362 Check for the ASRA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off plug is inserted into any 13-ampere socket. If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician. 1.1.2.1. Important The wires in this mains lead are coloured in accordance with the following code: As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the ter- minal in the plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED. Under no circumstances should either of these wires be con- nected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol. 1.1.2.2. Before Use Remove the Connector Cover as follows. 1.1.2.3. How to Replace the Fuse 1. Remove the Fuse Cover with a screwdriver. 2. Replace the fuse and attach the Fuse cover. Blue Neutral Brown Live
