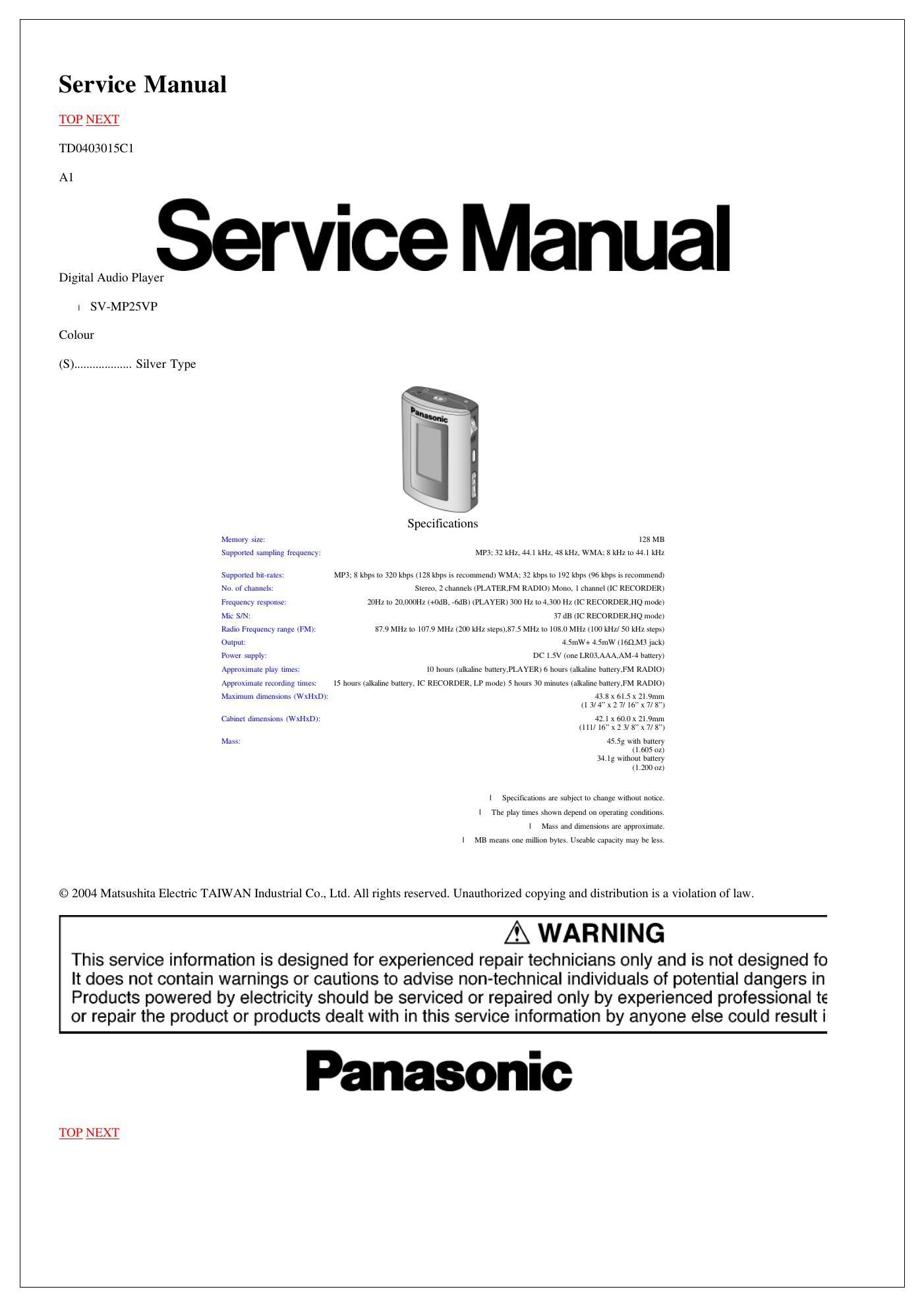

Page 1
Service Manual
LOP NEXT
TD0403015C1
Al
Serv'ce Manual
Digital Audio Player
| SV-MPZSVP
Colour
(S).... ..... Silver Type
Specifications
Memory size: 128 MB
Supported sampling frequency MP3; 32 kHz. 44,1 kl-iz, 48 kHz. WMA. 14 kHz to 44.1 kHz
Supported bilrrates: MP3; 25 kbps in 320 khps (1214 khps is recommend) WMA, 32 kbps to 192 kbps (96 kbps is recommend)
No. or channels. Stereo 2 channe1s(Pl_ATi:R,FM RADIO) Mono 1 channel (1C RECORDER)
Frequency response: ZOHZ to 20,1)00HZ (+0dB, rhdfl) (PLAYER) 300 Hz [04.300 Hz (1C RECORDER,HQ mode)
Mic S/N: 37 dB (1C RECORDERHQ mode)
Radio Frequency range (FM) 87 9 MHZ to 107.9 MHZ (200 kHz stcps).87.5 MHZ to 108.0 MHZ (100 kHZ/ 50 kHz steps)
Output: 4.5mw+ 4.5mw (loom jack)
Power supply DC 1.5v (one LRO3,AAA.AM74 battery)
Approximate play times: 10 hours (alkaline butteryPLAYER) o hours(u1kaliiie bailery.FM RADIO)
Approximate recording times: 15 hours (alkaline battery, 1C RECORDER, LP mode) 5 hours 30 minutes (alkaline ballery,FM RADIO)
Maximum diincnsiom (WXHXD): 43.8 x 61.5 x 21.9mm
(13/4" x2 7/ 16"x7/ 8")
Cabinet dimensions (le-IXD): 42.1 x {10.0 x 21 9mm
(111/ 16" x2 3/ 8"x7/ 8")
Mass: 45.5g wnh battery
(Loos oz)
34.1g without battery
(1.200 oz)
I Spectiicaiions are subject to change without notice.
| The play times shown depend on operating conditions.
1 Mass and dimensions zirc approximate.
| ME means one million bytes. Useahle capacity may be less,
© 2004 Matsushita Electric TAIWAN Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
A WARNING
This service information is designed for experienced repair technicians only and is not designed to
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in
Products powered by electricity should be serviced or repaired only by experienced professional te
or repair the product or products dealt with in this service information by anyone else could result i
Panasonic
TOP NEXT
