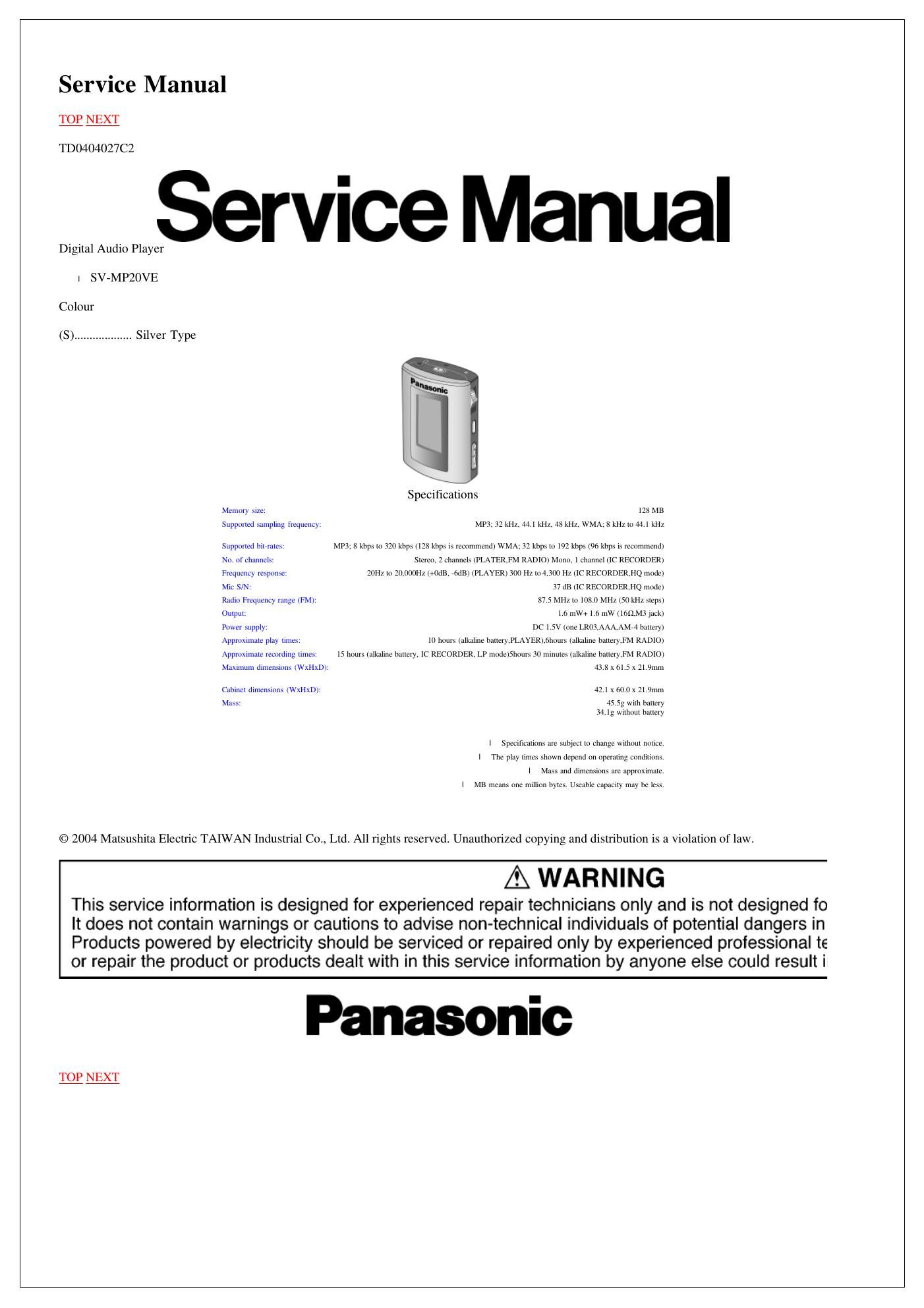

Service Manual

TOP NEXT

TD0404027C2

Service Manual

Digital Audio Player
| SV-MPZOVE
Colour

(S) ................... Silver Type

Specifications
Memory size: 128 MB
Supported sampling frequency: MP3: 32 kHz. 44.1 kHz, 43 kHz, WMA: 3 kHz to 44.1 kHz
Supported bitrrntes MP3: 3 kbps to 320 kbps (128 kbps is recommend) WMA: 32 kbps to 192 khps (96 kbps is recommend)
No of channels: Stereo, 2 channels (PLATER,FM RADIO) M0110, 1 channel (IC RECORDER)
Frequency response: ZOHZ Io 20.0001-[2 (+0dB, 7MB) (PLAYER) 300 Hz to 4.300 H1 (1C RECORDERrHQ mode)
Mic SIN: 37 dB (1C RECORDERJ-IQ mode)
Radio Frequency range (FM): 297.5 MHz to [08.0 MHz (50 kHz steps)
Output: 1.6 mW+ 1.6 1nW (160,M3 jack)
Power supply: DC 1.5V (one LR03.AAA,AM74 battery)
Approximate play times: 10 hours (alkaline batiery,PLAYER),ohours (alkaline batteryFM RADlO)
Approximate recording times: 15 hours (alkaline battery. 1c RECORDER. LP modc)5hours 30 minutes (alkaline bultcry,FM RADIO)
Maximum dimensions (WXHXD): 43.8 x 6] 5 x 21.9mm
Cabinet dimensions (WxHxD) 42.] x 60.0 x 21.9mm
Mass. 45.5g with bultcry

34 lg without battery

| Specifications are subject to change Without notice.
| The play times shown tlcpcnd on operating conditions.
| Mass and dimensions are approximate.

I MB means one million bytes. Useable capacity may be less.

© 2004 Matsushita Electric TAIWAN Industrial Co., Ltd All rights reserved. Unauthorized copying and distribution is a violation of law.

A WARNING

This service information is designed for experienced repair technicians only and is not designed to
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in
Products powered by electricity should be serviced or repaired only by experienced professional te
or repair the product or products dealt with in this service information by anyone else could result i
