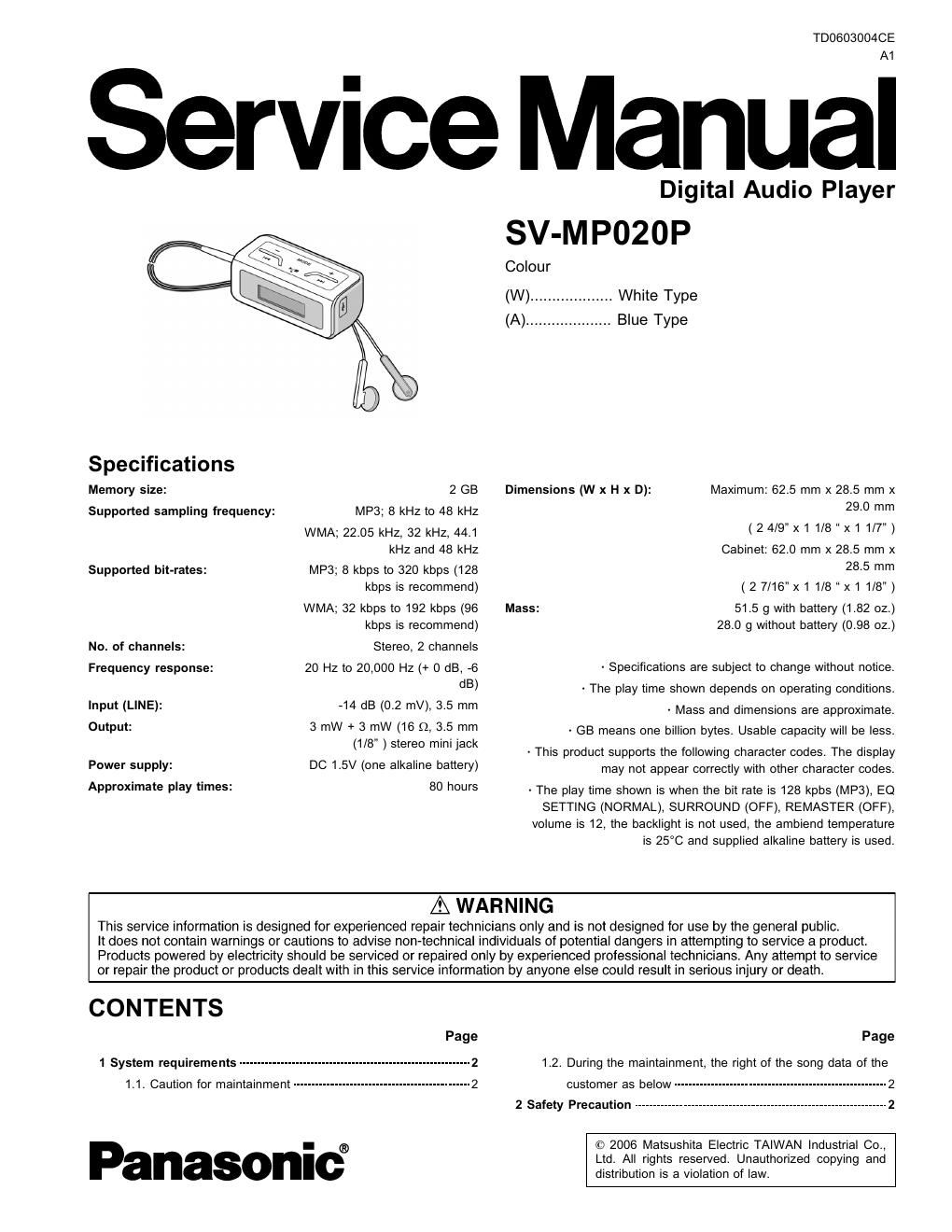

TD0603004CE

Service Manual

Digital Audio Player
SV-MPOZOP

Colour
(W) ................... White Type
(A) .................... Blue Type

Specﬂhaﬁons

Memory size:

Supported sampling frequency:

Supported bit-rates:

No. of channels:

Frequency response:

Input (LINE):
Output:

Power supply:

2 GB
MP3; 8 kHz to 48 kHz

WMA; 2205 kHz, 32 kHz, 44.1
kHz and 48 kHz

MP3; 8 kbps to 320 kbps (128
kbps is recommend)

WMA; 32 kbps to 192 kbps (96
kbps is recommend)

Stereo, 2 channels

20 Hz to 20,000 HZ (+ 0 dB, -6
dB)

-14 dB (0.2 mV), 3.5 mm

3 mW + 3 mW (16 D, 3.5 mm
(1/8" ) stereo mini jack

DC 1.5V (one alkaline battery)

Dimensions (W x H x D):

Mass:

Maximum: 62.5 mm x 28.5 mm x
29.0 mm

(2 4/9"x11/8x11/7")

Cabinet: 62.0 mm x 28.5 mm x
28.5 mm

(2 7/16"X11/8x11/8")

51.5 g with battery (1.82 oz.)
28.0 9 without battery (0.98 oz.)

- Specifications are subject to change without notice.

- The play time shown depends on operating conditions.

- Mass and dimensions are approximate.

- GB means one billion bytes. Usable capacity will be less.

- This product supports the following character codes. The display
may not appear correctly with other character codes.

Approximate Play times: 80 hours - The play time shown is when the bit rate is 128 kpbs (MP3), EQ
SETTING (NORMAL), SURROUND (OFF), REMASTER (OFF),
volume is 12, the backlight is not used, the ambiend temperature
is 25°C and supplied alkaline battery is used.
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced prolessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

Page
1 System requirements -------------------------------------------------------------- 2
1.1. Caution for maintainment ----------------------------------------------- 2

Panasonic?

Page

1.2. During the maintainment, the right of the song data of the

customer as below ------

2 Safety Precaution -------------

............................................. 2

...................................................... 2
