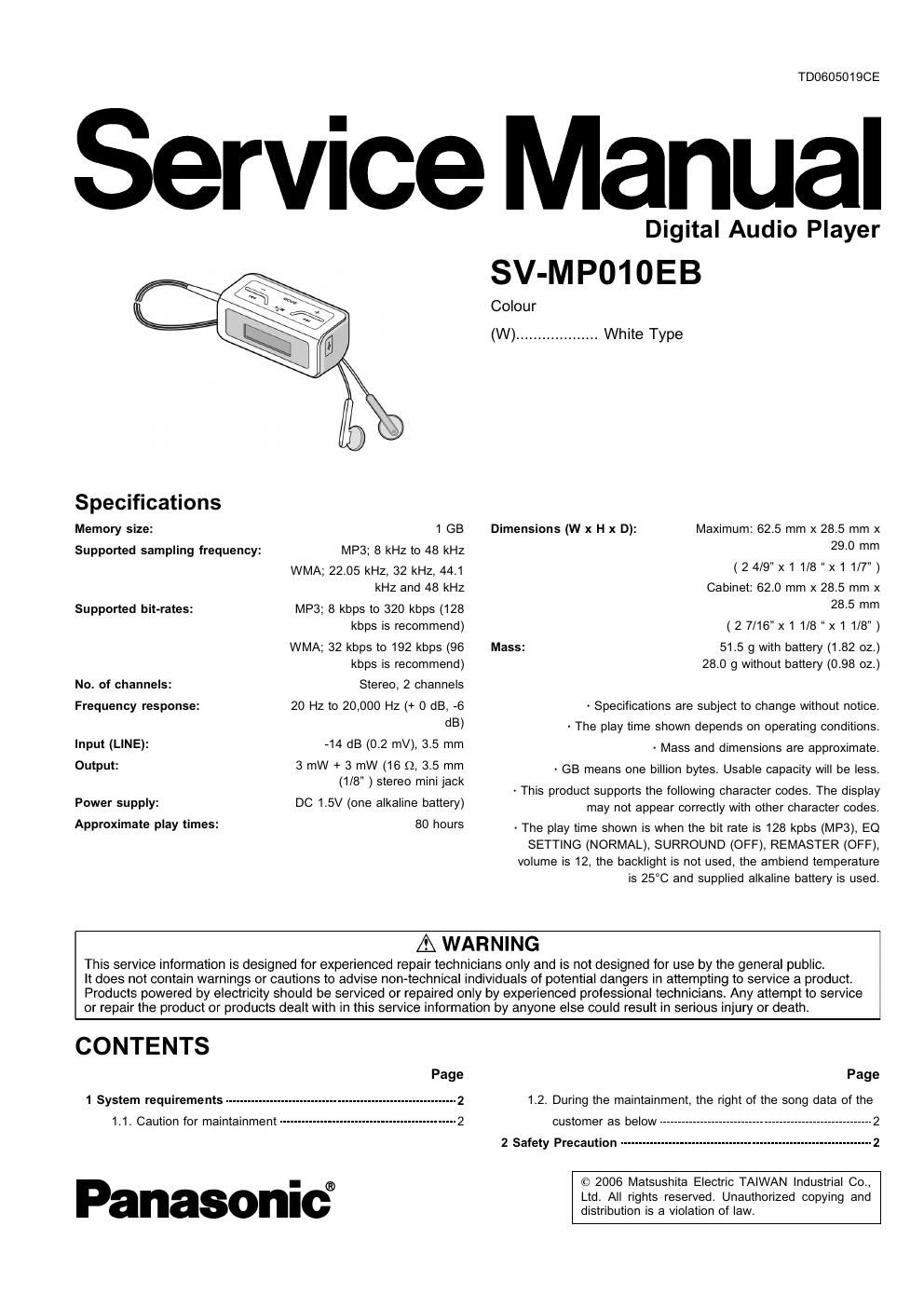

Panasonic sv mp 010 eb service manual

Page 2

SV-MPM OEB

2.1. Human body grounding -------------------------------------------------- 2
2.2. Work table grounding ..................................................... 2

3 Service Navigation ---------------------

3.1. About Lead Free Solder (PbF)
4 Accessories ---------------------------------------------------------------------------- 3
5 Location of Controls ............................................................... 4

6 Operation Checks and Component Replacement Procedures5

6.1. Removal of the battery cover -------

6.2. Removal of the funtion button base

6.3. Removal of the front cabinet --------
6.4. Removal of the SUB P.C.B. -------------------------------------------- 6
6.5. Removal of the main P.C.B. ------------------------------------------- 6
6.6. Removal of the LCD Ass $11!
6.7. Removal of the LED P.C.B
6.8. Removal of the LCD and sheet
6.9. Removal of the LCD piece and LCD holder ------------------- 7
6.10. Removal of the holder piece ------------------------------------------ 8
6.11. Removal of the USB cover
6.12. Removal of the hold knob-

1 System requirements

03: Microsoft® Windows® Me, Windows® 2000 Professional.
Windows63 XP Home Edition/Professional
- The player cannot be used on Microsoft0 Windows® 3.1,
Windows® 95. Windows® 98, Windows® 983E,
Windows NT® or Macintosh®.
- Operation on an upgraded OS is not guaranteed.
- Operation on an 08 other than the one pre-installed is
not guaranteed.
- Multi-CPU or Multi-boot environments are not supported.
I MTP (Media Transfer Protocol) mode
OS: Windows® XP Home Edition (SP1 or SP2)/
Professional (SP1 or SP2)
Windows Media Player: Windows Media Player 10
-When the unit has been connected to the computer in the
MTP mode, it is indicated as Panasonic audio player on
the computer screen.
Otherwise it is indicated as "Removeable disk". (MSC mode)

1.1. Caution for maintainment

1. Please make a copy before maintainment.
2.When update the software, please re-install the firmware.

3.When replace DSP K) and Flash Memory, please re-install
the firmware and font table.

1.2. During the maintainment, the

right of the song data of the
customer as below

1.When purchase the song from the web site, the songs has
been encoded or limited for the time for using.
The right of custermer will lose one time.

2.The song that purchase from the web-site, the songs has
been encoded but no limited for the time for using or the

songe has not been encoded, the righ of customer will not
be in fuenced.

6.13. Removal of the battery terminal holder .......................... g
6.14. Removal of the battery spring and spring holder ............ 8
--9
10
8.1. Update or install the firmware(When replace DSP IC and

7 Service Position

8 Service Mode

Flash Memory IC, please re-install the firmware and font
table.) .......................................................................... 10

8.2. Reset procedure .................

8.3. Checking the software version

9 Troubleshooting ---------------------------
1D Troubleshooting guide ---------------------------------------------------------- 12
11 Type Illustration of ICs, Transistors and Diodes .................. 13

12 Block Diagram ..............
13 Schematic Diagram Notes

14 Schematic Diagram ---------
15 Printed Circuit Board Diagram ______________________________________________ 24
16 Cabinet Parts Location _________________________________________________________ 26
17 Packaging .................

18 Replacement Parts List

2 Safety Precaution
2.1. Human body grounding

Use the anti-static wrist strap to discharge the static electricity
from your body.

Wrist strap
(Anti-static bracelet) /

1M9

2.2. Work table grounding

Put a conductive material (sheet) or steel sheet on the area
where the traverse deck (optical pick-up) is placed, and ground
the sheet.

conduct electricity
