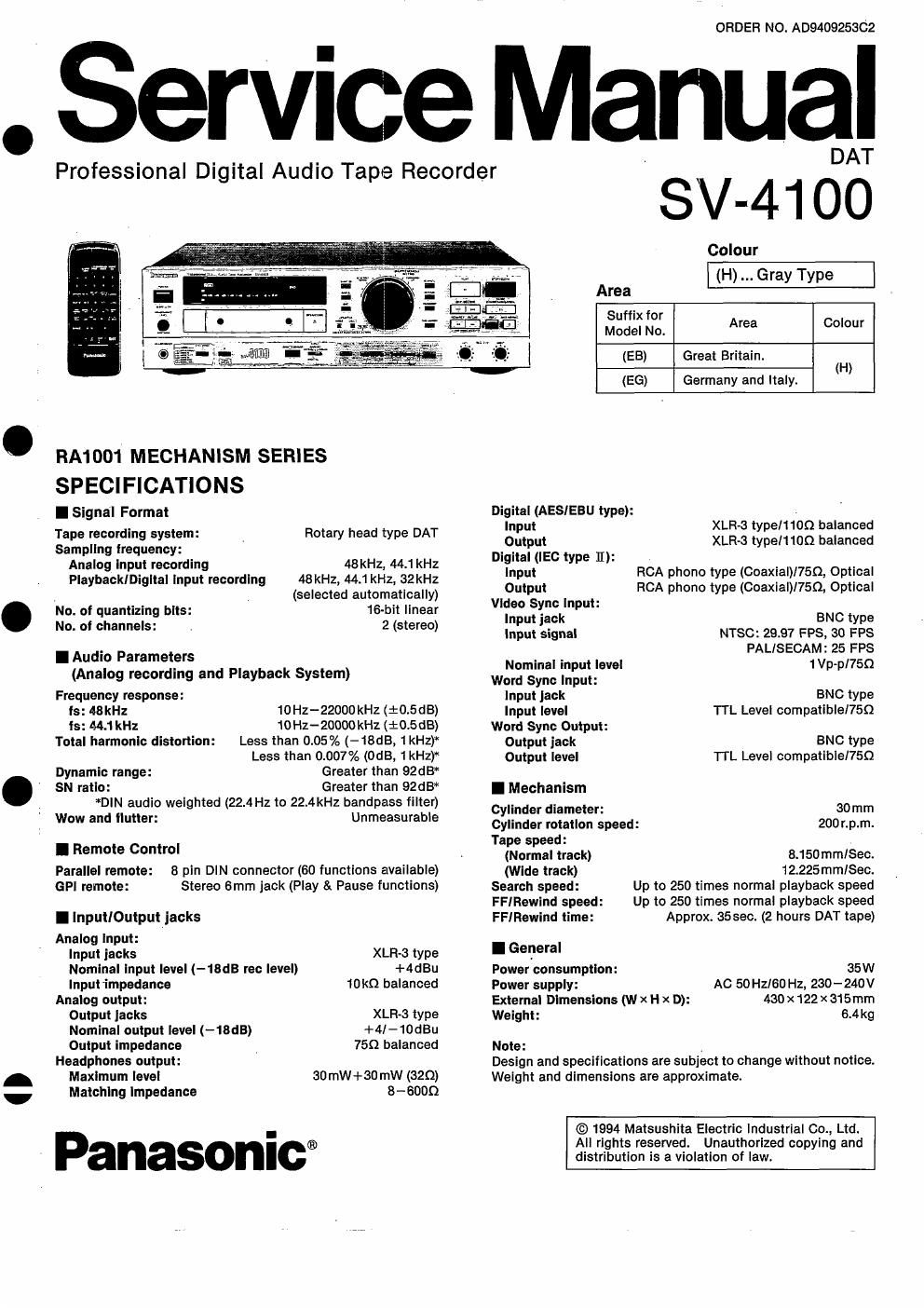

Page 1

. Service Manual

Professional Digital Audio Tape Recorder

ORDER NO. AD940925302

RA1oo1 MECHANISM SERIES

SPECIFICATIONS

I Signal Format

Tape recording system:

Sampling frequency:
Analog input recording
PlaybackIDigltal Input recording

Rotary head type DAT

48kHz, 44.1 kHz

48kHz, 44.1 kHz, 32kHz
(selected automatically)
16-bit linear

2 (stereo)

'No. of quantizing bits:
No. of channels:

I Audio Parameters
(Analog recording and Playback System)

Frequency response:
is: 48kHz
ts: 44.1 kHz
Total harmonic distortion:

10Hz-22000 kHz (i0.5dB)
10Hz-20000 kHz (10.5dB)

Less than 0.05% (-18dB, 1kHz)*
Less than 0.007% (OdB, 1kHz)*
Dynamic range: Greater than 92dB*
SN ratio: Greater than 92dB*
*DIN audio weighted (22.4Hz to 22.4kHz bandpass filter)

Wow and flutter: Unmeasurable

I Remote Control
Parallel remote: 8 pin DIN connector (60 functions available)

GPI remote: Stereo 6mm jack (Play & Pause functions)
I Inputhutput jacks
Analog input:
Input jacks XLR~3 type
Nominal Input level (-18dB rec level) +4dBu
Input impedance 10kt) balanced
Analog output:
Output lacks XLFI-3 type
Nominal output level (-18dB) +4l-10dBu

Output impedance 75D balanced
Headphones output:
Maximum level

Matching Impedance

Panasonic®

so mw+so mW (32(2)
a-sooo

. DAT
Colour
(H) Gray Type
Area
Suffix for
Model No. Area Colour
(EB) Great Britain. (H)
(EG) Germany and Italy.
Digital (AESIEBU type):
Input XLR-S type/1100 balanced
Output XLR-3 type/1100 balanced
Digital (IEC type 11):
input RCA phono type (Coaxial)l750, Optical
Output FICA phono type (Coaxial)l750, Optical
Video sync Input:
Input jack BNC type

NTSC: 29.97 FPS, 30 FPS
PAL/SECAM: 25 FPS

Input signal

Nominal input level 1Vp-p/75Q
Word Sync Input:

Input lack BNC type

Input level I'I'L Level compatible/750
Word Sync Output:

Output jack BNC type

Output level TTL Level compatible/75!)

I Mechanism

Cylinder diameter: 30mm
Cylinder rotation speed: 200r.p.rn.
Tape speed:
(Normal track) 8.150mmlSec.
(Wide track) 12.225mmlSeo.

Up to 250 times normal playback speed
Up to 250 times normal playback speed
Approx. 35590. (2 hours DAT tape)

Search speed:
FFlFlewind speed:
FF/Rewind time:

I General

Power consumption: 35W
Power supply: AC 50 H2160 Hz, 230 - 240V
External Dimensions (W X H x D): 430 x122 x 315mm
Weight: 6.4 kg

Note: .
Design and specifications are subject to change without notice.
Weight and dimensions are approximate.
