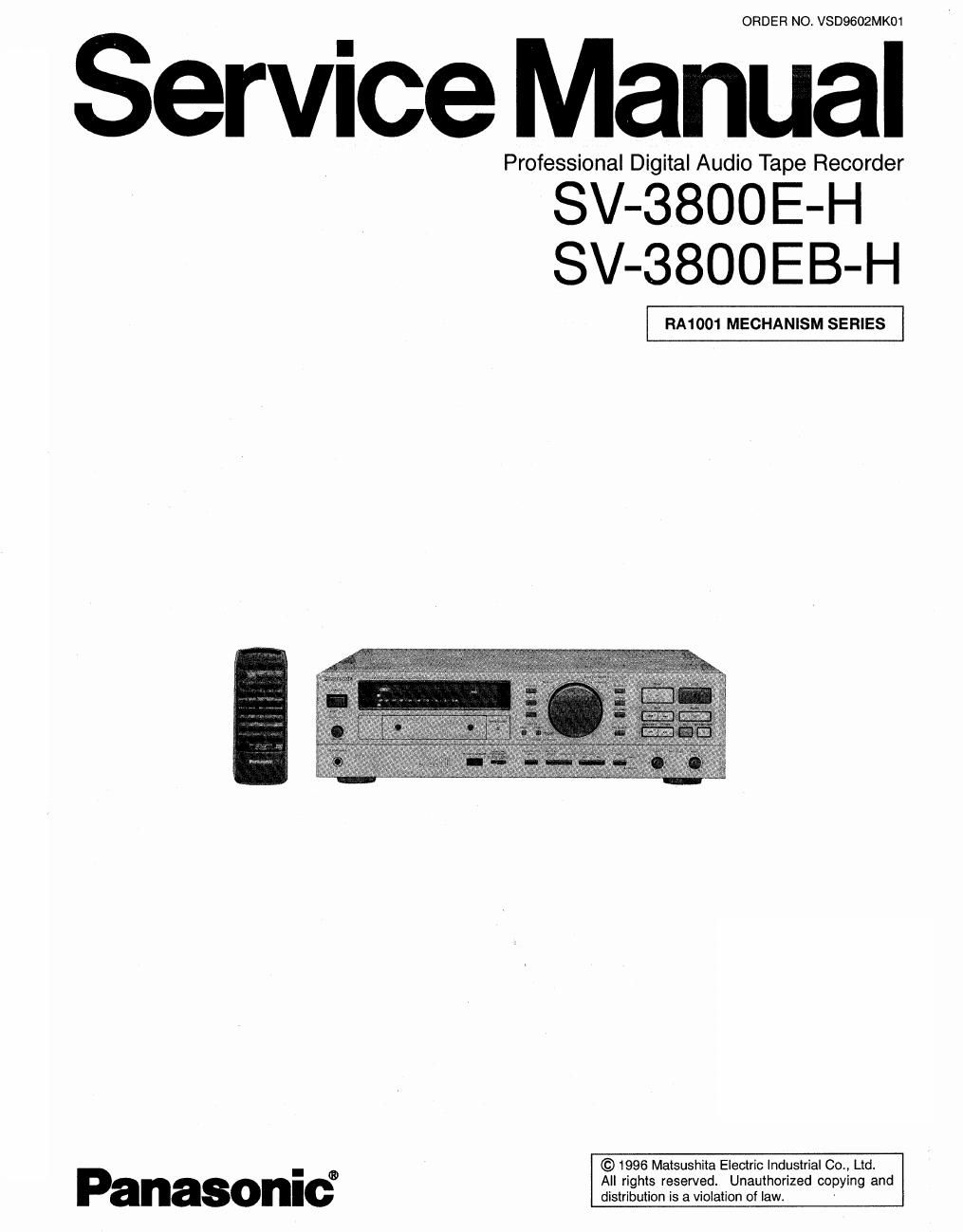

Page 1

ORDER NO. VSDQGOZMK01

Service Manual

Professional Digital Audio Tape Recorder

SV-3800E-H
SV-3800EB-H

RA1001 MECHANISM SERIES

©1996 Matsushila Electric Industrial Co., Ltd.

- ® All rights reserved. Unauthorized copying and
nasonlc distribution is a violation of law. >

Page 2

sv-aeoo

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to ser- fl
vice or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Specifications
Signal format
Remote control
Tape recording system: Rotary head type DAT
Sampling frequencies Parallel remote: 8 pin DIN connector
(selected automatically): (50 functions available)
Analog input
recording 48 kHz, 44} kHz
Playback/Digital Mechanism
input recording 48 kHz, 44.1 kHz, 32 kHz
Cylinder diameter: 30 mm
No. of quantizing bits: 16-bit linear Cylinder rotation speed: 2000 r hm~
Not of channels: 2 (stereo) Tape speed: ,m
(Normal track) 8.150 mm/s
. (Wide track: Music tape) 12.225 mm / 5
Audio parameters Search speed: Up to 250 times normal playback
(Recording and Playback System) speed
FF/Rewind speed: Up to 250 times normal playback
Frequency response: speed
ts: 48 kHz 10 Hz-ZZOOO Hz (:05 dB) FFfRewind time: Approx. 35 5
fs 44.1 kHz 10 Hz-ZOOOO Hz (:05 dB) (2 hours DAT tape)
fs: 32 kHz
(only playback) 10 Hz-14500 Hz (10.5 dB)
Total harmonic Genera]
distortion: Less than 0.03% A
(*4 dBu, 1 kHZ) Power consumption: 30 W
L955 than 0007?" Power supply: AC 50 Hz, 230-240 V
(+22 dBu, 1 kHz) Dimensions
Dynamic range: Greater than 92 dB (WXHXD): 430x122><315 mm
SIN: Greater than 92 dB' Weight: 53 kg
Wow and flutter. Unmeasurable
~ . Note:
DIN audio weighted (22.4 HZ to 22A kHz Specifications are-subject to change without notice.
bandpass filter) Weight and dimensions are approximate.
Terminals ../\.
Analog input:
Input jacks XLR-3 type
Nominal
input level
(-18 dB rec level) +4 dBu
Input impedance 10 k9 balanced
Analog output:
Output jacks XLR-3 type
Nominal output
level (-18 dB) +4/-10 dBu
Output impedance 50 Q balanced
Headphones output:
Maximum level 30mW+30mW (32 9)
Matching
impedance 8~600 9
Digital (ABS/EBU type):
Input XLR-3 type/ 110 Q balanced
Output XLR-3 type / 110 Q balanced , «a
Digital (IEC type 11):
Input RCA phono type
(Coaxial)/ 75 9, Optical
Output RCA phono type

(Coaxial) / 75 9, Optical
