Panasonic sl ch515
This is the 30 pages manual for panasonic sl ch515.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sl ch515 (Ocr-read)

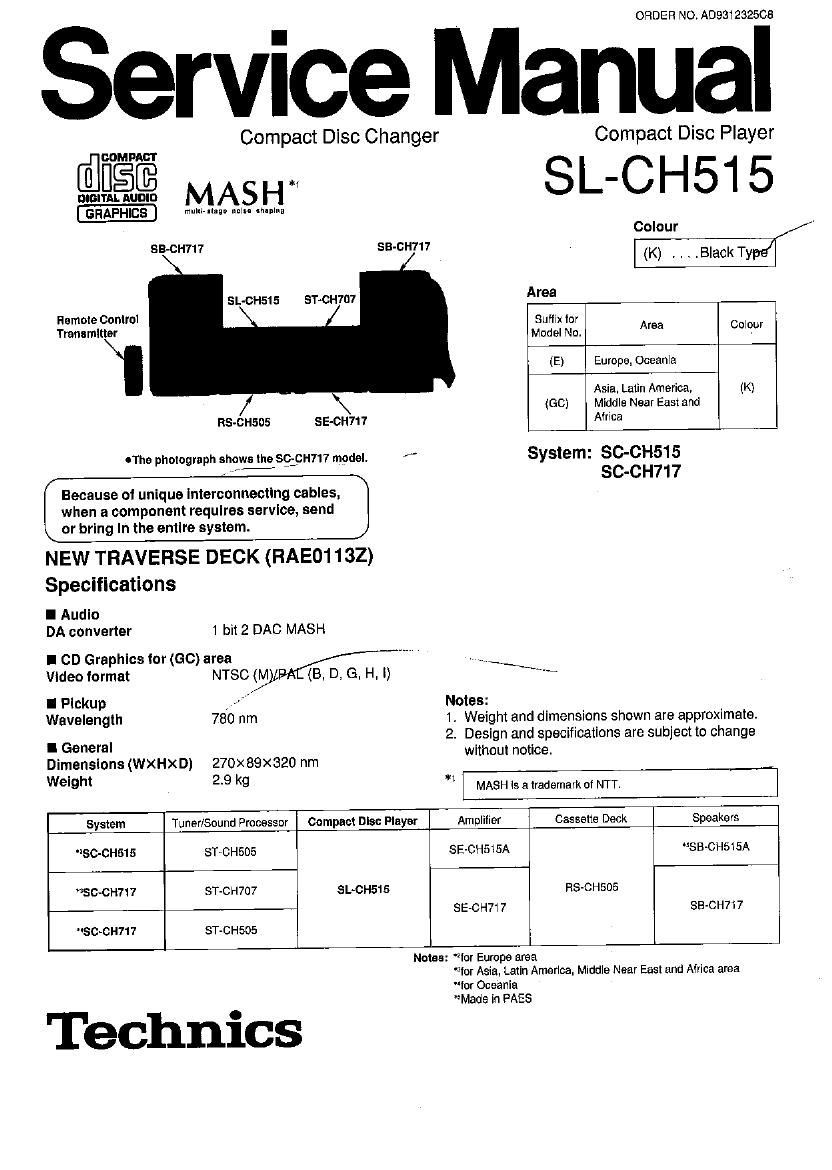

Page 1
ORDER NO, A0931232508
Service Manual
Compact Disc Changer
GOMPAC'I
QB MASH
DIGITAL AUDID
GRAPHICS
SBvC H71 7
mulli-Illg- nnlu mun-n
SL~CH515 ST-CH 707
Remote Control
Tronaml Iler
RSvCHSOS
SE-OHM 7
oThe photograph shows therS(_.-§H717 model.
Because at unique lnterconnectlng cables,
when a component requires service, send
or bring In the entire system.
NEW TRAVERSE DECK (RAE0113Z)
SB-CH71 7
I.
Compact Disc Player
SL-CH515
Colour
(K) ....B|ackT
Area
Suitixlor
Model No. Area Colour
(E) Europe, Oceanla
Asia. Latin America, 1K)
(GO) Middle Near East and
Africa
System: SC-CH515
SC-CH717
Specifications
I Audio
DA converter 1 bit 2 DAC MASH
l CD Graphics (or ((30) area \
Video tormat NTSC {M (B, D, G, H, l) E a
l Pickup , Notes:
Wavelength 780 nm 1. Weight and dimensions shown are approximate.
2. Design and specifications are subject to change
I General without notice.
Dimensions (le-lxD) 270x89><320 nrn
we'ght 29 kg N MASH is a trademark oi NTT.
System Tuner/Sound Processor Compact Disc Player Amplifier Cassette Deck Speakers
"Sc-CH515 ST-CH505 SE-0H515A "SBvCH515A
usc-cmw ST-CH707 SL-CH515 HS-CH505
SE-CH717 SB-CH717
"sc-cmw ST-CHSOS
Technics
Notes: tor Europe area
tor Asia, Latin America. Middle Near East and Africa area
"for Oceania
"Made in PAES
Page 2
SL-CH515
lContents
IHANDLING PRECAUTIONS FOR TRAVERSE DECK
'PRECAUTION CF DIODE
ILOCATION 0F CONTROLS ,
.LISTENING TO COMPACT DISCS
Page
. 2
IDISASSEMBLY INSTRUCTIONS 7~l4
.HOW TO CHECK THE SERVO AND MAIN P.C.B. 15. 16
CINSTALLATION OF THE LOADING COMPONENTS .. 1648
.INSTALLATION OF THE TRAY BASE
AND THE TRAY ASS'V 18
CBLOCK DIAGRAM ..... 19~22
OSCHEMATIC DIAGRAM ...................... . 23 ~80
OPRINTED CIRCUIT BOARD DIAGRAM . 31~S4
NOTE :
Pa a
OWIRINGCONNECTION DIAGRAM (I15
OMEASUREMENTS AND ADJUSTMENTS as. 37
lABOUT THE SELFDIAGNOSTIC MODE .. 38. 39
IDiSPLAY FUNCTION OF
AUTOMATICALLY-ADJUSTED RESULTS .. 40
ONEW DIGITAL SERVO SYSTEM
OTROUBLESHOOTING GUIDE
.WHAT IS CD GRAPHICS
.FUNCTION OF IC TERMINALS
.REPLACEMENT PARTS LIST .
OCABINET PARTS LOCATION ..
.LOADING UNIT PARTS LOCATION
.. 41
42.43
44~47
48~53
54~58
59, 60
61
Refer to the service manual tor Model No. SE-CHstsA (Order No. DA931232302) or SE-CH717 (Order No.
A09312322C3) for Information on ACCESSORIES". STACKING THE COMPONENTS", "CONNECTIONS" and
PACKING".
lHandling Precautions for Traverse Deck
The laser diode In the traverse deck (optical pickup) may break down due to potential dtiterence caused by static electricity of clothes or
human body.
So. be careful ot electrostatic breakdown during repair ol the traverse deck (optical pickup).
OHendllng of traverse deck (optical pickup)
1. Do not subject the traverse deck (optical pickup) to static
electricity as It Is extremely sensitive to electrical shock.
2. To prevent the breakdown oi the laser diode. en antistatic
shoning pin 55 Inserted Into the llexible board (F PC board).
When removing or connecting the short pin. finish the job in as
shon time as possible.
3. Take care not to apply excessive stress to the flexible board (FPO
board).
4. Do not turn the variable resistor [laser power odlustmenl). It has
already been adjusted.
OGroundlng tor electrostatic breakdown
prevention
1. Human body grounding
Use the anti-static wrist strap to discharge the static electricity
tram your body.
2. Work table grounding
Put a conductive material (sheet) or steel sheet on the area where
the traverse deck (optical pickup) ls placed. and ground the sheet.
Caution:
The static electricity oi your clothes will not be grounded through the
wrist strap. So. take care not to let your clothes touch the traverse
deck (optical pickup).
lPrecaution of Laser Diode
Variable resistor
(Do not turn)
FPC
Be sure to short this portion
(Use the shorting pin or clip)
Iron plate or some metals
to conduct electricity
CAUTION: This product utilizes a laser diode with the unit turned "0 n", invisible laser radiation is emitted irom the pi ck up tens.
Wave length: 780 nm
Maximum output radiation power from pick up: 100 uWNDE
Laser radiation horn the pick up unit is selety level. but be sure the tollowings:
1. Do not disassemble the optical pick up unit, since radiation lrom exposed laser diode Is dangerous.
2. Do not adiust the variable resistor an the pickup unit. It was already adjusted.
a. Do not luck at the focus tens using optical instruments.
6. Recommend not to look at pick up lens tor a long time.
