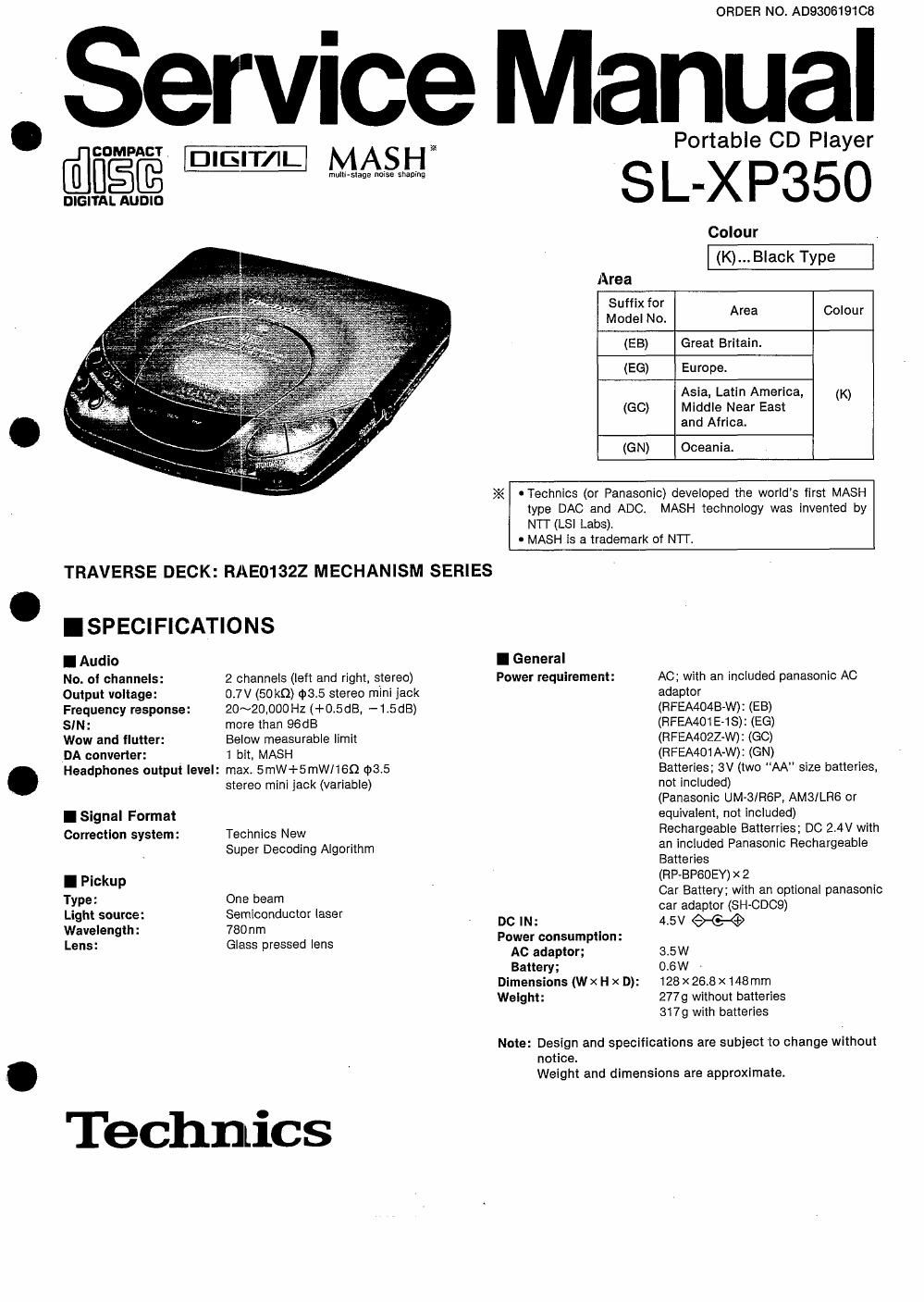

Page 1
ORDER NO. AD930619108
Service Manual
@MW _lGlT/IL
multi- Ms-tagAe noise Ssthing
DIGITAL AUDIO
TRAVERSE DECK: RAE01322 MECHANISM SERIES
I SPECIFICATIONS
I Audio
No. oI channels: 2 channels (left and right, stereo)
Output voltage: 0.7V (50 km) $3.5 stereo mini jack
Frequency response: 20~20,000 Hz (+0.5dB, --1.5dB)
SIN: more than 96dB
Wow and flutter: Below measurable limit
DA converter: 1 bit, MASH
Headphones output level: max, 5mW+5mWI1GQ $8.5
stereo mini jack (variable)
I Signal Format
Correction system: Technics New
Super Decoding Algorithm
I Pickup
Type: One beam
Light source: Semiconductor laser
Wavelength: 780nm
Lens: Glass pressed lens
Technlics
Portable CD Player
SI.- XP35O
Colour _
(K)... Black Type
Area
Suffix for
Model No. Area Colour
(EB) Great Britain.
(EG) Europe.
Asia, Latin America, (K)
(GC) Middle Near East
and Africa.
(GN) Oceania.
>2< OTechnics (or Panasonic) developed the worlds first MASH
type DAC and ADC. MASH technology was invented by
NTI' (LSI Labs),
. MASH is a trademark of NIT,
I General
Power requirement:
DO IN:
Power consumption:
AC adaptor;
Battery;
Dimensions (Wx H x D):
Weight:
AC; with an included panasonic AC
adaptor
(FIFEA4O4BPW): (EEBG))
(RFEA401E-:18)(
(RFEA402Z W) (GEO)
(RFEA401A W) (GN)
Batteries; 3V (two AA size batteries,
not included)
(Panasonic UM-3/R6P, AMS/LRG or
equivalent, not included)
Rechargeable Batterries; DC 2.4V with
an included Panasonic Rechargeable
Batteries
(RP~BP60EY) x 2
Car Battery: with an optional panasonic
oar adaptor (SH-CD09)
4,5V W
3.5W
0,6W ~
128x26.8x 148mm
2779 without batteries
3179 with batteries
Note: Design and specifications are subject to change without
notice.
Weight and dimensions are approximate.
Page 2
SL-XP350 |
I CONTENTS
LOCATION OF CONTROLS ...........................................
ACCIDENTAL OPERATION PREVENTION FUNCTION..
ACCESSORIES ...........................
PRECAUTION 0F LASER DIODE.
POWER SOURCE .......................
LISTENING TO CD TRACKS IN THEIR
ORIGINAL SEQUENCE (Normal Play)
USING THE PLAYER WITH OPTIONAL ACCESSORIES
' HANDLING PRECAUTION FOR TRAVERSE DECK
DISASSEMBLY INSTRUCTIONS ............................
HOW TO INSTALL THE SWITCH KNOB
(HOLD, PLAY MODE, ASClS-XBS) ..
HOW TO CHECK THE MAIN P.C.B. (Component Side).
HOW TO CHECK THE MAIN P.C.B. (Solder Side) ......
I LOCATION OF CONTROLS
CHECKING THE OPERATION PROBLEMS ON THE
TRAVERSE DECK (OPTICAL PICKUP)
NOTE FOR SERVICE .............................
MEASUREMENTS AND ADJUSTMENTS
DISPLAY FUNCTION OF AUTOMATICALLY-ADJUSTED
RESULTS (SELF-CHECK FUNCTION). 16, 17
BLOCK DIAGRAM ........
SCHEMATIC DIAGRAM ..
PRINTED CIRCUIT BOARDS AND
WIRING CONNECTION DIAGRAM ..
TERMINAL FUNCTION OF ICS
REPLACEMENT PARTS LIST
CABINET PARTS LOCATION.
RESISTORS AND CAPACITORS
PACKAGING
® Open button (OPEN)
® Memory/recall button
(MEMORY/RECALL)
© Push button (PUSH)
' @ Skip/search buttons
(m-SKIPI-SEARCH p)
(5) Repeat button (REPEAT)
© Display
6) Stop/operation off button
(I STOP/CPR OFF)
Earphones/headphones
volume control (VOLUME)
Play/pause button
(> Il PLAY/PAUSE)
® ASClS-XBS selector
(ASC/S-XBS)
® Earphones/headphones jack
(0)160 4:35
@ Out jack (OUT)
® DC in jack
(DC IN 4.5 v e-Co-e )
@ Hole for car insulator mounting
screw
69 Operation indicator (MASH)
® Play mode selector
(PLAV MODE)
@ Hold switch (HOLD)
Slider
Slide up to prevent entangling of the
cord when the stereo earphones are
not in user
.ACCIDENTAL OPERATION PREVENTION FUNCTION
This function prevents the player from op-
erating even if its function buttons are
pressed accidentally. (However. the disc
lid can be opened or closed.)
After operating any of the buttons, it Is a
good idea to keep the switch at the HOLD
position.
Before operation, release the player
from the hold state.
I HOLD display
When a function button is pressed with
the switch at the HOLD position, the
/70 ,' 0'" indicator appears on the dis
play. (In the OFF mode, it appears
only when the PLAY/PAUSE button is
pressed.)
HOLD slate
