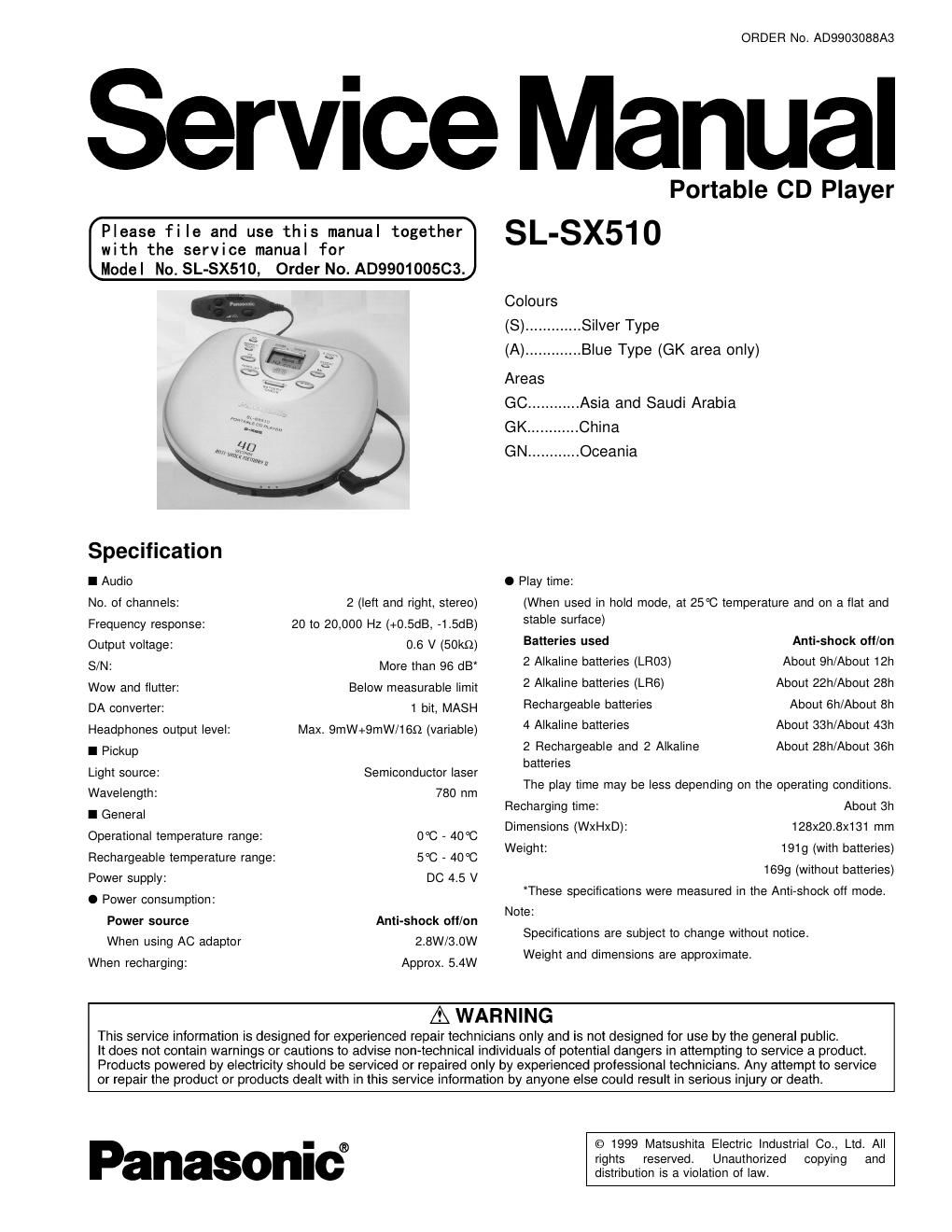

Page 1

ORDER No. AD9903088A3

Service Manual

Please file and use this manual together
with the service manual for
Model No. SL-SX510, Order No. AD9901005C3.

Specification
I Audio

No. of channels:
Frequency response:
Output voltage:

S/N:

Wow and flutter:

DA converter:
Headphones output level:
I Pickup

Light source:
Wavelength:

I General

Operational temperature range:

Rechargeable temperature range:

Power supply:
0 Power consumption:
Power source

2 (left and right, stereo)

20 to 20,000 HZ (+0.5dB, -1.5dB)
0.6 v (50kg)

More than 96 dB

Below measurable limit

1 bit, MASH

Max. 9mW+9mW/16S2 (variable)

Semiconductor laser
780 nm

0°C - 40°C
5°C - 40°C

DC 4.5 V

Anti-shock off/on

Portable CD Player
SL-SX510

Colours

(S) ............. Silver Type

(A) ............. Blue Type (GK area only)
Areas

GC ............ Asia and Saudi Arabia
GK ............ China

GN... .Oceania

0 Play time:

(When used in hold mode, at 25°C temperature and on a flat and
stable surlace)

Anti-shock off/on
About 9h/About 12h
About 22h/About 28h
About (Sh/About 8h
About 33h/About 43h
About Zen/About 36h

Batteries used

2 Alkaline batteries (LR03)
2 Alkaline batteries (LR6)
Rechargeable batteries

4 Alkaline batteries

2 Rechargeable and 2 Alkaline
batteries

The play time may be less depending on the operating conditions.
About 3h
128x20.8x131 mm
1919 (with batteries)
1699 (without batteries)
These specilications were measured in the Anti-shock oll mode.
Note:

Recharging time:
Dimensions (WxHxD):
Weight:

Specifications are subject to change without notice.

When using AC adapter 2.8W/3.0W _ _ _ _
When recharging: Approx. 5.4W Weight and dimensrons are approxrmate.
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic®

© 1999 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

CONTENTS

Page Page
1 Simplement Guide ------------------------------------------------------------------ 2 5 Printed Circuit Board and Wiring Connection Diagram ........ 1o
2 Accessories ----------------------------------------------------------------- 2 6 Replacement Parts List --------------------------------------------------------- 12
3 Schematic Diagram Notes ------ --3 6.1. Electrical Parts List (Original) .............. 12
3.1. Schematic Diagram Note 6.2. Cabinet and Chassis Parts List (Original) 14
3-2. Type Illustration of Kim Transistors and Diodes ------------- 3 6.3. Packaging and Accessories Parts List (Original) ............ 15

4 Schematic Diagram ---------------------------------------------------------------- 4

1 Simplement Guide

This manual mention the revision of SL»SX510.
- Accessories
- Schematic Diagram (Original)
- Printed Circuit Board Diagram (Original)
- Replacement Parts List
Electrical Parts List (Original)
Cabinet and Chassis Parts List (Original)
Packaging and Accessories Parts List (Original)
The other items are refered service manual for SL»SX510.

2 Accessories

- AC adaptor ...................................... 1 pc.

- Stereo earphones ............................ 1 pc.
For areas (GC) and (GK)

A Cord clip .................................... 1 pc.

- Wired remote control ....................... 1 pc.

- External battery case ........... .. 1 pc.

- Nickel-metal hydride batteries 2 pcs.

- Battery carrying case ........... .. 1 pc.
Remove the rechargeable batteries from their case
before use. If the inner tray is removed, the case
can be use to carry 2 LR6 (UM-3) batteries, used

in the external battery case.

-Soft case. .. 1 pc.
For area (GC)
- Power plug adaptor ......................... 1 pc.
