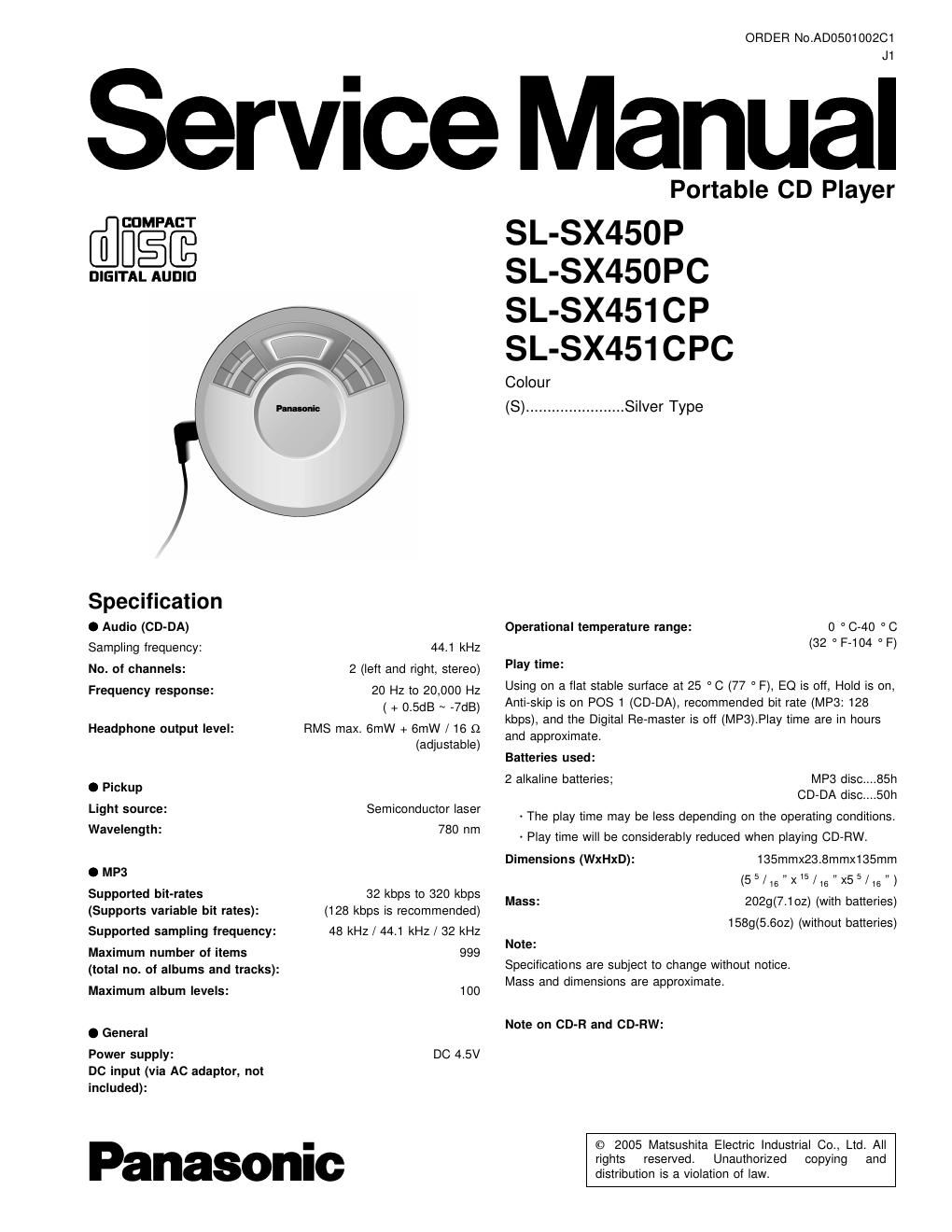

Page 1

ORDER No.AD050100201

Service Manual

[flfigfi

DIGITAL AUDIO

Specification
0 Audio (CD-DA)
Sampling lrequency:
No. of channels:

Frequency response:

Headphone output level:

0 Pickup
Light source:
Wavelength:

. MP3

Supported bit-rates
(Supports variable bit rates):

Supported sampling frequency:
Maximum number at items

(total no. of albums and tracks):

Maximum album levels:

0 General

Power supply:

DC input (via AC adaptor, not
included):

44.1 kHz
2 (left and right, stereo)

20 Hz to 20,000 Hz
(+ 0.5ch ~ -7dB)

RMS max. 6mW + 6mW / 16 £1
(adjustable)

Semiconductor laser
780 nm

32 kbps to 320 kbps
(128 kbps is recommended)

48 kHz / 44.1 kHz / 32 kHz
999

100

DC 4.5V

Panasonic

Portable CD Player

SL-SX450P
SL-SX450PC
SL-SX451CP
SL-SX451CPC

Colour
(8) ....................... Silver Type

0 °c-40 Dc
(32 °F-104 °F)

Operational temperature range:

Play time:

Using on a flat stable surtace at 25 ° C (77 ° F), E0 is off, Hold is on,
Anti-skip is on P08 1 (CD-DA), recommended bit rate (MP3: 128
kbps), and the Digital Re-master is off (MP3).Play time are in hours
and approximate.

Batteries used:

2 alkaline batteries; MP3 disc....85h

CD-DA disc....50h
~ The play time may be less depending on the operating conditions.

- Play time will be considerably reduced when playing CD-RW.
Dimensions (WxHxD): 135mmx23.8mmx135mm
(53/16"Xm/rsnfia/rs")
2029(7.1oz) (with batteries)
1589(5602) (without batteries)

Mass:

Note:

Specifications are subject to change without notice.
Mass and dimensions are approximate.

Note on CD-R and CD-FIW:

© 2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation oi law.
