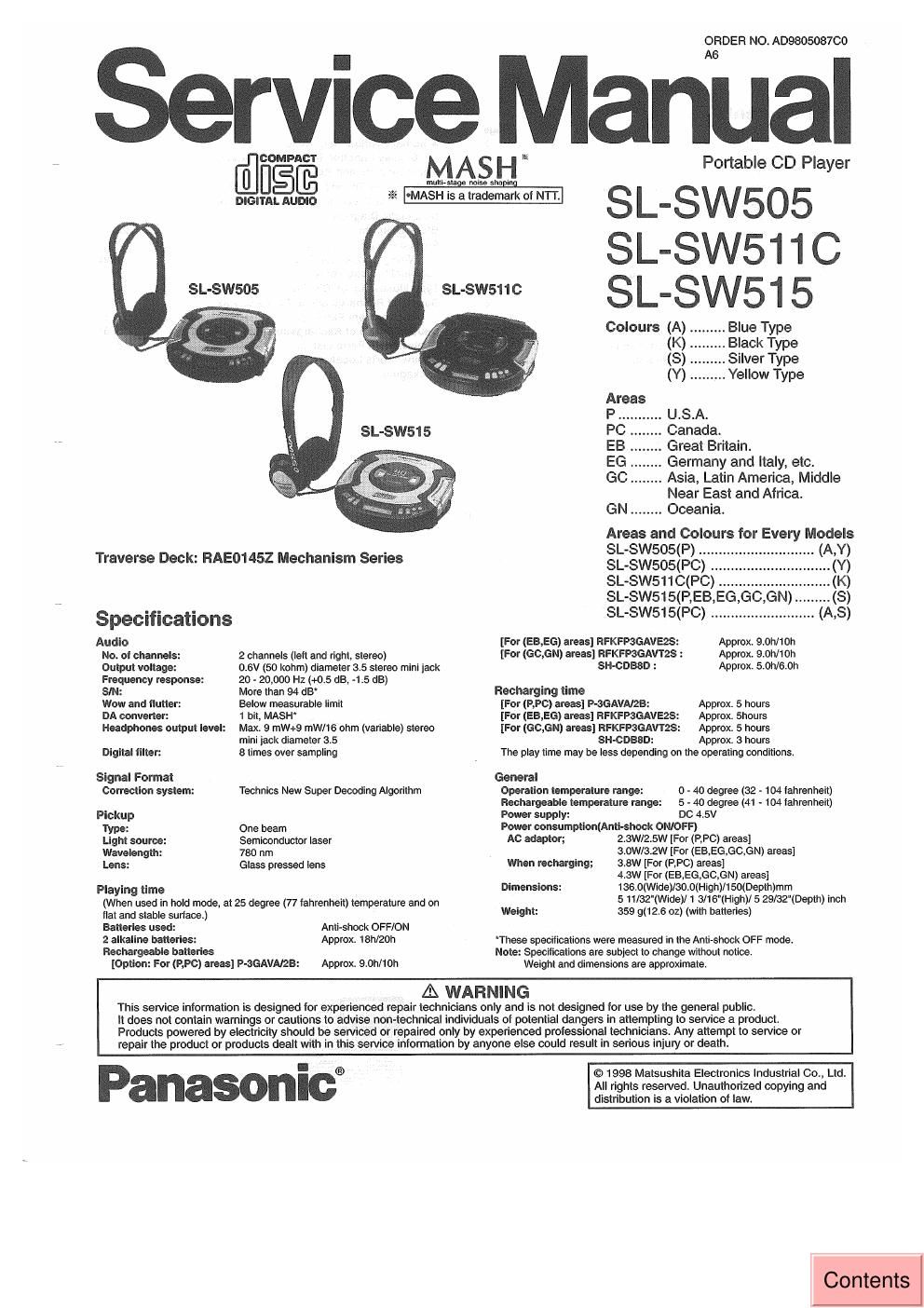

Page 1

ORDER NO. A09305087CO

Service Manual

[filfiogncr M An... . ..H Portable CD Player
DIGITAL AUDIO '.' S L- SW505

SL-SW505

Traverse Deck: RAEO14SZ Mechanism Series

Specrflcatlons
Audlo
No. of channels: 2 channe|s (left and right. stereo)
Output voltage: 0.6V (50 kohm) dlameter 3.5 stereo mlni jack
Frequency response: 20 - 20,000 Hz (+0.5 dB, -1.5 dB)
SIN: More than 94 dB'
Wow and flutter: Below measurable limit
DA converter: 1 bit, MASH

Headphones output level: Max. 9 mW+9 mW/16 ohm (variable) stereo
mini jack diameter 3.5
Digital filter: 8 times over sampling

Signal Format

Correction system: Technics New Super Decoding Algorithm
Pickup

Type: One beam

Light source: Semiconductor laser

Wavelength: 780 nm

Lens: Glass pressed lens
Playing time

(When used in hold mode, at 25 degree (77 fahrenheit) temperature and on
flat and stable surface.)
Batteries used: Anti-shock OFF/0N
2 alkaline batteries: Approx. Nah/20h
Rechargeable batteries

[Optiom For (P,PC) areas] P-3GAVAI23: Approx. 9.0h/10h

SL-SW511 C
SL-SW515

Colours (A) .Blue Type
(K) . Black Type
(S) . Silver Type
(Y) . Yellow Type

Areas

P .. . U.S.A.

PC . Canada.

EB . Great Britain.

EG . Germany and Italy, etc.

Go ........ Asia, Latin America, Middle
Near East and Africa.
GN ........ Oceania.

Areas and Colours for Every Models


SL-SW505(P) . .. (A,Y)
SL-SW505(PC) .(Y)
SL-SW511C(PC) .

SL-SW515(P,EB,EG,GC,GN)
SL-SW515(PC) ................

[For (EB,EG) areas] RFKFPSGAVEzs: Approx. 9.0h/10h
[For (com) areas] nFKFpsGAV'rzs : Approx. 9.0h/10h
SH-CDBBD : Approx. 5.011/6.0h

Recharging time
[For (F,PC) areas] MGAVAIZB: Approx. 5 hours
[For (EB,EG) areas] RFKFPSGAVEZS: Approx. 5hours
[For (GC,GN) areas] HFKFPSGAVTzS: Approx. 5 hours
SH-CDBSD: Approx. 3 hours
The play time may be less depending on the operating conditions.

General
Operation temperature range: 0 - 40 degree (32 - 104 fahrenheit)
Rechargeable temperature range: 5 - 40 degree (41 ~ 104 iahrenheit)
Power supply: DC 4.5V
Power consumptioMAnti-shock ONIOFF)
Ac adaptor; 2.3W/2.5W [For (RFC) areas]

3.0W/3.2W [For (EB,EG,GC.GN) areas]
When recharging; 33W [For (PFC) areas]
4.3W [For (EB,EG.GC.GN) areas]

Dimensions: 136.0(WIde)/30.0(High)/150(Depth)mm
5 11l32iWide)! 1 3/16"(H|gh)l 5 29/32(Depth) inch
Weight: 359 gitas oz) (with batterles)

These specificahons were measured in the Anti-shock OFF mode.
Note: Specifications are subject to change without notice.
Weight and dimensions are approximate.

A WARNING
This service iniormation is designed for experlenced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be sennced or repaired only by experienced prolesslonal technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic®

© 1993 Matsushita Electronics Industrial Co.. Ltd.
All rights reserved Unauthorized copying and
distribution is a violation of law.

Contents

Page 2

SL-SW505I SW51 1 CISW51 5

I Contents
Page

Precautlon of Laser Diode 2 Automatic Adjustment Results

Accessories 3 Display Function (Sell-check Function)

Location of C 3 " Irements and Adlustments ..............

Accidental Operation Prevention Function .. 3 Outline of 40-Second Sound Keeper Technique

Power Supply Preparations 4 User tor Prevention oi Sound irorn Skipping

Anti-Shock Function . 4 Schematic Diagra

Sequential Flay 5 Block Diagram ..

Other Play Methods 6 Printed Circuit Board and

Maintaining the Len 6 Wiring Connection Diagram

Using the Unit with Optical Accessories .. 7 Terminal Function of lC's

Cautions 7 Type Illustration of IC's, Transistors and Diodes

Handling Precautions for Traverse Deck .................................. 8 Supply of Rechargeable Battery Ass'y as

Operation Checks and Replacement Parts .................................. ..
Component Replacement Procedures 9~12 Caution In Use at Rechargeable Battery Ass y . 33

Checking the Operation Problems on the Replacement Parts List .. 34~39
Traverse Deck (Optional Pickup) ....................................... 13 Cabinet Parts Location . 36

Packaging 37~39

Precaution of Laser Diode
[For (P,PC) areas only]

CAUTION: This unit utilizes a class 1 laser. Invisible laser radiation is emitted from the optical pickup lens when the unit is

turned on:
Do not look directly into the pickup lens.

WQPPN.

hazardous radiation exposure.

[For (EB, EC, 60, GN) areas only]

Do not use optical instruments to look at the pickup lens.

Do not adjust the preset variable resistor on the optical pickup.

Do not disassemble the optical pickup unit.

It the optical pickup is replaced, use the manuiactures specified replacement pickup only.

Use of control or adjustments or performance oi procedures other than those specified herin may result in

CAUTION: This product utilizes a laser diode with the unit turned on, invisible laser radiation is emitted from the pickup lens.

Wave length: 780 nm

Maximum output radiation power trom pickup: 100 pWNDE

Laser radiation from the pickup lens is saiety level, but be sure the followings:

1. Do not disassemble the optical pickup unit, since radiation from exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pickup unit. It was already adjusted.

3. Do not look at the iocus lens using optical instruments.
4. Recommend not to look at pickup lens tor a long time.

ACHTUNG: Disses Produkt enthalt eine Laserdiode. lm eingeshalteten Zustand wird unsichlbare Leserstrahlung von der
Lasereinheit abgestrahlt.

Wellenlange: 780 nm
Maximale Strahlungsleistung der Lasereinheit: 100 pWNDE

Die Strahlung an der Lasereinheit ist ungeiahrlich, wenn tolgende Punkte beachtet werden:

1. Die Lasereinheit nicht zerlegen, da die Strahlung an der ireigelegten Laserdiode getahrlich Ist.
2. Den werkseitig justierten Einstellregler der Lasereinhit nicht verstellen.

3. Nicht mit optischen Instrumenten in die Fokussierlines blicken.

4. Nicht fiber tangere Zeit in die Fokussieriines blicken.

ADVARSEL: I dette a apparat anvendes laser.

HOL50195

[Bottom side]
