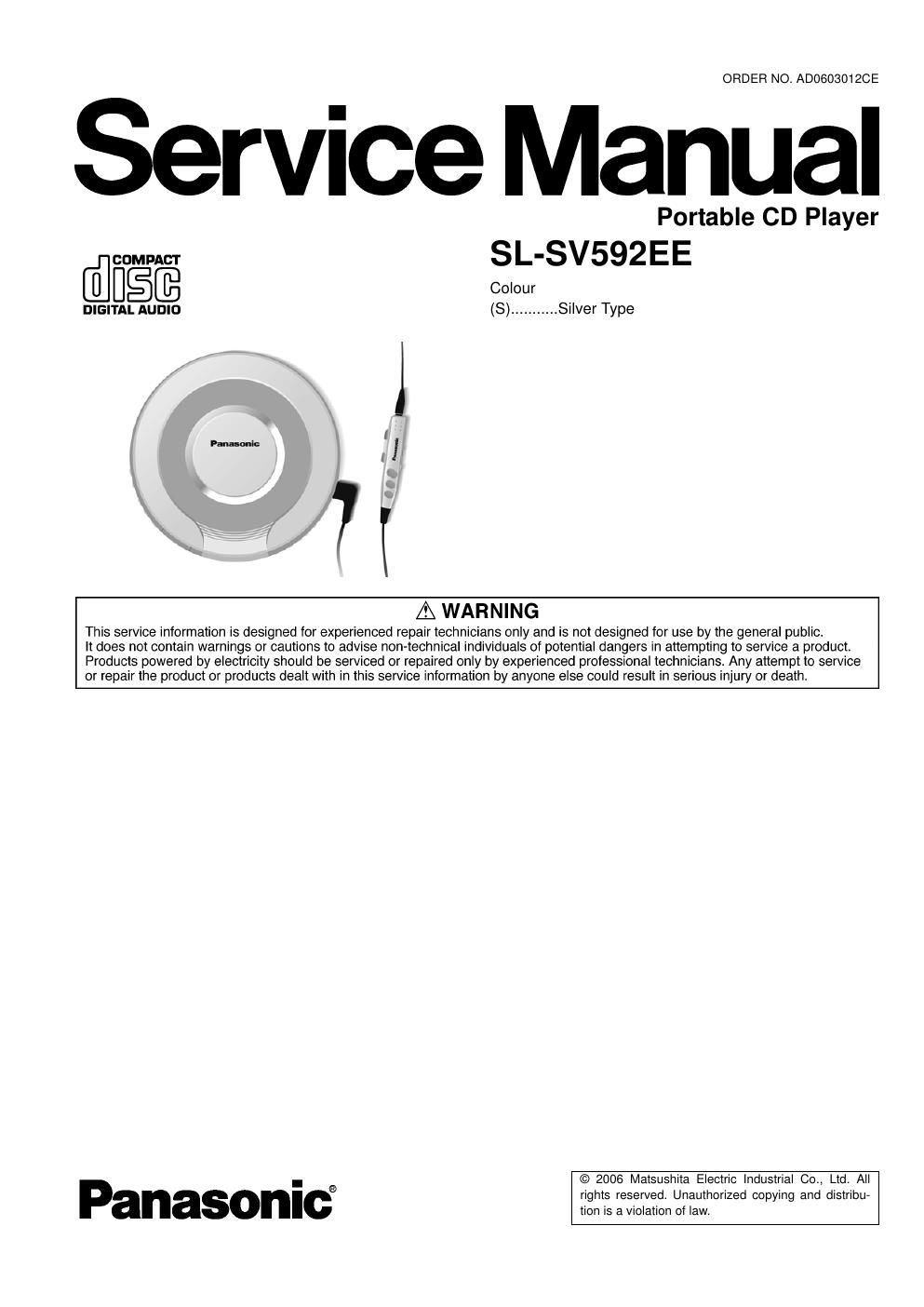

ORDER NO. AD060301ZCE

Service Manual

Portable CD Player

[filfigfi SL-SV592EE

Colour
(8) ........... Silver Type

DIGITAL AUDIO

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public,

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians, Any attempt to service
or repair the product or products dealt with in this service iniormation by anyone else could result in serious injury or death.

Panasonic?

© 2006 Matsushita Electric Industrial (30., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a Violation ol law.

Page 2

TABLE OF CONTENTS

PAGE

1 Safety Precaution ------------------------------------------------- 3

1.1. Precaution of Laser Diode ------------------

1.2. Handling Precautions for Traverse Deck

2 Service Navigation ------------------------------------------------ 5
2.1. General Description About Lead Free Solder

(PbF)

3 Specifications--

4 Location of Controls and Components-

4.1. Accessories ------------

4.2. Location of Controls -

5 Service Mode ------------------------------------

5.1. Display of Self-Diagnostic Function

6 Troubleshooting Guide ------------------------------------------ 8
6.1. Checking the Operation Problems on the

Traverse Deck (Optical Pick-up) -

7 Disassembly and Assembly Instructions-

7.1. Checking forthe PCB ---------------------

7.2. Replacement for the traverse motor---

7.3. Replacement for the optical pick-up---

7.4. Replacement for the rest switch --

8 Measurements and Adjustments ------
8.1. Automatic Adjustment Results Display

Function (Self-Check Function) ---------------------- 14

PAGE
