Panasonic sl sv 590 eb service manual
This is the 36 pages manual for panasonic sl sv 590 eb service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sl sv 590 eb service manual (Ocr-read)

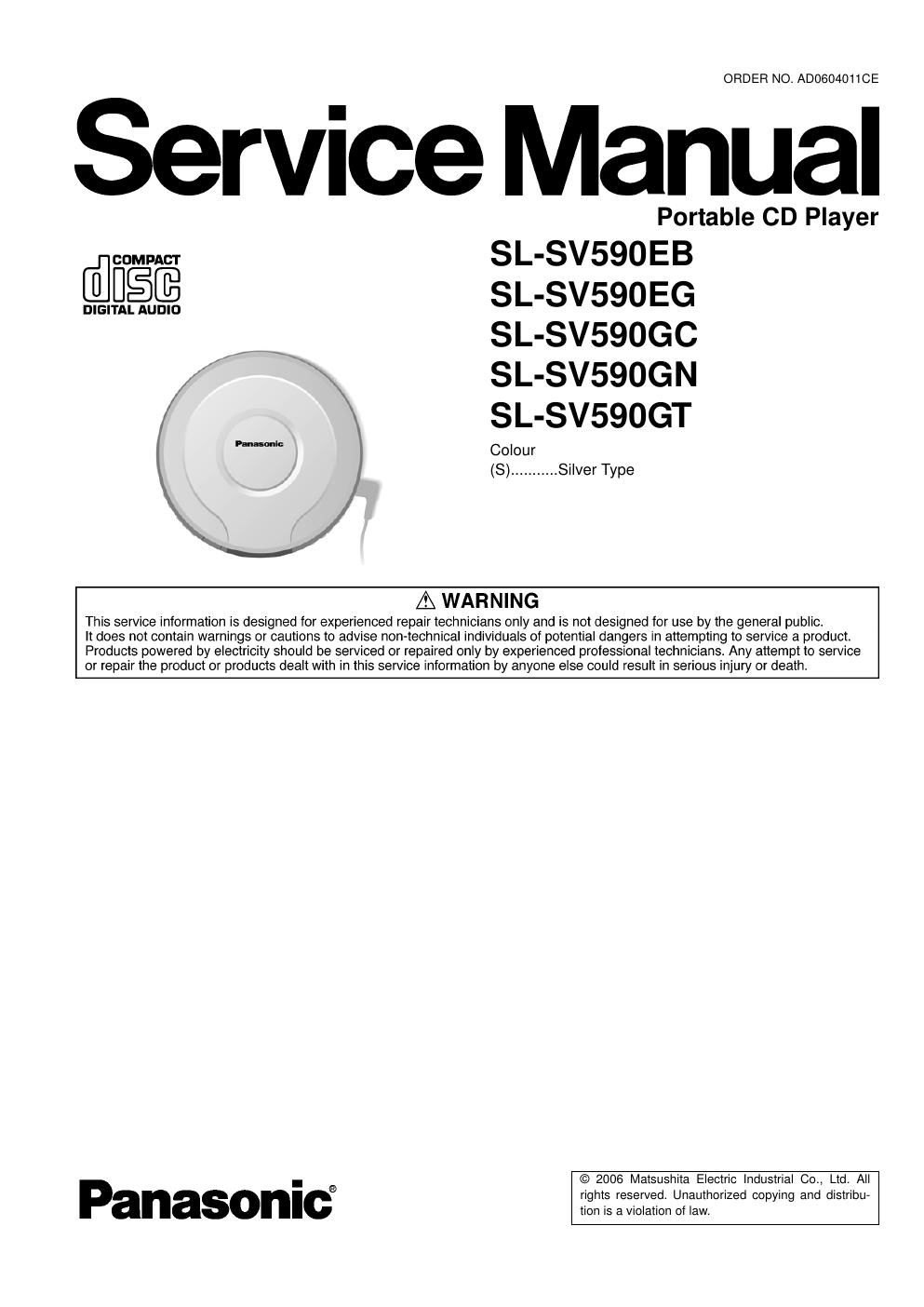

Page 1
ORDER NO. AD0604011CE
ce Manual
Portable CD Player
com SL-SV590EB
{QUEENS SL-SV590EG
SL-SV590GC
SL-SV590GN
SL-SV590GT
Colour
(8) ........... Silver Type
A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians, Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death
© 2006 Matsushita Electric Industrial Co., Ltd. All
I
® rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
Page 2
TABLE OF CONTENTS
PAGE
1 Safety Precaution ------------------------------------------------- 3
1.1. Precaution of Laser Diode ------------------
1.2. Handling Precautions for Traverse Deck
2 Service Navigation ------------------------------------------------ 5
2.1. General Description About Lead Free Solder
(PbF)
3 Specifications--
4 Location of Controls and Components-
4.1. Accessories ------------
4.2. Location of Controls -
5 Service Mode ------------------------------------
5.1. Display of Self-Diagnostic Function
6 Troubleshooting Guide ------------------------------------------ 8
6.1. Checking the Operation Problems on the
Traverse Deck (Optical Pick-up) -
7 Disassembly and Assembly Instructions-
7.1. Checking forthe PCB ---------------------
7.2. Replacement for the traverse motor---
7.3. Replacement for the optical pick-up---
7.4. Replacement for the rest switch --
8 Measurements and Adjustments ------
8.1. Automatic Adjustment Results Display
Function (Self-Check Function) ---------------------- 14
PAGE
