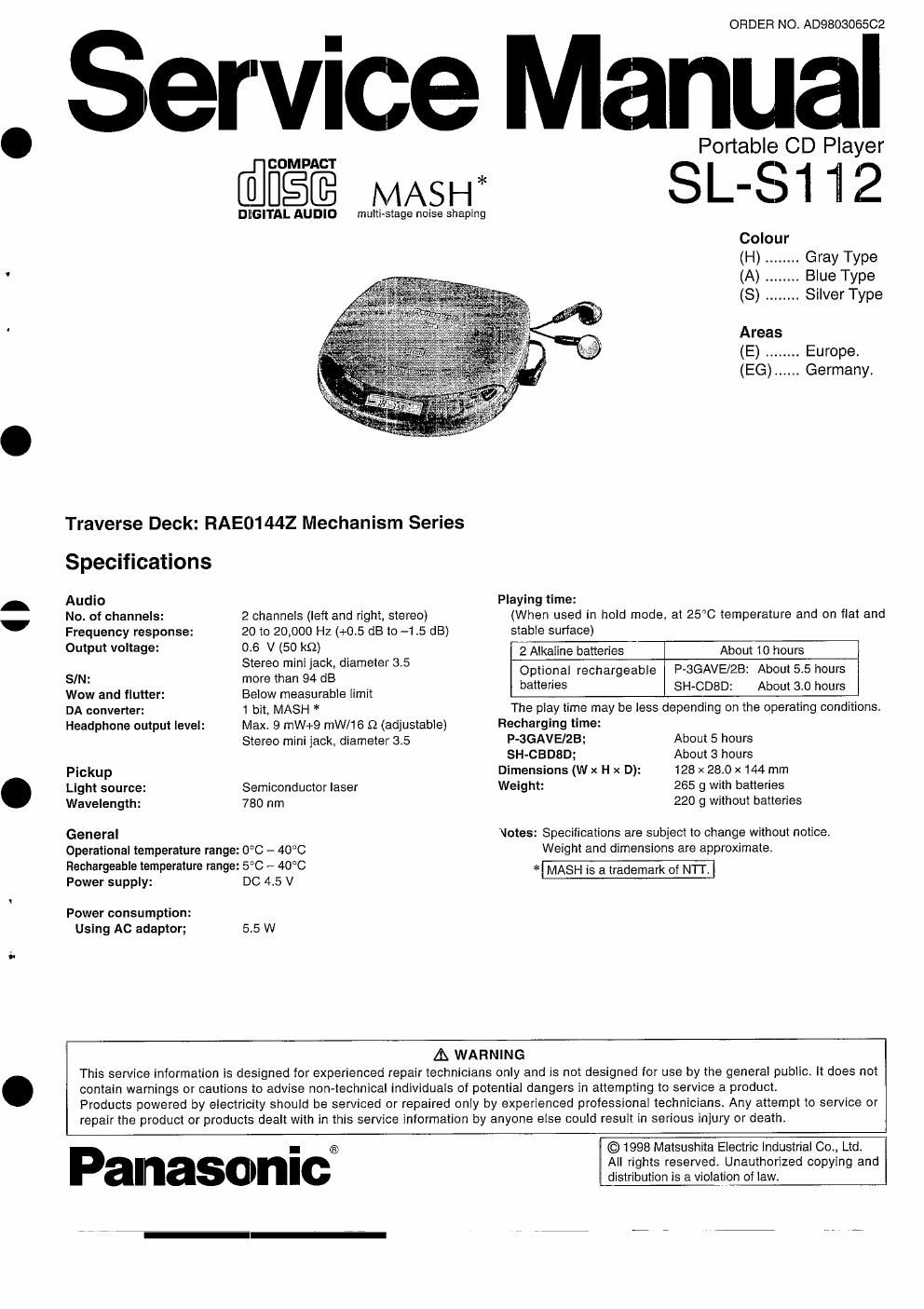

Page 1

ORDER NO. ADQBOSOBSCZ

Service Manual

[flfigfi MA5H*

multistage noise shaping

DllGITAL AUDIO

Traverse Deck: RAEO144Z Mechanism Series

Specifications

Audio
No. of channels:
Frequency response:

2 channels (left and right, stereo)
20 to 20,000 Hz (+0.5 dB to -1.5 dB)

Output voltage: 0.6 V (50 k9)
Stereo mini jack, diameter 3.5
SIN: more than 94 dB

Below measurable limit

1 bit, MASH *

Max. 9 mW+9 mW/ie 9 (adjustable)
Stereo mini jack, diameter 3.5

Wow and flutter:
DA converter:
Headphone output level:

Pickup

Light source: Semiconductor laser
Wavelength: 780 nm

General

Operational temperature range: 0°C - 40°C
Rechargeable temperature range: 5°C - 40°C

Power supply: DC 4.5 V
Power consumption:
Using AC adaptor; 5.5 W

Portable CD Player

SL-SI 12

Colour

(H) ........ Gray Type
(A) .. Blue Type
(3) Silver Type
Areas

(E) ........ Europe.

(EG) ...... Germany,

Playing time:
(When used in hold mode, at 25C temperature and on flat and
stable surface)

About 10 hours
P-aGAVE/ZB: About 5.5 hours
SH~CD8D: About 3.0 hours

The play time may be less depending on the operating conditions.
Recharging time:

2 Alkaline batteries

Optional rechargeable
batteries

P-3GAVE/ZB; About 5 hours

SH-CBDBD; About 3 hours
Dimensions (W x H x D): 128 x 28.0 x 144 mm
Weight: 265 g with batteries

220 9 without batteries

Votes: Specifications are subject to change without notice.
Weight and dimensions are approximate.

* MASH is a trademark of MT

A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonici

© 1998 Matsushita Electric Industrial 00., Ltd.
All rights resen/edt Unauthorized copying and
distribution is a violation of law.
