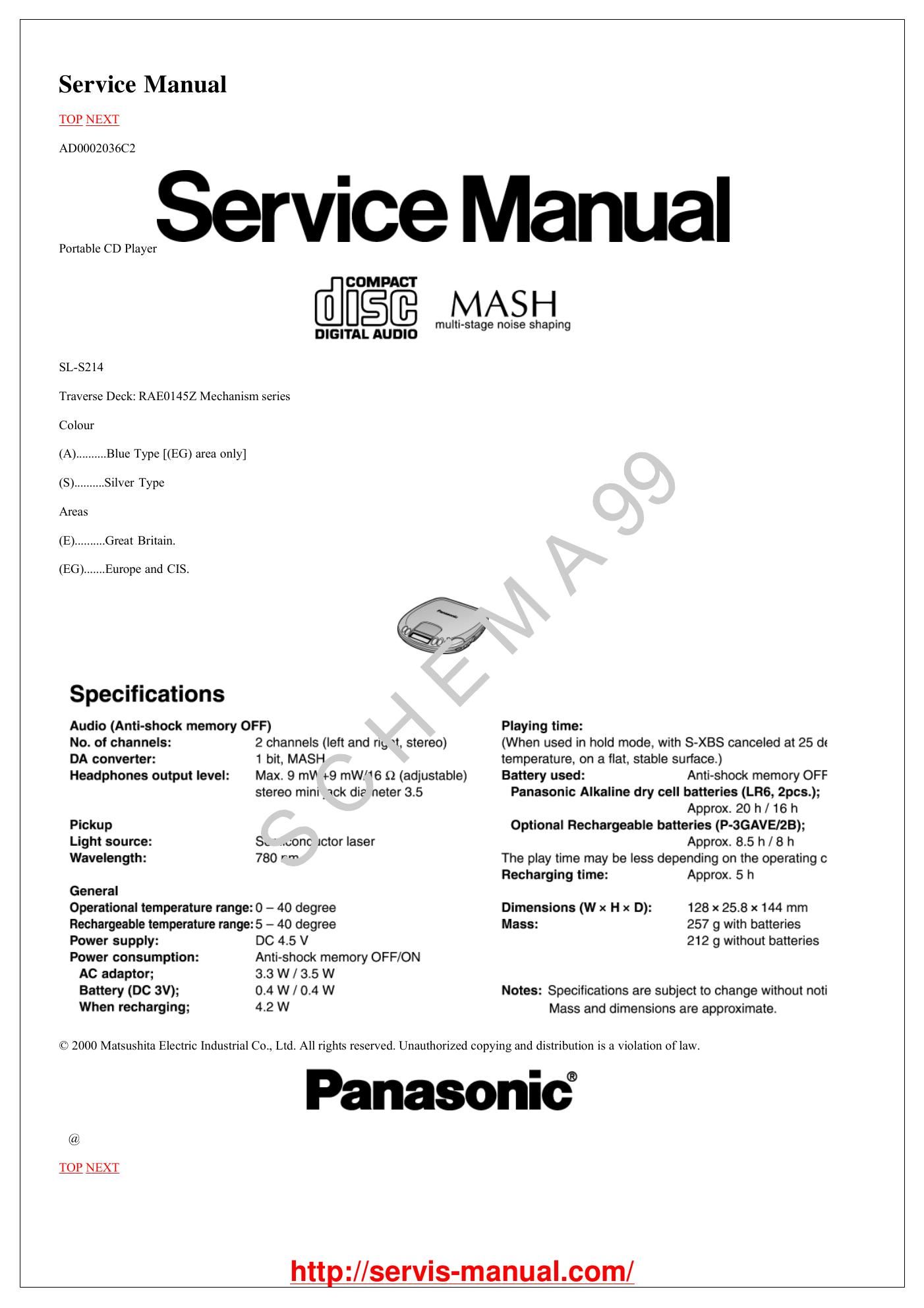

Page 1

Service Manual

m NEXT
AD0002036C2
Se I e M I
Portable CD Player
i lCOMPACT AS
n§@ multi-stage noise shaping
DIGITAL AUDIO
SL-SZI4

Traverse Deck: RAE014SZ Mechanism series
Colour

(A) .......... Blue Type [(EG) area only]

(S) .......... Silver Type

Areas

(E) .......... Great Britain.

(EG) ....... Europe and CIS.

Specrfrcatrons
Audio (Anti-shock memory OFF) Playing time:
No. of channels: 2 channels (left and rig t. stereo) (When used in hold mode, with S-XBS canceled at 25 de
DA converter: 1 bit, MASH temperature. on a flat. stable surface.)
Headphones output level: Max. 9 mV +9 mW.16Q (adjustable) Battery used: Anti-shock memory OFF
stereo mini ack die neter 3.5 Panasonic Alkaline dry cell batteries (LRG, 2pcs.);
Approx. 20 h / 16 h
Pickup Optional Rechargeable batteries (P-3GAVE/ZB);
Light source: St .conc ictor laser Approx. 8.5 h /8 h
Wavelength: 780 Pm The play time may be less depending on the operating c
Recharging time: Approx. 5 h
General
Operational temperature range: 0 - 40 degree Dimensions (W x H x D): 128 x 25.8 x 144 mm
Rechargeable temperature rangez5 - 40 degree Mass: 257 g with batteries
Power supply: DC 4.5 V 212 9 without batteries
Power consumption: Anti-shock memory OFF/ON
AC adaptor; 3.3 W / 3.5 W
Battery (DC 3V); 0.4 W / 0.4 W Notes: Specifications are subject to change without noti
When recharging; 4.2 W Mass and dimensions are approximate.

© 2000 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

Panasonic

@

TOP NEXT

http://servis-manual.com/

Page 2

7 Automatic Adjustment Results Display
Functiom (Self-Check Function)
LOPPREVIOUSM

On the unit (SL-SZl4), each automatic adjustment result are displayed on the LCD. This function is
convenient to check or identify which automatic adjustment circuit is incorrect.

The followings are the contents of the automatic adjustment result displays (Self-Check Function).

7.1 How to display automatic adjustment results

7.2 Display of automatic adjustment results (Self-Check Function)

@
