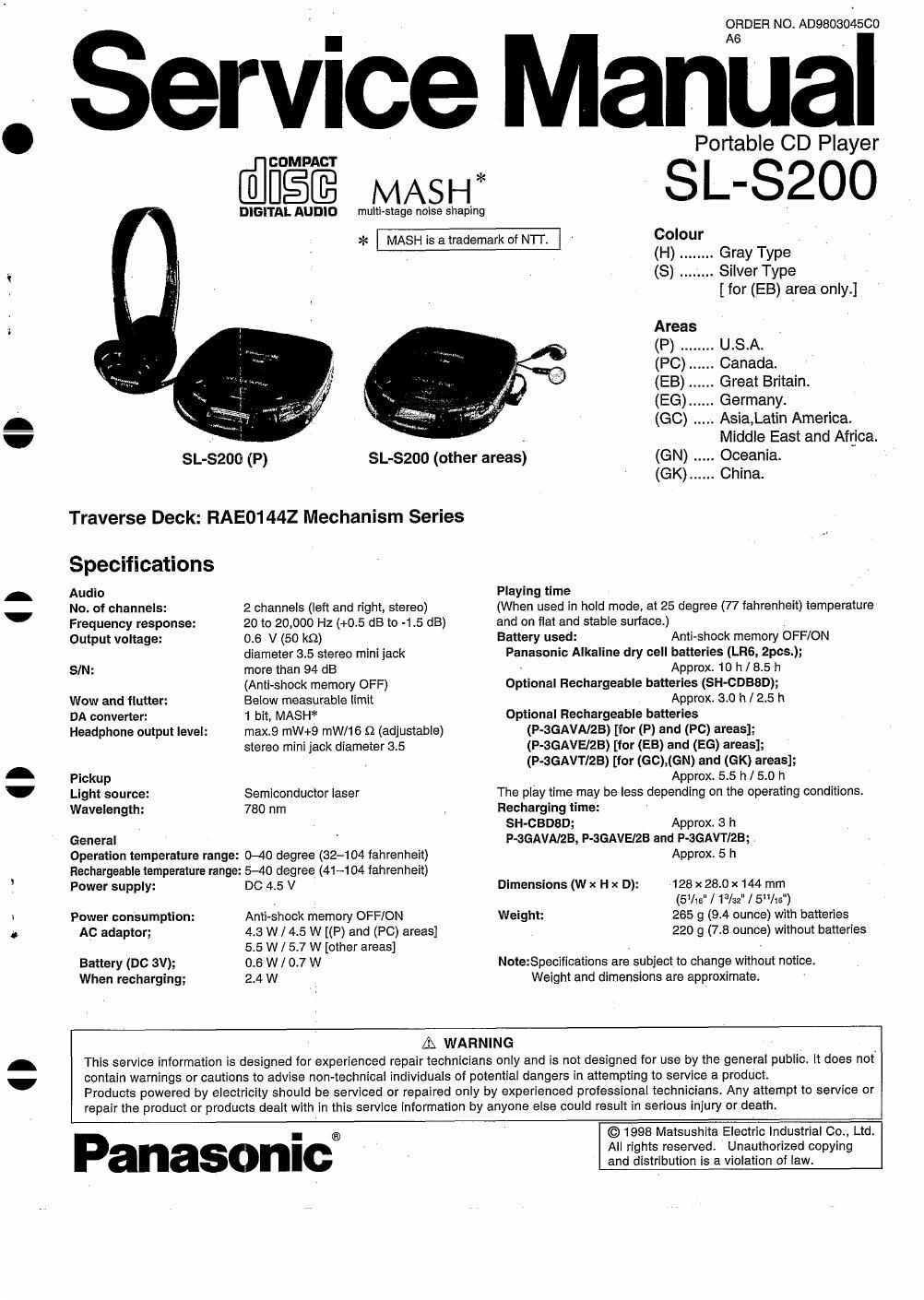

Page 1

ORDER NO. AD9803045C0

Service Manual

dl COMPACT

*
USE M A s H.
multI-stage noise shaping

* MASH is a trademark of MT.

DIGITAL AUDIO

SL-szoo (P)

Traverse Deck: RAE0144Z Mechanism Series

Speciﬁcations

Audio
No. of channels:
Frequency response:

2 channels (left and right, stereo)
20 to 20.000 H2 (+05 dB to -1.5 dB)

Output voltage: 0.6 V (50 k0)

diameter 3.5 stereo mini jack
SIN: more than 94 dB

(Anti-shock memory OFF)
Wow and flutter: Below measurable limit

1 bit, MASH?
max.9 mW+9 mW/16 9 (adjustable)
stereo mini iack diameter 3.5

DA converter:
Headphone output level:

Pickup

Light source: Semiconductor laser
Wavelength: 780 nm

General

Operation temperature range: 0-40 degree (32-104fahrenheit)
Rechargeable temperature range: 5-40 degree (41-104 fahrenheit)
Power supply: DC 4.5 V

Power consumption: Anti-shock memory OFF/ON

AC adaptor; 4.3 W / 4.5 W [(P) and (PC) areas]
5.5 W / 5.7 W [other areas]

Battery (DC 3V); 0.6 W / 0.7 W

When recharging; 2.4 W

SL-szoo (other areas)

Portable CD Player

SL-SZOO

Colour .
(H) . .. Gray Type
(S) . .. Silver Type
[for (EB) area only]
Areas
(P) ........ U.S.A.

(PC) ...... Canada.

(EB) ...... Great Britain.

(EG) ...... Germany.

(GO) ..... Asia,Latin America.
Middle East and Africa.

(GN) ..... Oceania.

(GK) ...... China.

Playing time
(When used in hold mode, at 25 degree (77 iahrenheit) temperature
and on flat and stable surface.)
Battery used: Anti Panasonic Alkaline dry cell batteries (LFl6, 2pcs.);
- Approx. 10 h / 8.5 h
Optional Rechargeable batteries (SH-CDBED);
Approx. 3.0 h I 2.5 h
Optional Rechargeable batteries
(P-SGAVAIZB) [for (P) and (PC) areas];
(P-3GAVEIZB) [for (EB) and (EG) areas];
(P-aGAVTIZB) [for (GC),(GN) and (GK) areas];
Approx. 5.5 h / 5.0 h
The playtime may be less depending on the operating conditions.
Recharging time: *

SH-CBDSD; Approx. 3 h
P-36AVAIZB, P-SGAVEIZB and P-3GAVTI2B;
Approx. 5 h

128 x 28.0 x144 mm

(5/1s"/ 13/32" / 5"]:6")

265 9 (94 ounce) with batteries
220 g (7.8 ounce) without batteries

Dimensions (Wx H x D):

Weight:

Note:Specifications are subject to change without notice.
Weight and dimensions are approximate.

A: WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic?
