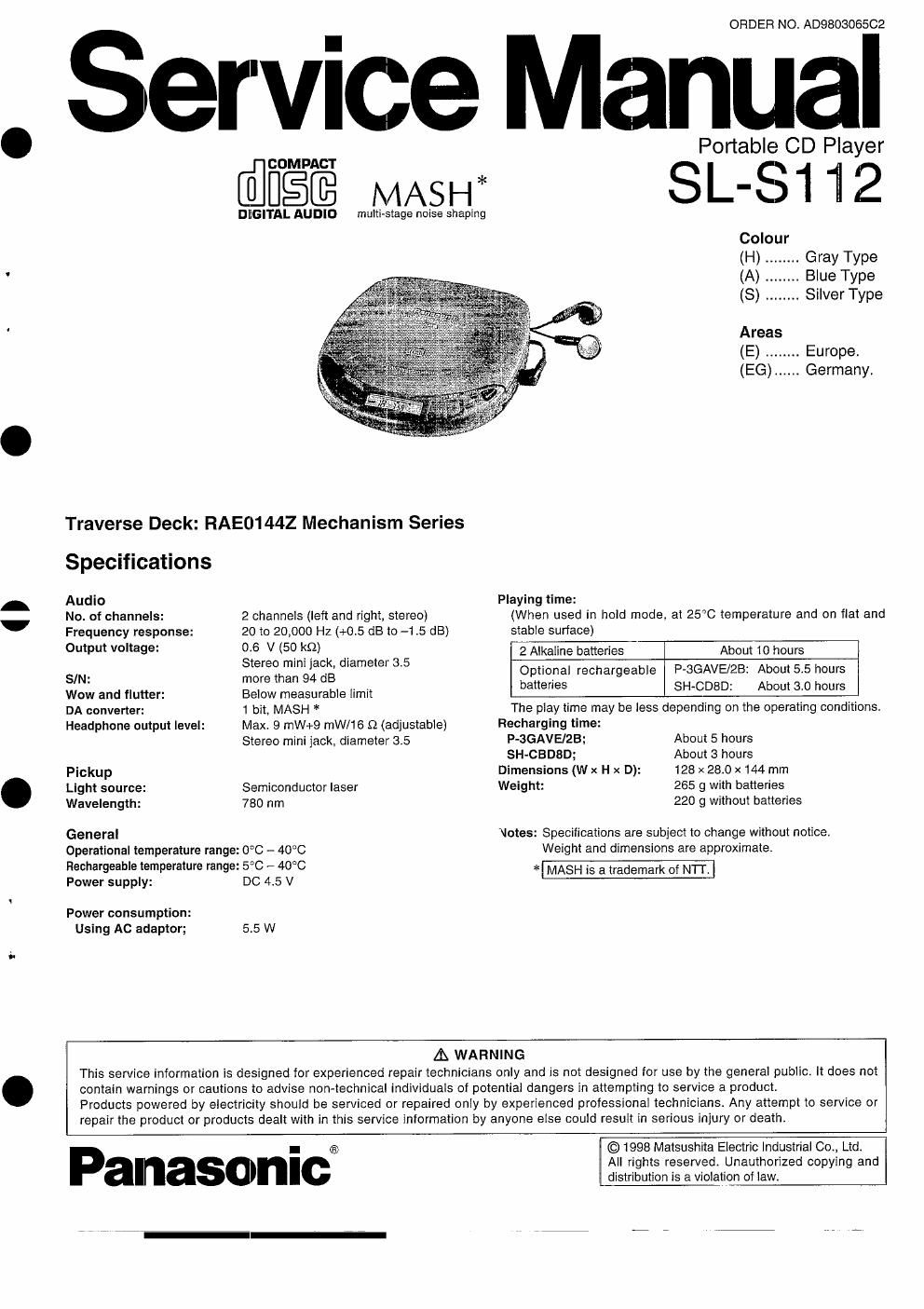

Page 1

ORDER NO. ADQBOSOBSCZ

Service Manual

[flfigfi MA5H*

multistage noise shaping

DllGITAL AUDIO

Traverse Deck: RAEO144Z Mechanism Series

Specifications

Audio
No. of channels:
Frequency response:

2 channels (left and right, stereo)
20 to 20,000 Hz (+0.5 dB to -1.5 dB)

Output voltage: 0.6 V (50 k9)
Stereo mini jack, diameter 3.5
SIN: more than 94 dB

Below measurable limit

1 bit, MASH *

Max. 9 mW+9 mW/ie 9 (adjustable)
Stereo mini jack, diameter 3.5

Wow and flutter:
DA converter:
Headphone output level:

Pickup

Light source: Semiconductor laser
Wavelength: 780 nm

General

Operational temperature range: 0°C - 40°C
Rechargeable temperature range: 5°C - 40°C

Power supply: DC 4.5 V
Power consumption:
Using AC adaptor; 5.5 W

Portable CD Player

SL-SI 12

Colour

(H) ........ Gray Type
(A) .. Blue Type
(3) Silver Type
Areas

(E) ........ Europe.

(EG) ...... Germany,

Playing time:
(When used in hold mode, at 25C temperature and on flat and
stable surface)

About 10 hours
P-aGAVE/ZB: About 5.5 hours
SH~CD8D: About 3.0 hours

The play time may be less depending on the operating conditions.
Recharging time:

2 Alkaline batteries

Optional rechargeable
batteries

P-3GAVE/ZB; About 5 hours

SH-CBDBD; About 3 hours
Dimensions (W x H x D): 128 x 28.0 x 144 mm
Weight: 265 g with batteries

220 9 without batteries

Votes: Specifications are subject to change without notice.
Weight and dimensions are approximate.

* MASH is a trademark of MT

A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonici

© 1998 Matsushita Electric Industrial 00., Ltd.
All rights resen/edt Unauthorized copying and
distribution is a violation of law.

Page 2

SL-S112W I

I Contents

Accessories ....................
Precaution of Laser Diod
Location of Controls .......
Power Supply Preparations
HOLD Function .
Sequential Play.
Other Play Metho 5.
Using the Unit with Optional Accessories
Cautions ...................
Troubleshooting Guide ..
Handling Precaution for Traverse ec
Operation Checks

and Component Replacement Procedures ............................... 8 - 10

'0

SD .
a: ,
m

\Iflmmmb-hWQNN

l Accessories '

oStereo earphones

(RFEV317P-KS) . 1pc.

Checking the Operation Problems

on the Traverse Deck (Optical Pickup).
Automatic Adjustment Results Display Func Ion

(Self-check Function) ......................................
Type Illustration of 16's, Transistors and Diode
Schematic Diagram
Printed Circuit Board an inng
Measurement and Adjustments
Black Diagram ................
Terminal Function of IC'S
Replacement Parts List
Cabinet Parts Location
Packaging ...............

CAUTION:
THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

l Precaution of Laser Diode
CAUTION:
Wave length: 780 nm _
Maximum output radiation power from pick up: 100 pWNDE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

This product utilizes a laser diode with the unit turned "on, invisible laser radiation is emitted from the pick up lens.

Laser radiation from the pick up unit is safety level, but be sure the followings:

1. Do not disassemble the pick up unit, slnce radiation from exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pick up unit. It was already adjusted.

3. Do not lock at the focus lens using optical instruments.
4. Recommend not to lock at pick up lens for a long time.

ACHTUNG:
Wellenlange: 780 nm
Maximale strahlungsleistung der laserinhelt: 100 pWNDE

Dieses produkt enthalt eine laserdiode. Im eingeschalteten zustand wird unsicvhtbare laserstrahlung von der lasereinheit adgestrahit.

Die strahlung an der lasereinheit ist ungefahrllch, wenn tolgende punkte beachtet warden:

1. Die lasereinheit nicht zerlegen, da die strahlung an der freigelegten laserdiode geféhriich ist.
2. Den werksseitigjustierten einstellregler der lasereinreit nichtverstellen.
3. Nicht mit optischen instrumenten in die tokussierlinse blicken.

4. Nicht fiber langere zeit in die tokussierlinse blicken.

DANGER

INVISIBLE LASER RADIATION WHEN OPEN AND lNTERlOCK DEFEATED.

Avmuummmosuntmm (Ins'de f pmduc)

CLASS 1

ADVAFISEL

USVNLIGUSERSTRALIIIGVEDABNING,NMSIKKERIIEDSAFBRVDERE

ERNDEAFIUIIKTIIJN unmimwnssmsmltme (Inde'sdan at apparate)

LASER PRODUCT

VARO.

AVATTAESSAJA SUDJALIIKITUS ONITETIAESSA IIIH ALTIIINA

uttvvitfimiusmsitatvua itimsnsittEstEu. (ween 553%)

VARNING

OSVIILIG LASERSWUIIIIG llNi DEIIIIA DEL Ali DPPIIAD OCH

spinnruinunmprun. amniusmluu (Appa'aens '"s'da)

ADVARSEL

USVNLIG usmsmlum NNI DEIiSEL Irnts m strmmsdis

aunts urinal EKSPOIIERIIIG mustnlwi (PmdUkes innsm)

[Bottom side]

VORSICHT

UNSICHTBARE lASERSTRAl-ILUNG.1NENN A§DEBKLIIIG GEfiFfllEl
UllD SICHERHEITSVERFIIEGELUNG UBEREIIIJEKT.
NIGHT DEM STRAHL AUSSEIZEN.

(lm Inneren des Gerates)
