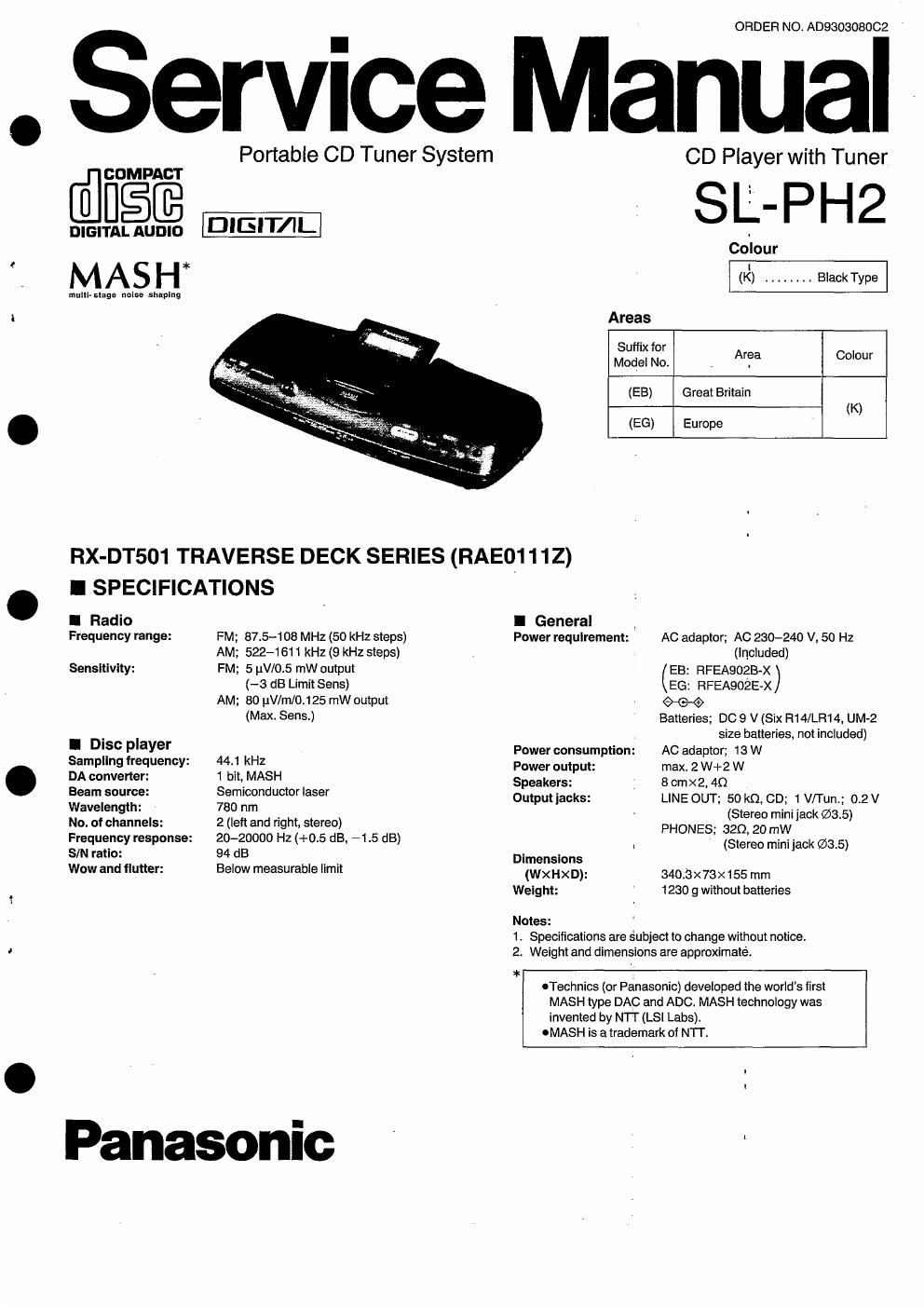

Page 1

ORDER NO AD9303OBOCZ

.Service Manual

@058

MAS H

mulll-Itnge noise shaping

Portable CD Tuner System

_IGlT/IL

RX-DT501 TRAVERSE DECK SERIES (RAEO_111Z)

I SPECIFICATIONS
I Radio
Frequency range: FM; 87.5-108 MHz (50 kHz steps)

Sensitivity:

I Disc player
Sampling frequency:
DA converter:

Beam source:
Wavelength:

No. of channels:

Frequency response:

SIN ratio:
Wow and flutter:

AM; 522-1 611 kHz (9 kHz steps)
FM; 5 [JV/0,5 mW output
(-3 dB Limit Sens)
AM; 80 uV/m/O,125 mW output
(Max. Sens.)

44.1 kHz

1 bit, MASH

Semiconductor laser

760 nm

2 (left and right, stereo)
20-20000 Hz (+05 dB, -1.5 dB)
94 dB

Below measurable limit

Panasonic

CD Player with Tuner
Colour
I
(K) ........ Black Type
Areas
Suffix for
Model No. Area Colour
(EB) Great Britain
(K)
(EG) Europe
I General V
Power requirement: AC adaptor; AC 230-240 V, 50 Hz
(Included)
EB: RFEAQOgB-X
EG: RFEASOZE-X
%-©
Batteries; DC 9 V (Six R14/LR14, UM-2
size batteries, not included)
Power consumption: AC adaptor; 13 W
Power output: max. 2 W+2 W
Speakers: 8 cm x 2, 40
Output jacks: LINE OUT; 50 k5), CD; 1 V/Tun.; 02V
(Stereo mini jack £2535)
PHONES; 320. 20 mW
(Stereo mini iack (335)
Dimensions
(waxD): 340.3x73x155 mm
Weight: 1230 9 without batteries
Notes:

1. Specifications are subject to change without notice.
2. Weight and dimensions are approximate.

*

OTechnics (or Panasonic) developed the worlds first
MASH type DAC and ADC: MASH technology was
invented by MT (LSI Labs).

OMASH is a trademark of NW.
