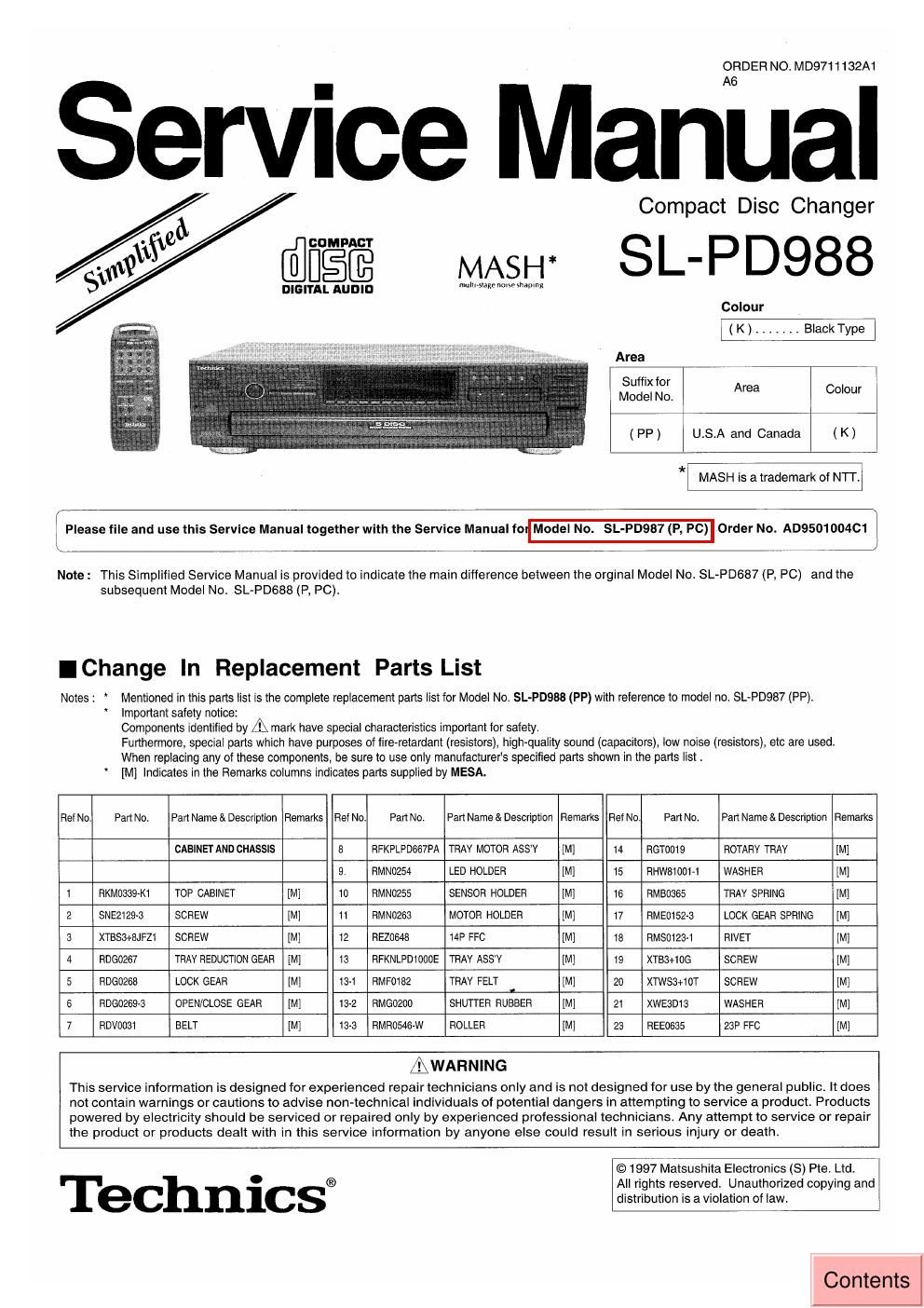

Page 1

ORDER NO. MD9711132A1
A6

ervice Manual

Compact Disc Changer

@cﬂgﬁ MASH* SL-PD988

DIGITAL AUDIO Mlti-Slagencneshnping

Colour
( K . Black Type
Area

Suffix for
Model No. Area Colour

(PP) USA and Canada (K)

MASH is a trademark of NI'I'.

Please file and use this Service Manual together with the Service Manual to Model No. SL-PD937 (P, PC) Order No. AD950100461
I

Note: This Simplified Service Manual is provided to indicate the main difference between the orginal Model No. SL-PDGS7 (P, PC) and the
subsequent Model No. SL-PDSSS (P, PC).

IChange ln Replacement Parts List

Notes 2 Mentioned in this parts list is the complete replacement parts list for Model No. SL-PD988 (PP) with reference to model no. SL-PDQ87 (PP).
Important safety notice:

Components identified by [K mark have special characteristics important for safety.

Furthermore, special parts which have purposes of lire-retardant (resistors), high-quality sound (capacitors), low noise (resistors), etc are used.
When replacing any ol these components, be sure to use only manufacturer's speciﬁed parts shown in the parts list .

[M] Indicates in the Remarks columns indicates parts supplied by MESA.

Rel No. Part No. Pan Name 5. Description Remarks Ref No. Part No, Part Name & Description Remarks Ref No. Part No. Part Name & Description Remarks

CABINET AND CHASSIS a RFKPLPD667PA TRAY MOTOR ASSY [M] 14 RGTOD19 ROTARY TRAY [M]

9 RMNOZSA LED HOLDER [M] 15 RHWBtOOt-t WASHER [M]

1 RKM0339-K1 TOP CABINET [M] 10 RMN0255 SENSOR HOLDER [M] 16 RM30365 TRAY SPRING [M]
2 SNE2129-3 SCREW [M] 11 RMN0263 MOTOR HOLDER [M] 17 RME0152-3 LOCK GEAR SPRING [M]
3 XTBSS+8JFZ1 SCREW [M] 12 REZOB48 14F FFC [M] 18 RM80123-1 RIVET [M]
4 RDGO267 TRAY REDUCTION GEAR [M] 13 RFKNLPDtOODE TRAY ASSY [M] 19 XTB3+1OG SCREW [M]
5 RDG0268 LOCK GEAR [M] 13-1 RMF0132 TRAY FELT [M] 20 XTW33+10T SCREW [M]
6 RDGOZGQ-s OPEN/CLOSE GEAR [M] 13-2 RMGOZOO SHUTTER RUBBER [M] 21 XWE3D13 WASHER [M]
7 RDV0031 BELT [M] 13-3 RMR0546-W ROLLER [M] 23 REE0635 23F FFC [M]

$WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.
