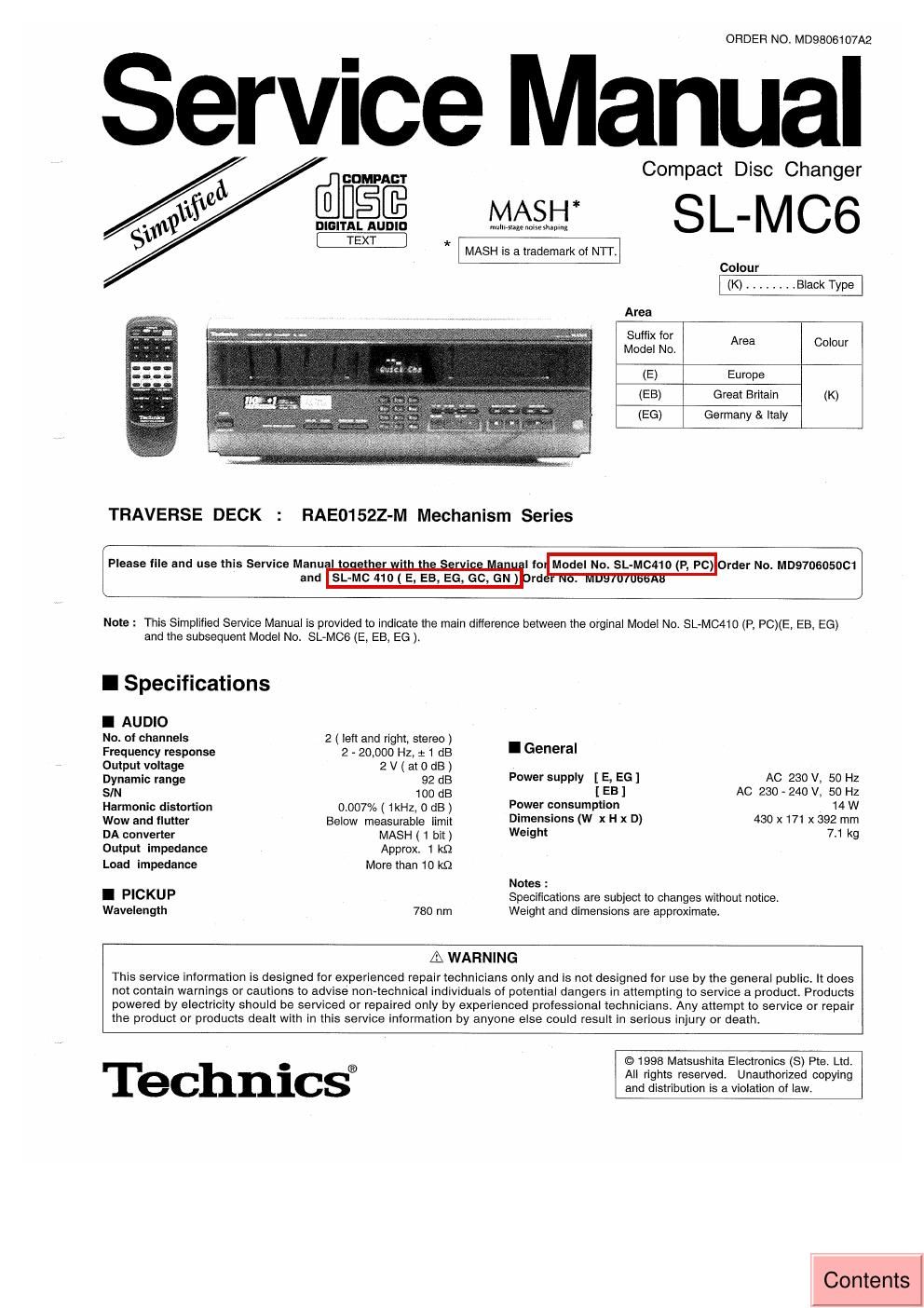

ORDER NO. MD9806107A2

ervice Manual

Compact Disc Changer

MASH * _
DIGIT?IIE.X¢UDID mqu-mremiseshanmx S L M C 6

* MASH is a trademark of N'l'l'.

TRAVERSE DECK :

Colour
(K) . .Black Type

Area
Suffix for
Model No. Area C°'°'

(E) Europe

(EB) Great Britain (K)

(EG) Germany & Italy

RAEO1522-M Mechanism Series

Order No. MD9706050C1

Please file and use this Service Manual to-ether with the Service Man al to Model No. SL-Mc410 (P PC)
and SL- -,MC410(E EB, EG, GC, GN) Crd- '.

Note : This Simplified Service Manual is provided to indicate the main difference between the orginal Model No. SL-MC41D (P, PC)(E, EB, EG)
and the subsequent Model No. SL-M06 (Et EB, EG ).

l Specifications

I AUDIO

No. of channels
Frequency response
Output voltage
Dynamic range

SIN

Harmonic distortion
Wow and flutter

2 ( lelt and right. stereo)
2 - 20,000 Hz, :1 dB

2 v ( at 0 dB )

92 dB

100 dB
0.007%(1kHz,O dB)
Below measurable limit

I General

Power supply [ E, E6] AC 230 V, 50 Hz
[ EB] AC 230 » 240 V, 50 Hz

Power consumption 14 W

Dimensions (W x H x D) 430 x 171 x 392 mm

DA converter MASH ( 1 bit) Weight 7.1 kg
Output impedance Approx. 1 k9
Load impedance More than 10 kt)
Notes :
I PICKUP Specifications are subject to changes without notice.
Wavelength 780 nm Weight and dimensions are approximate.
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1998 Matsushita Electronics (8) Pte. Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law

Technics®

Contents

Page 2

SL-MCS

I Accessories

AC power supply cord
(RJA0019-2K )
(RJA0053-1 K)

_ Stereo connection cable Numbered stickers (HQLA0326) ..... 1pc.
. or others (RJL2POO4BOS) ..... 1pc.
United Kingdom '

ff

Remote control transmitter Notebook-like binder (RFA0623-K1) ..... 1pc. Batteries 1pc.
(EUR645270) ..... 1pc.

OPRECAUTIONS for BLUE LED

Attention Service Centres : Below are some precautions that should be taken when
handling the BLUE LED.

1. Repair stations must not have any plastic materials or containers near the set under
repair/ service.

2. Earth Band must be worn at all times during repair/ service.

3. At all times , do not touch LED leads or conductive paths connected to the LED.

4. To maintain the brightness and colour evenness of the pair of LEDs of the M06,
replacing BLUE LEDs must be done in pairs, is. 0620 & D621, repair kits should

be ordered instead of single parts.

5. When possible service / repair station should have lon blow installed and directed
at the PCB with the LED.

6. All other standard anti static precautions must be taken.
