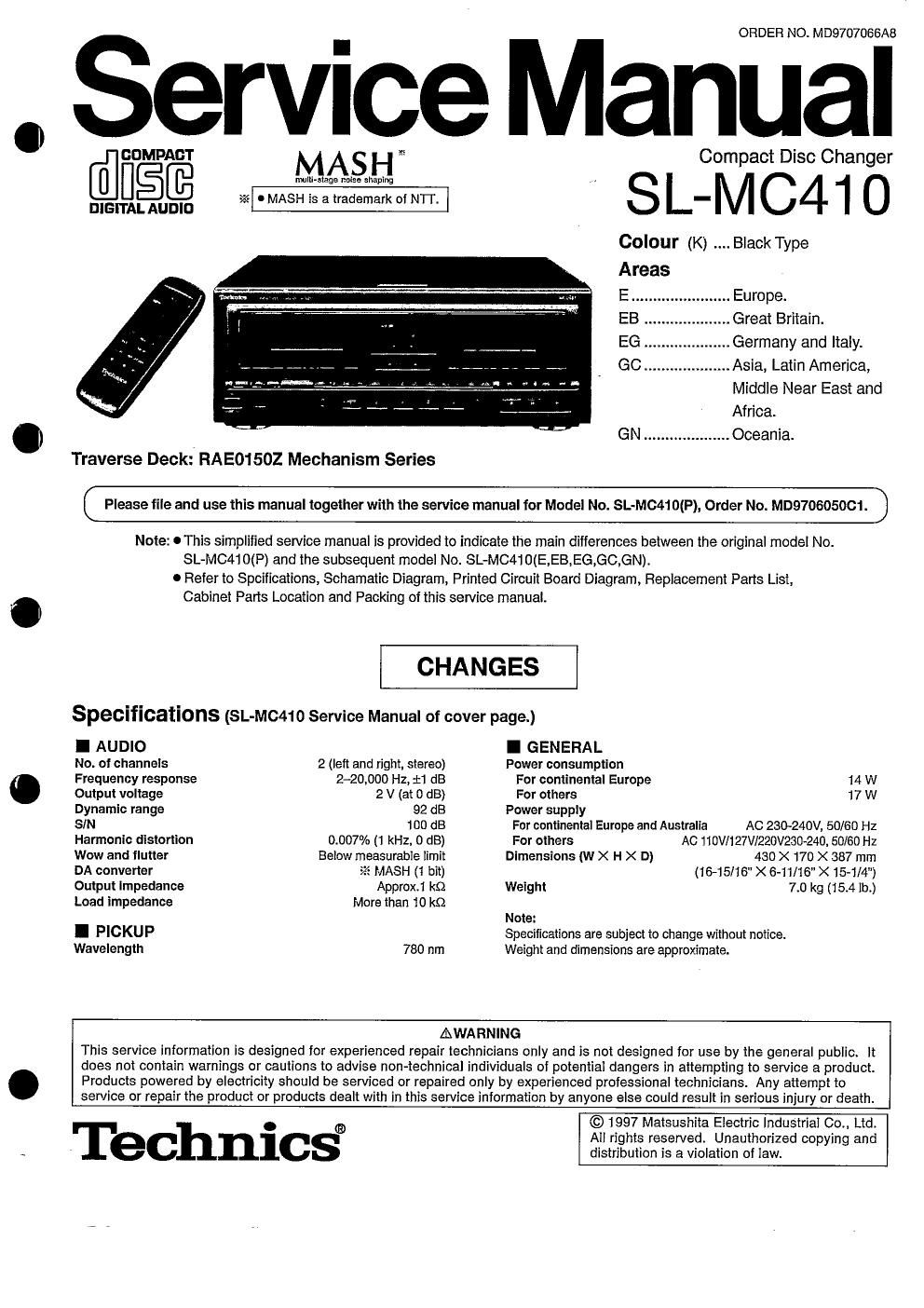

Page 1

Traverse Deck: RAE015OZ Mechanism Series

ORDER NO MD9707066A8

Service Manual

[flGDMPAGT

[mg mM-Ilti siegAn noise Ssthing
0 MASH is a tradema k oi NI'l'.
Minimum

Compact Disc Changer

SL- M0410

Colour (K) Black Type

Areas

E ....................... Europe.

EB .................... Great Britain.

EG .. Germany and Italy.

GC ..Asia, Latin America,
Middle Near East and
Africa.

GN .................... Oceania.

[ Please file and use this manual together with the service manual for Model No. SL-MC410(P), Order No. MDB70605001. )

Note: 0 This simplified service manual is provided to indicate the main differences between the original model No.
SL-MC410(P) and the subsequent model No. SL-MC410(E,EB.EG,GC,GN).
0 Refer to Spcifications, Schematic Diagram, Printed Circuit Board Diagram, Replacement Parts List,
Cabinet Parts Location and Packing of this service manual.

CHANGES

Specifications (SL-MC410 Service Manual of cover page.)

I AUDIO
No. of channels
Frequency response

2 (left and right, stereo)
2-20,000 Hz, i1 dB

Output voltage 2 V (at 0 dB)
Dynamic range 92 dB
SIN 100 dB

0.007% (1 kHz, 0 dB)
Below measurable limit
£4 MASH (1 bit)
Approx.1 k0

More than 10 k5)

Harmonic distortion
Wow and flutter

DA converter
Output Impedance
Load impedance

I PICKUP
Wavelength 780 nm

I GENERAL

Power consumption
For continental Europe 14 W
For others 17 W

Power supply
For continental Europe and Australia AC 230-240V, 50/60 Hz
For others AC tiflV/127V/220V2-30-240, 50/60 Hz
Dimensions (W X H X D) 430 X 170 X 337 mm
(1&15/16" X 6-11116"X15-i/ ")
Weight 7.0 kg (1 5.4 lb.)

Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.

AWARNING.
This service information is designed for experienced repair technicians only and is not designed for use by the general public. it
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt within this service information by anyone else could result In serious injury or death.

Technics

© 1997 Matsushita Electric Industrial 00., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SL-illlc410

I Precaution of Laser Diode

CAUTION:

This product utilizes a laser diode with the unit turned "on, invisible laser radiation is emitted from the pickup lens.
Wave length: 780 nm
Maximum output radiation power from pickup: 100 uWNDE

Laser radiation from the pickup lens is safety level, but be sure the followings:

1. Do not disassemble the optical pickup unit, since radiation from exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pickup unit. it was already adjusted.

3. Do not look at the focus lens using optical instruments.

4. Recommend not to look at pickup lens for a long time.

AGHTUNG: Dieses Produkt enthalt eine Laserdiode. lm elngeschalteten Zustand wird unsichtbare Leserstrahlung von der

Lasereinheit abgestrahlt.

Wellenlange: 780 nm
Maximale Slrahlungsleistung der Lasereinheit: 100 uWNDE

Die Sirahlung an der Lasereinhelt ist ungetahrlich, wenn lolgende Punkte beachtet werden:

1. Die Lasereinheit nicht zerlegen, da die Strahlung an der freigelegten Laserdiode geféihrlich ist.
2. Den werkseitig justierten Einslellregler cler Lasereinhit nicht verstellen.

3. Nicht mit optischen lnstrumenten in die Fokussierlines blicken.

4. Nicht fiber langere Zeit in die Fokussierlines blicken.

ADVARSEL: l dette a apparel anvendes laser.

I % LINED ACIN
lg $8 9

CLASS 1
LASER PRODUCT

BANGEH ltNlSlBLE USER anlm WHEN OPEN

mmr 5
cm Anna

VARD!

VARHlNG IF WE I1! IBM In awn wt

tor/2m. 5'
VIJRSle' whiz?! MEWL'GJIIW HERVE: EEUHJ.
K.

Km 5:
