Panasonic sl j 900 owners manual
This is the 6 pages manual for panasonic sl j 900 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sl j 900 owners manual (Ocr-read)

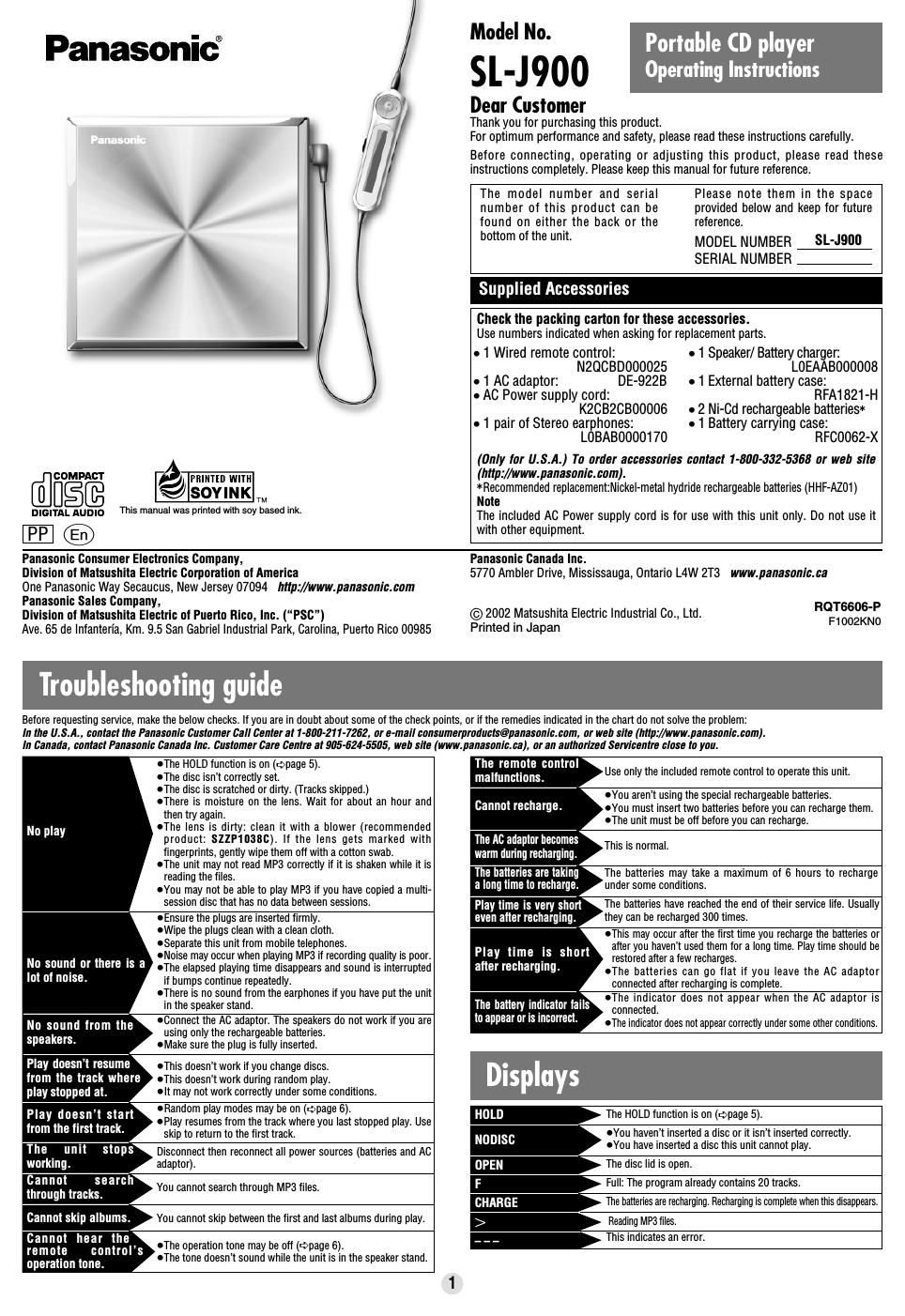

Page 1
Batteries used 2 optional alkaline batteries 2 supplied rechargeable batteries 2 supplied rechargeable and 2 alkaline batteries Audio (CD-DA)No. of channels: 2 (left and right, stereo)Frequency response: 20 to 20,000 Hz ( i0.5 dB to j10 dB) DA converter: 1 bit, MASH Headphone output level: RMS max. 6 mW i6 mW/ 16 ≠(adjustable) Speaker output level: RMS max. 1.2 W i1.2 W PickupLight source: Semiconductor laser Wavelength: 780 nm MP3Supported bit-rates: 32 kbps to 320 kbps (128 kbps is recommended) Supported sampling frequency: 48 kHz/44.1 kHz/32 kHz Maximum number of items (sum of albums and tracks): 999 Maximum album levels: 100 GeneralPower supply:DC input (via included AC adaptor): DC 4.5 V AC adaptor input: AC 100 V– 240 V,50/60 Hz Power consumption: Using AC adaptor: Using earphones (MP3/CD-DA): 1.1 W/1.0 W Using speakers (MP3/CD-DA): 4.7 W/4.6 W Recharging Without speakers : 3.2 W With speakers : 3.6 WPlay time: [Approximate operating time in hours (playing MP3 at the recommended bitrate of 128 kbps, with EQ canceled, at 25 eC (77 eF) on a flat, stable surface)] Recharging time: 2 to 3 hours ≥The play time may be less depending on the operating conditions. ≥Play time will be considerably reduced when playing CD-RW. Operational temperature range: 0 eC–40 eC (32 eF–104 eF) Rechargeable temperature range: 5 eC–40 eC (41 eF–104 eF) Dimensions (W aHaD): CD player: 126 a14.4 a126 mm (4 31⁄32za9⁄16za431⁄32z) Speaker/ Battery charger:280 a149.7 a66 mm (11z a57⁄8za219⁄32z) Mass: CD player: 224 g(7.9 oz.) (with batteries) 178 g(6.3 oz.) (without batteries) Speaker/ Battery charger: 443 g(15.6 oz.) Note: Specifications are subject to change without notice. Mass and dimensions are approximate. Specifications MP3 disc 40 12 52CD-DA disc 26 8 34 ∫Batteries≥Do not peel off the covering on batteries and do not use if the covering has been peeled off. ≥Align the poles + and - correctly when inserting the batteries. ≥Do not mix different types of batteries or old and new batteries. ≥Remove the batteries if you do not intend to use the unit for a long time. ≥Do not throw into fire, short-circuit, disassemble, or subject to excessive heat. ≥Do not attempt to recharge dry cell batteries. ≥When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed together with them. Contact with metal may cause short-circuiting which can cause a fire. For safety, carry the rechargeable batteries in the battery carrying case. Caution A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery. RBRC Ni-Cd TM ∫Listening Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play. If you experience a ringing in your ears, reduce volume or discontinue use. Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas. You should use extreme caution or temporarily discontinue use in potentially hazardous situations. Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, dont turn up the volume so high that you cant hear whats around you. Sound can be deceiving. Over time your hearing comfort level adapts to higher volumes of sound. So what sounds normal can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level: ≥Start your volume control at a low setting. ≥Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. Once you have established a comfortable sound level: ≥Leave it there. EST. 1924 ∫CDs≥Do not use irregularly shaped CDs. ≥Do not use non-specification discs. ≥Do not use CDs printed with label printers available on the market. ≥Do not use CDs with labels and stickers that are coming off or with adhesive exuding from under labels and stickers. Power consumption in standby mode:Without speakers : 0.5W With speakers : 0.7W 2 ∫AllergiesDiscontinue use if you experience discomfort with the earphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions. IMPORTANT SAFETY INSTRUCTIONS 1. Power source-Connect the unit to a power source of the type described in these instructions or as marked on the unit. 2. Polarization-The unit is equipped with a polarized power plug where one blade is wider than the other. This safety feature ensures that the plug fits into your household AC outlet only one way. If the plug doesnt fit one way, try reversing it. If the plug still doesnt fit, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the plug. 3. Power cord protection-Route the AC power supply cord so that it will not be walked on or pinched by items placed on or against it. Never take hold of the plug or cord with wet hands. Always grasp the plug body firmly when connecting and disconnecting it. 4. Overloading-When connecting the AC power supply cord, be careful not to overload the household AC outlet, extension cord, or outlet from any other device as this can result in fire or electric shock. 5. Nonuse periods-Turn the unit off when it is not in use. Unplug the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms. Leaving the unit connected to a household AC outlet for extended periods can cause battery fluid leakage. 6. Attachments and accessories-Use only the attachments and accessories recommended in these operating instructions. ∫Placement1. Foreign material-Ensure objects and liquids do not get into the unit. Avoid exposing the unit to excessive smoke, dust, mechanical vibration, and shock. 2. Magnetism-Situate the unit away from equipment and devices that generate strong magnetic fields. 3. Stacking-Do not place anything on top of this unit. 4. Wall and ceiling mounting-Do not mount the unit on walls or ceilings unless specified in the instructions. ∫Environment1. Water and moisture-Do not use the unit near water, such as near a bathtub or swimming pool. Avoid damp basements. 2. Heat-Situate the unit away from heat sources, such as radiators. Do not leave it in an automobile exposed to direct sunlight with the doors and windows closed as this may deform the cabinet. 2.Do not situate where temperatures fall below 5 eC (41 eF) or rise above 35 eC (95 eF). Safety Unplug the unit from the household AC outlet before cleaning. Clean with a damp cloth. Do not use abrasive pads, scouring powders, or solvents. 1. Damage requiring service-The unit should be serviced by qualified service personnel if: 1.(a) The AC power supply cord or AC adaptor has been damaged; or 1.(b) Objects or liquids have gotten into the unit; or 1.(c) The unit has been exposed to rain; or 1.(d) The unit does not operate normally or exhibits a marked change in performance; or 1.(e) The unit has been dropped or the cabinet damaged. 2. Servicing-Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel. 3. Replacement parts-When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards. 4. Safety check-After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition. Installation Maintenance Service AC adaptor This AC adaptor operates on AC between 100 V and 240 V. But ≥In the U.S.A. and Canada, the AC power supply cord must be connected to a 120 V AC power supply only. ≥When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit the AC outlet configuration. ≥When connecting to a supply of greater than AC 125 V, ensure the cord you use is suited to the voltage of the AC supply and the rated current of the AC adaptor. ≥Contact an electrical parts distributor for assistance in selecting a suitable AC plug adaptor or AC cord set. Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference.
Page 2
ONLY FOR U.S.A. 3 Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Panasonic Portable Audio Products Limited Warranty Limited Warranty CoverageIf your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as the warrantor) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (warranty period), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor. Product or Part Name All Portable Audio Products except item listed below Rechargeable batteries (in exchange for defective item) Parts One (1) Year Ten (10) Days Labor One (1) Year Not applicable During the Labor warranty period there will be no charge for labor. During the Parts warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold as is. Mail-In ServiceFor assistance in the continental U.S.A. in obtaining repairs please ship the product to: Panasonic Services Company Customer Servicenter Suite B 4900 George McVay Drive McAllen, TX 78503 For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910. When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached. Customer Services Directory For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact: 1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST. or send e-mail: consumerproducts@panasonic.com For hearing or speech impaired TTY users, TTY: 1-877-833-8855 Web Site: http://www.panasonic.com You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site. IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISHA SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OFPURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCHPROOF OF PURCHASE.Limited Warranty Limits And ExclusionsThis warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER LIMITED WARRANTY COVERAGE. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantors Consumer Affairs Department at the addresses listed for the warrantor. PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Service in Puerto Rico Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter: Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Phone (787) 750-4300 Fax (787) 768-2910 Accessory Purchases: 1-800-332-5368 (Customer Orders Only) For hearing or speech impaired TTY users, TTY: 1-866-605-1277 Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST) (Visa, MasterCard, Discover Card, American Express, Check) CAUTION!THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. CAUTION:Use only car adaptor, Model: SH-CDC9 manufactured by Matsushita Electric Industrial Co., Ltd. THE FOLLOWING APPLIES ONLY IN THE U.S.A. CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ≥Consult the dealer or an experienced radio/TV technician for help. Any unauthorized changes or modifications to this equipment would void the users authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product service 1. Damage requiring service-The unit should be serviced by qualified service personnel if: 1.(a) The AC power supply cord or AC adaptor has been damaged; or 1.(b) Objects or liquids have gotten into the unit; or 1.(c) The unit has been exposed to rain; or 1.(d) The unit does not operate normally or exhibits a marked change in performance; or 1.(e) The unit has been dropped or the cabinet damaged. 2. Servicing-Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel. 3. Replacement parts- When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards. 4. Safety check-After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition. Product informationFor product information or assistance with product operation: In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e- mail consumerproducts@panasonic.com, or web site (http://www.panasonic.com). For assistance in the continental U.S.A. in obtaining repairs please ship the product to: Panasonic Services Company - Customer Servicenter Suite B 4900 George McVay Drive McAllen, TX 78503 In Puerto Rico contact the Panasonic Sales Company. Tel. (787) 750-4300 Fax. (787) 768-2910 When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached. IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE. Also, the purchaser will be responsible for shipping the unit to the above address. In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, web site (www.panasonic.ca), or an authorized Servicentre close to you. DATE OF PURCHASE DEALER NAME DEALER ADDRESS TELEPHONE NUMBER User memo: F0402NY1082 Marking sign is located on bottom of the unit.
