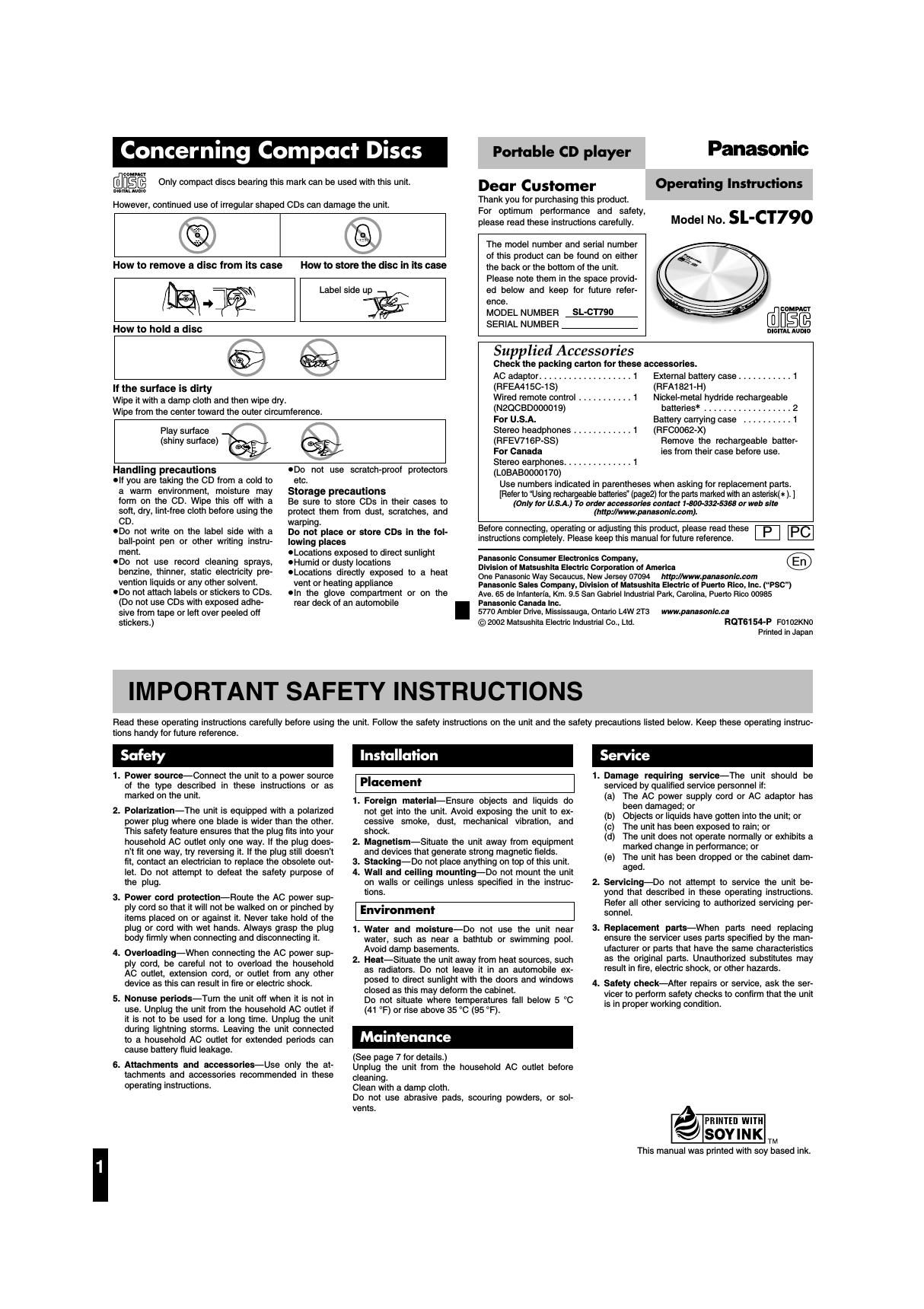

Recharge the batteries before use. Recharging procedure 1 Slide [OPEN ] to open the lid. 2 Open the battery lid and insert the two rechargeable batteries. Press to open in step 1. 3 Connect the AC adaptor. Recharging starts. The main unit's recharging lamp (CHG) lights and the battery indicator on the remote control scrolls. When the rechargeable batteries are fully recharged, the battery indicator disappears. (It takes approximately 5 hours to fully recharge the supplied rechargeable bat- teries.) 4 When recharging is complete, un- plug the AC adaptor from the house- hold AC outlet and the DC IN jack. Note! ≥Rechargeable batteries have a service life of approxi- mately 300 charge-discharge cycles. The batteries have reached the end of their operational life if they last for a noticeably shorter time after recharging, or if they cannot be recharged at all. ≥Recharging may only be performed when the unit is powered off. Remote control Remote controlMain unit Main unit 2 Using dry cell batteries (not included) The external battery case allows you to extend the max- imum playing time of the unit by loading an additional two LR6, AA, UM-3alkaline batteries. 1 Open the cover of the external bat- tery case and insert the batteries. 1 While pressing on the part marked PUSH 2Open the case. 2 Connect the case to the battery case terminal. For your reference: The unit can be powered by the batteries in the external battery case alone. No batteries need to be loaded in the player. If the cover of the external battery case comes loose: Insert the protrusions on the cover into the holes in the case. Note! ≥If rechargeable batteries and dry cell batteries are used together, make sure to use fully charged rechargeable batteries and new dry cell batteries. ≥Do not swing the unit around while the battery case is connected as this can cause damage to the connec- tion and may be a danger to those around you. ≥ The dry cell batteries should be changed when the unit is off. Power Supply Preparations Refer to the specifications (page 8) for information on operating times when using rechargeable batteries or dry cell batteries. CAUTION:Use only car adaptor, Model: SH-CDC9 manufac- tured by Matsushita Electric Industrial Co., Ltd. Using the AC adaptor Use only the included AC adaptor. Using other adap- tors can cause overheating which can lead to fire. Connect the AC adaptor supplied.Refer to step 3 in Using rechargeable batteries for connection instructions. Conserving powerThe AC adaptor consumes 2.1 W when the unit is turned off with [∫]. To save power when the unit is not to be used for a long time, unplug the AC adaptor from the household AC outlet. Note! Turn the unit off before connecting or disconnecting the AC adaptor. Using the car adaptor (not included) Be sure to obtain the car adaptor (SH-CDC9), available as an optional accesary. OPEN H O L D9 If the unit malfunctions or freezes during use, disconnect the power sources (the AC adaptor or batteries). Re-connect the power source and contin- ue operation. 2 PUSH 1 - + + - DC IN jack (KDC IN 4.5 V) Back panel of the unit Household AC outlet AC adaptor The car adaptor can be used to recharge the units bat- teries while in the car. Battery indicator The battery charge is shown in five levels on the display. When the battery indicator flashesPower is cut off a short while later. Recharge the rechargeable batteries or replace the dry cell batteries with new ones. OPEN CHG VOL OP EN C H G OPEN OPE OPEN C H G 3 1 + - 2 3 2 - + Removing batteriesPress the end of the battery (-) and lift out. If the battery lid comes looseInsert the protrusions on the lid into the holes on both sides of the compartment. Ensure the lid is correctly fit- ted before closing it. Incorrect fitting can scratch your CDs. ReplacementNickel-metal hydride rechargeable batteries(HHF-AZ01) PORTABLECDPLAYER SL-C T790 H O L D 2 1 Battery cover Insert the end marked (j) first. Battery case terminal The cases plug can only be inserted one way and this prevents it and the AC adaptor from being connected at the same time. Do not try to turn the plug after connecting it. PORTABLECDPLAYER SL-CT790 OPEN CHG VOL HOLD CHG VOL EQ MODE MEMORY Scrolls Recharging lamp Note! ≥When the unit is used with an AC adaptor, the battery indicator is not displayed. ≥The battery indicator may temporarily show a lower level or otherwise not operate correctly when search- ing and skipping, and also if the unit is used in an ex- tremely cold environment. ≥The length of time the unit will continue to operate be- tween when the battery indicator starts flashing and when the power is cut off differs depending on the type of batteries used. ≥The battery indicator may not be displayed correctly if rechargeable batteries other than those designated by Panasonic are used. EQ MODE MEMORY S-XBS EQ MODE MEMORY Full Empty OPEN O P EN C H G VOL - + 2 1 Using rechargeable batteries ≥The AC adaptor and rechargeable batteries may be- come warm while recharging is in progress. This is not a malfunction. ≥The rechargeable batteries should be changed when the unit is off. ≥Leaving the AC adaptor connected can cause the bat- teries to go flat. After recharging the batteries and dis- connecting the AC adaptor from the AC power outlet, ensure you disconnect the adaptor from the units [KDC IN 4.5 V ] terminal.
