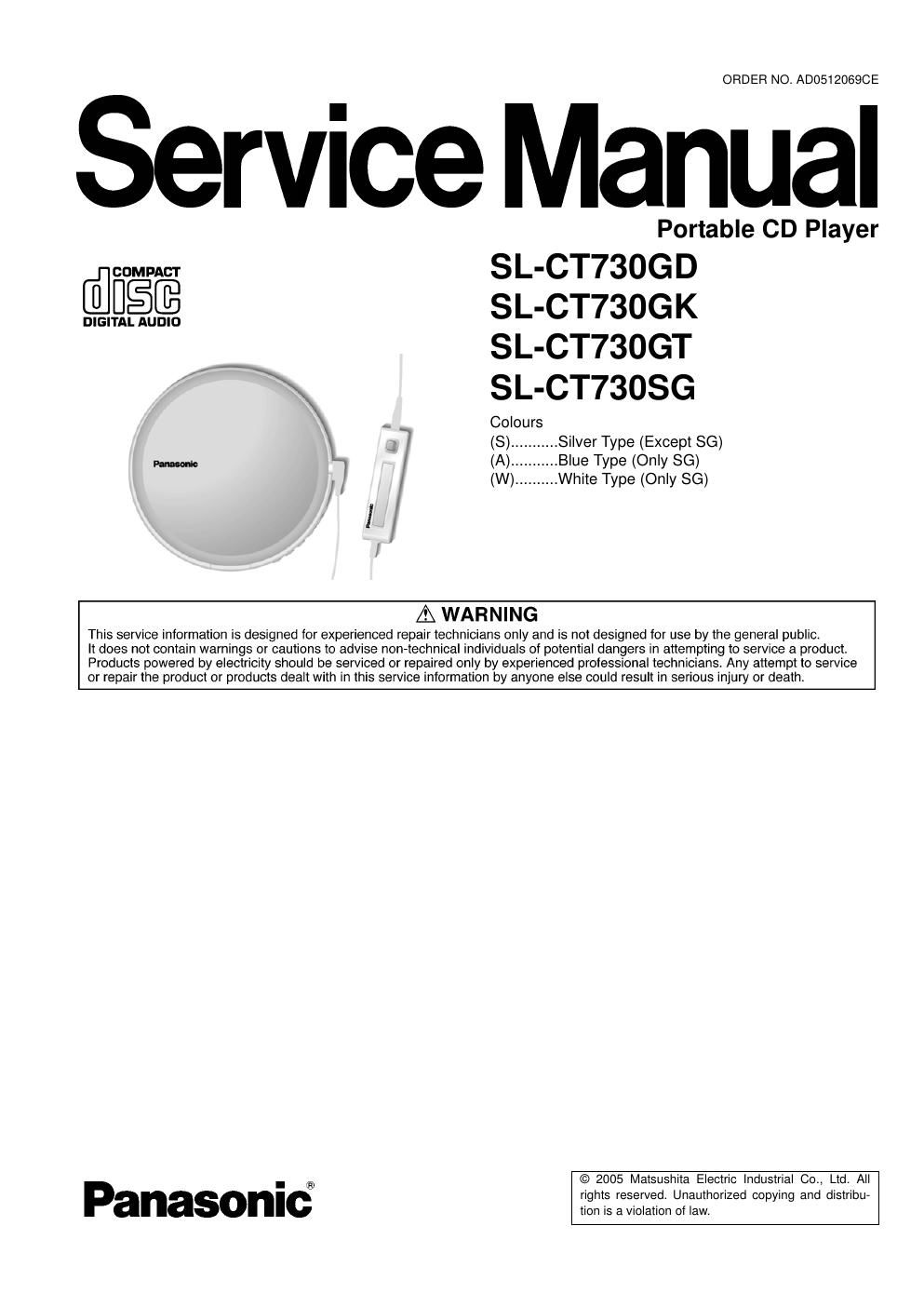

Page 1

ORDER NO. AD05120690E

Service Manual

COMPACT

DIGITAL AUDIO

ft

/

Portable CD Player
SL-CT730G D
SL-CT730GK
SL-CT730GT
SL-CT73OSG

Colours
(8). .Silver Type (Except 8G)
.Blue Type (Only SG)

.White Type (Only SG)

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic?

© 2005 Matsushita Electric Industrial (30., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a Violation ol law.

Page 2

TABLE OF CONTENTS
PAGE

1 Safety Precaution ------------------------------------------------- 3
1.1. Precaution of Laser Diode ------------------
1.2. Handling Precautions for Traverse Deck
1.3. Supply of Rechargeable Battery as

Replacement Parts ---------------------------
1.4. Caution in use of Rechargeable Battery
2 Service Navigation ---------------------
2.1. About Lead Free Solder (PbF)-

3 Specifications -----------------------------------

4 Location of Controls and Components-
4.1. Accessories ------------

4.2. Location of Controls -

5 Service Mode ------------------------------------
5.1. Display of Self-Diagnostic Function

6 Troubleshooting Guide- --7
6.1. Checking the Operation Problems on the

Traverse Deck (Optical Pick-up) ----------------------- 7

7 Disassembly and Assembly Instructions-
7.1. Checking torthe PCB ---------------------
7.2. Replacement for the traverse motor---
7.3. Replacement for the optical pick-up---
7.4. Replacement for the spindle motor-

8 Measurements and Adjustments ---------
8.1. Automatic Adjustment Results Display

Function (Self-Check Function) ---------------------- 13

PAGE
