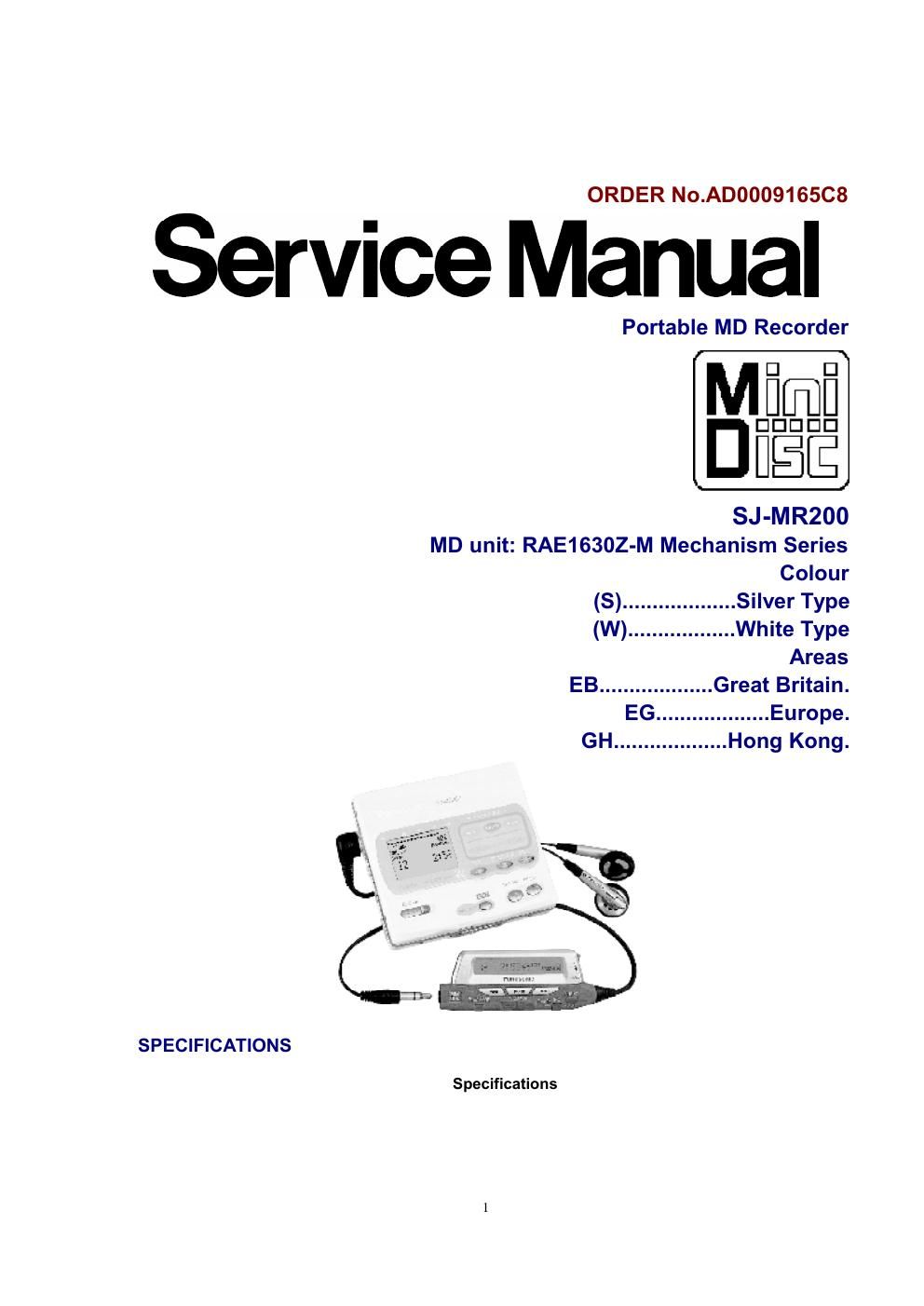

Page 1
Audio System:MiniDisc digital audio system Laser:Semiconductor laser (=780 nm) Sampling frequency:44.1 kHz Coding:Adaptive Transform Acoustic Coding (ATRAC) No. of channels:2 (left and right, stereo) 1 (monaural) Frequency response:20 Hz-20 kHz (+0 dB, -6dB) Wow and flutter:Below measurable limit General Input terminal OPT/LINE IN jack Impedance:47k Input level:SENS H: 178mV SENS L: 500mV MIC jack Impedance:600 Input level:0.4mV Output terminal Output Jack:Phones, 22 Power output:3.5 mW+3.5 mW Power supply Rechargeable battery:DC 1.2V (included rechargeable battery) Battery:DC 1.5V (One LR6, AA, UM-3 battery) AC adaptor:DC 1.8V (included AC adaptor) Dimensions (WxHxD) Cabinet dimensions:78.2x71.6x16.8 mm incl.projecting parts:79.9x73.6x18.6 mm Weight:120 g (with battery) 94 g (without battery) Play time (When used in hold mode, at 25°C, on a flat, stable surface) Battery type:Play timeRecord time Rechargeable:About 15 hoursAbout 7 hours Panasonic alkaline:About 21 hoursAbout 3 hours Both together:About 38 hoursAbout 15 hours Charger Input:AC 220 V (GH) / AC220-230 V (EG) / AC 230-240V (EB), 50/60 Hz 8W Recharging time:About 3 hours 2
Page 2
Notes: - The play time may be less depending on the operating conditions. - Specifications are subject to charge without notice. Weight and dimensions are approximate. 2000 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.1. Accessories - Rechargeable battery with carrying case .............1pc. (RFKFHFAZ01EM) - External battery case...............................................1pc. (RFA1537-S) - Carrying case.........................................................1pc. (RFC0056-K) - Wired remote control.............................................1pc. (N2QCBD000007) - Stereo earphones..................................................1pc. (RFEV335P-SA) - Connection cable..................................................1pc. (K2KA39B00001) For EB area - AC adaptor.............................................................1pc. (RFEA003B-S) For EG area - AC adaptor.............................................................1pc. (N0JCAD000001) For GH area - AC adaptor.............................................................1pc. (RFEA004H-S) 2. Precation of Laser Diode 3
