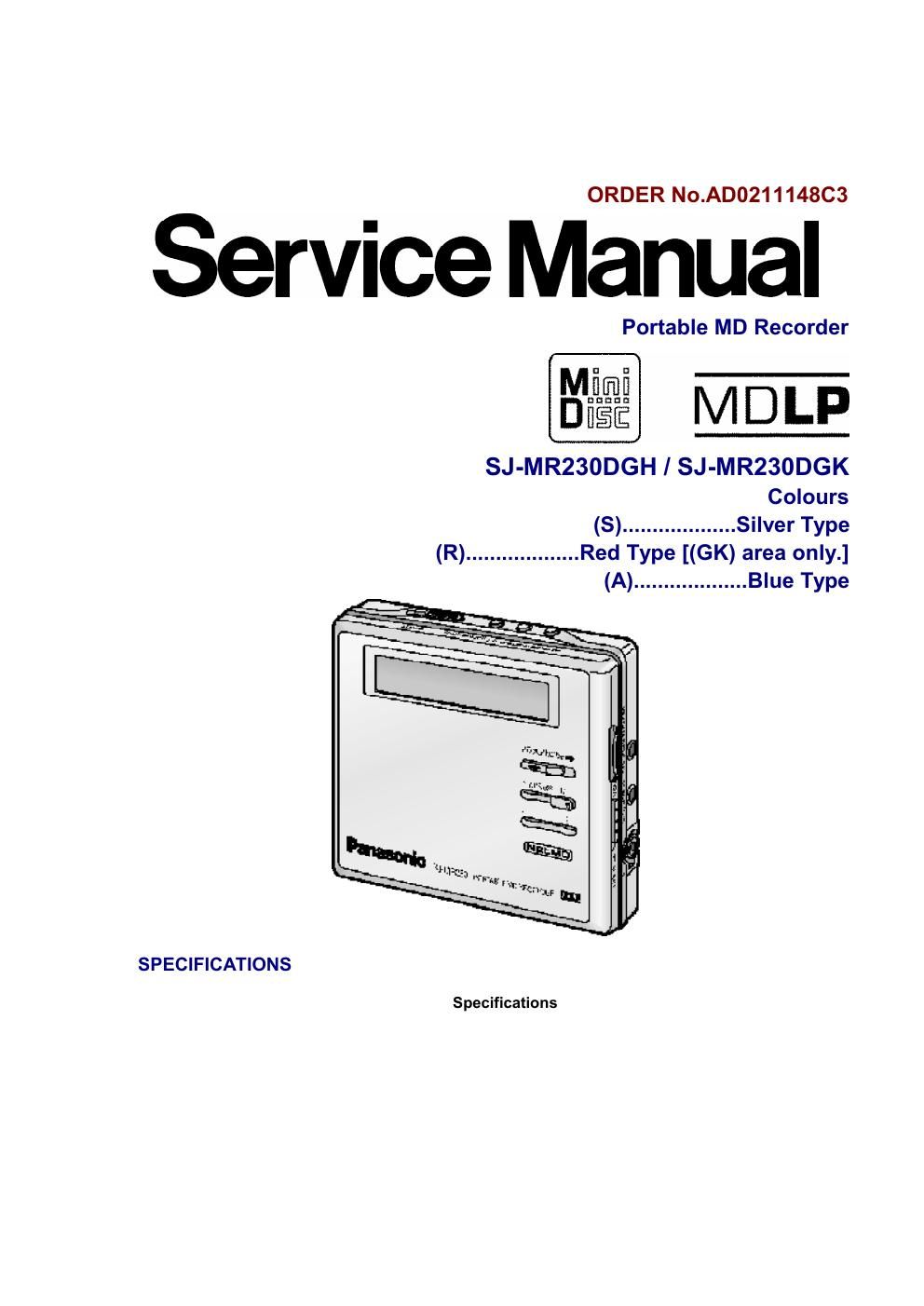

Page 1
Audio System:MiniDisc digital audio system Laser:Semiconductor laser (=780 nm) Sampling frequency:44.1 kHz Coding:Adaptive Transform Acoustic Coding (ATRAC / ATRAC3) No. of channels:2 (left and right, stereo) 1 (monaural, play only) Frequency response:20 Hz-20 kHz (+0 dB, -8dB) Wow and flutter:Below measurable limit General Input terminal OPT/LINE IN jack Impedance:22k Input level:SENS H: 178mV SENS L: 500mV MIC jack Impedance:600 Input level:SENS H: 0.4mV SENS L: 2.5mV Output terminal Head phone Jack:3.0 mW+3.0 mW, 32 Speakers (Cradle):0.9 mW+0.9 mW, 8 Speakers impedance:8 Power supply Rechargeable battery:DC 1.2V (included rechargeable battery) Battery:DC 1.5V (One LR6, AA, UM-3 battery) AC adaptor:DC 4.5V (included AC adaptor) Dimensions (WxHxD) Cabinet dimensions:78.2x71.6x17.9 mm incl.projecting parts:80.4x74.1x17.9 mm Weight:121 g (with battery) 94 g (without battery) Play time (When used in hold mode, at 25°C, on a flat, stable surface) Battery type:Play timeRecord time Rechargeable Normal:About 27 hoursAbout 13 hours LP2:About 35 hoursAbout 18 hours LP4:About 42 hoursAbout 23 hours Panasonic alkaline Normal:About 42 hoursAbout 8 hours LP2:About 59 hoursAbout 13 hours
Page 2
LP4:About 70 hoursAbout 21 hours Both together NormalAbout 77 hoursAbout 35 hours LP2:About 100 hoursAbout 50 hours LP4:About 117 hoursAbout 62 hours Notes: - The play time may be less depending on the operating conditions. - Specifications are subject to charge without notice. Weight and dimensions are approximate. 2002 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.1. Accessories - Rechargeable battery assy....................................1pc. (RFKFFAZ01EM1) - Rechargeable batt. case.........................................1pc. (RFA0475-Q) - External battery case..............................................1pc. (RFA1537-S2) - Carrying case.........................................................1pc. (RFC0069-H) - Stereo earphones...................................................1pc. (L0BAB0000174) - Connection cable...................................................1pc. (K2KA39B00001) - Clip type headphones............................................1pc. (L0BAE0000026) - Optical fiber cable..................................................1pc. (K7CXJCA00004) - Wired remote control..............................................1pc.
