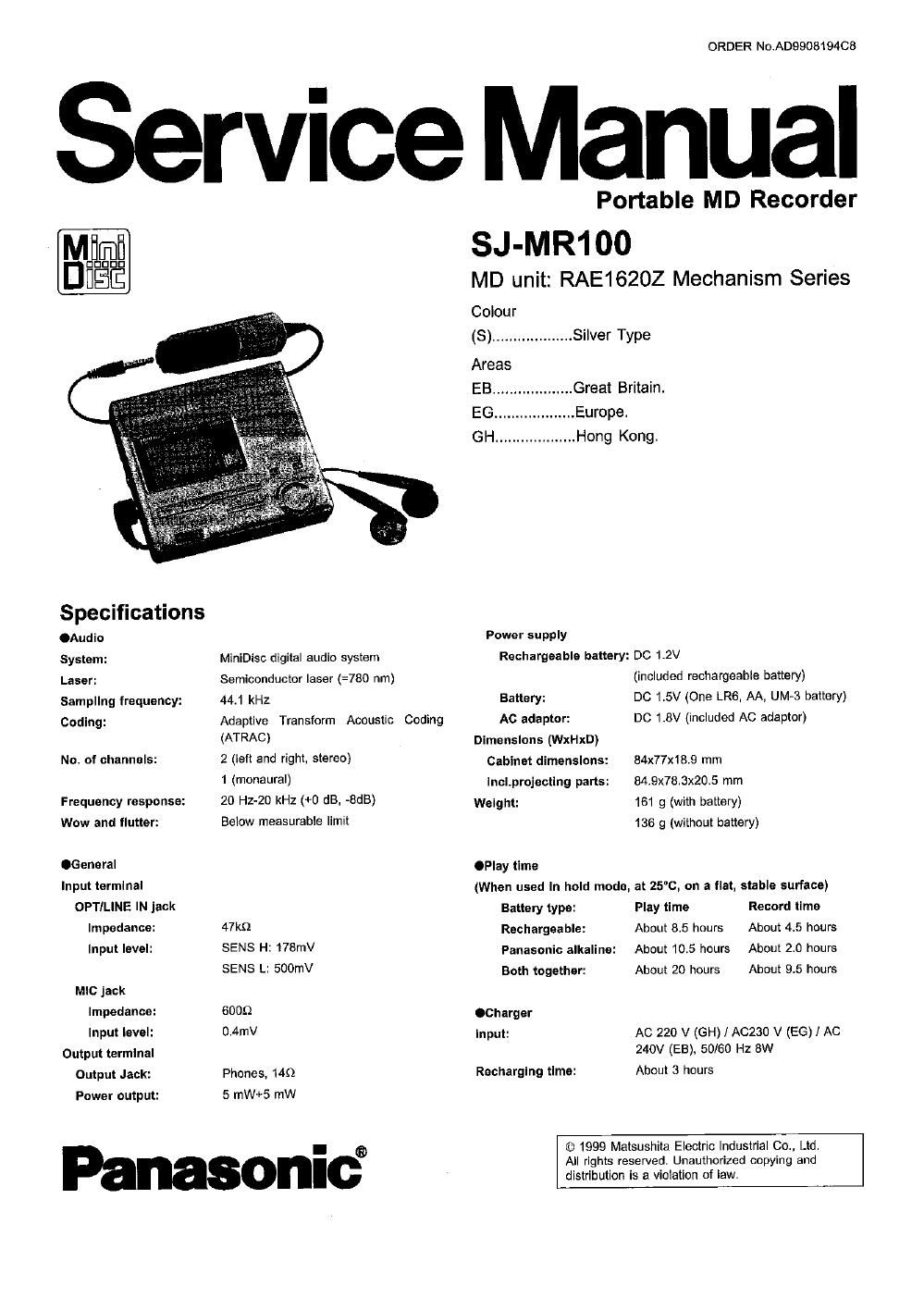

Page 1

ORDER No.AD9908194CS

Service Manual

Portable MD Recorder
SJ-MR100

MD unit: RAE16202 Mechanism Series

Colour
(8) ................... Silver Type
Areas
EB ................... Great Britain.
EG ................... Europe.
GH ................... Hong Kong.
Specifications
OAudlo Power supply
System: MlnlDisc digital audio system Rechargeable battery: DC 1.2V
Laser: Semiconductor laser (=780 nm) (included rechargeable battery)
sampling frequency: 441 kHz Battery: DC 1.5V (One LR6, AA, UM-3 battery)
Coding: Adaptive Transform Acoustic Coding Ac adaptor: DC 1.8V (included AC adaptor)
(ATRAC) Dimensions (WxHxD)
No. of channels: 2 (left and right, stereo) Cabinet dimenslons: 84x77x18.9 mm
1 (monaural) Incl.projecting parts: 84.9x78.3x20.5 mm
Frequency response: 20 Hz-20 kHz (+0 dB. -8dB) Weight: 161 g (with battery)
Wow and flutter: Below measurable limit 136 9 (without baﬁery)
.General OPlay ﬁme
'"PU ermlna' (When used In hold mode, at zsic, on a flat, stable surface)
OPTIL'NE 'N jack Battery type: Play time Record lime
Impedance: 47kg] Rechargeable: About 8.5 hours About 4.5 hours
PM level: SENS 2 178mV Panasonic alkaline: About 10.5 hours About 2.0 hours
SENS L: 500mV Both together: About 20 hours About 9.5 hours
MIC jack
Impedance: 6009 .Charger
"Wt level: 0,4mv Input: AC 220 v (GH) / A0230 v (EG) / Ac
Output terminal 240V (EB), 50/60 Hz 8W
Output Jack: Phones, 1451 Recharging time: About 3 hours
Power output: 5 mW+5 mW
